DTC C1266: Valve Relay Power Supply

Diagnostic Procedure

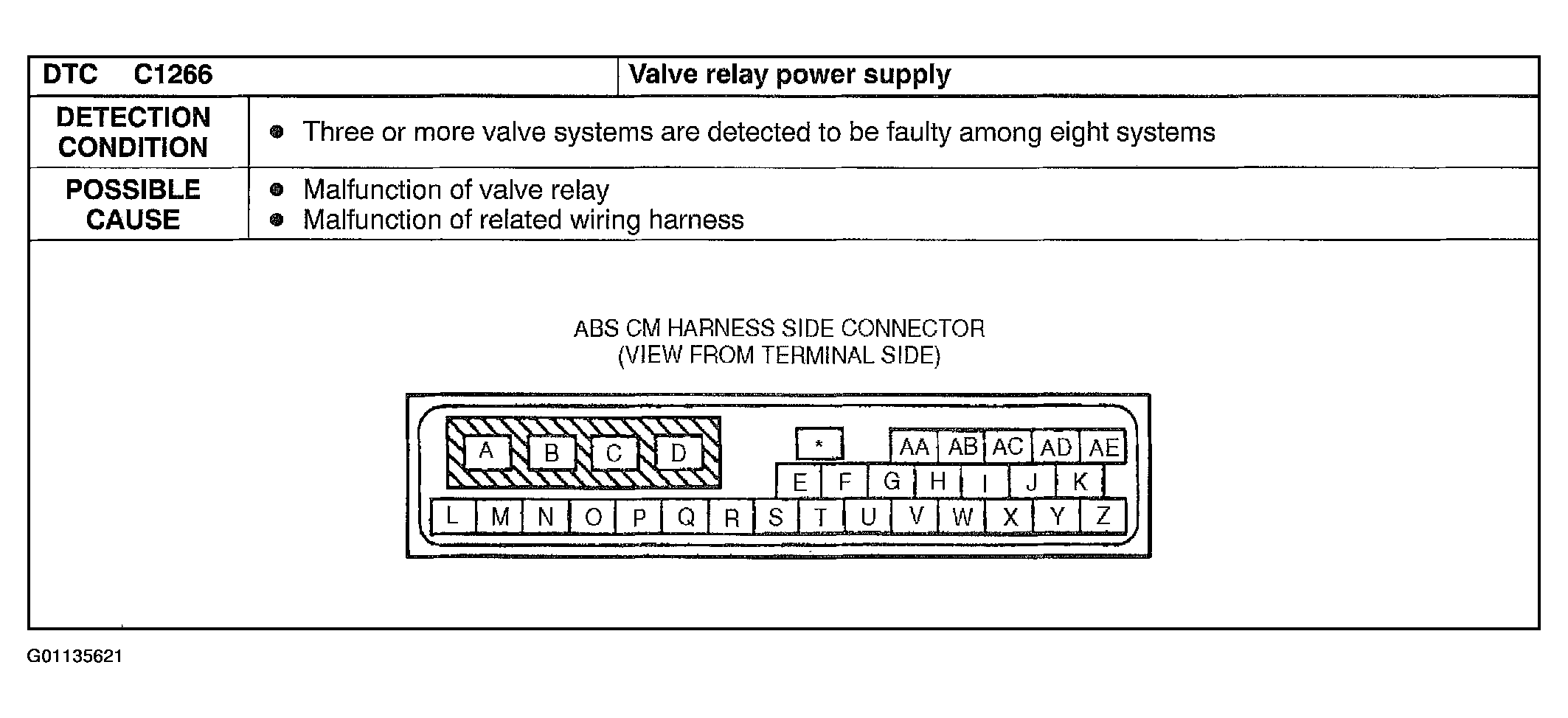

Fig 1: DTC C1266 Detection Condition & Possible Causes
G01135621Courtesy of MAZDA MOTORS CORP.

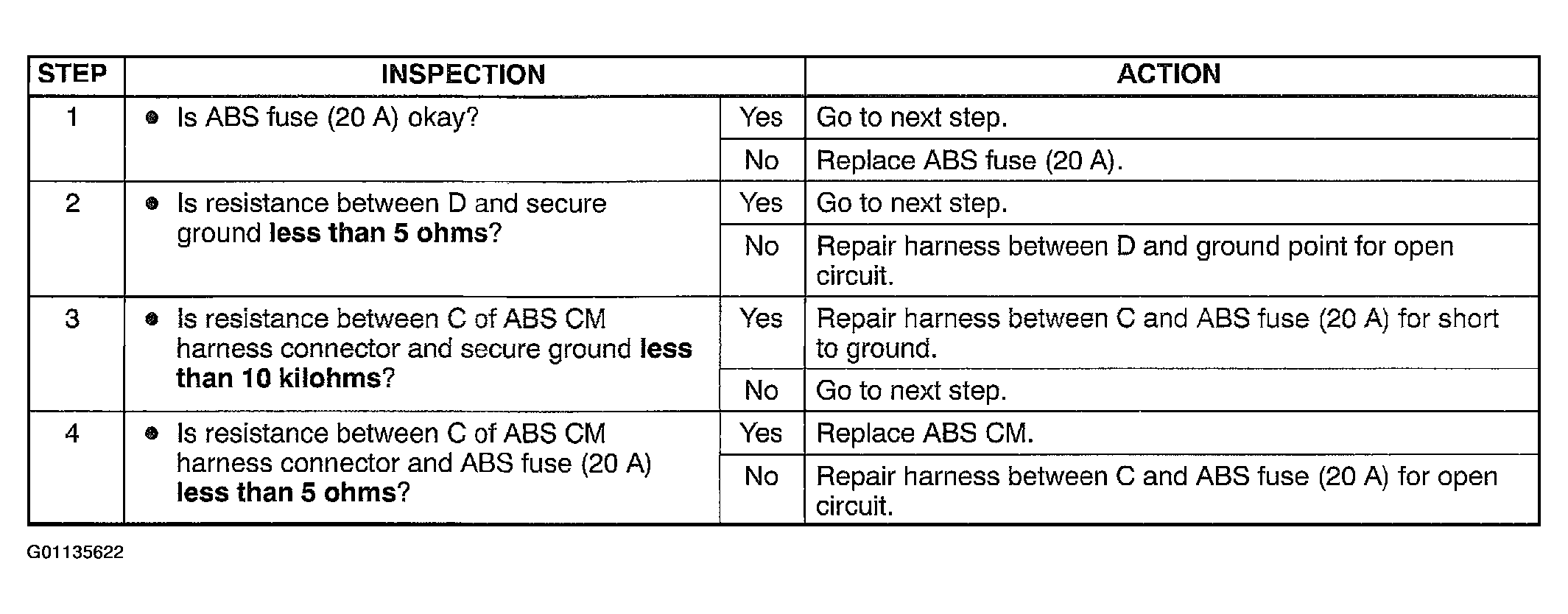

Fig 2: DTC C1266 Inspection & Action
G01135622Courtesy of MAZDA MOTORS CORP.
