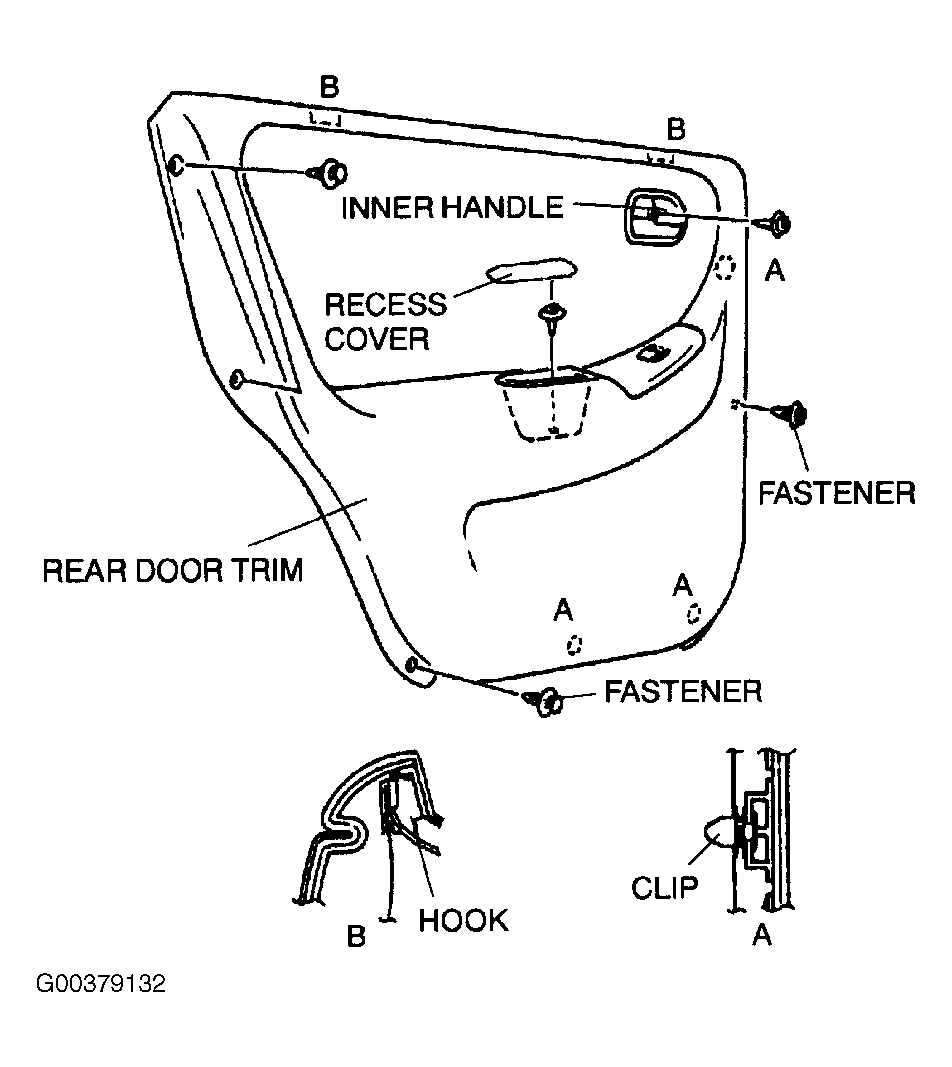

Rear Door Trim
- Disconnect the negative battery cable if equipped with a power window.
- Remove the regulator handle if equipped with a manual window.
- Remove the screw to remove the inner handle.
Courtesy of MAZDA MOTORS CORP.
- Turn over the recess cover to remove the screw.
- Remove the fasteners.
- Pull the rear door trim to disengage clips A from the body.
- Pull the rear door trim upward to disengage hooks B from the body.
- Disconnect the connector if equipped with a power window.
- Install in the reverse order of removal.
