Mirror Adjustment

  1. Disconnect the negative battery cable.
  2. Remove the front door trim.
  3. Partially peel off the front door screen.
  4. Disconnect the power outside mirror connector.
  5. Apply battery positive voltage to the power outside mirror terminals and check the operation of the power outside mirror.
    • If not as specified, replace the power outside mirror.

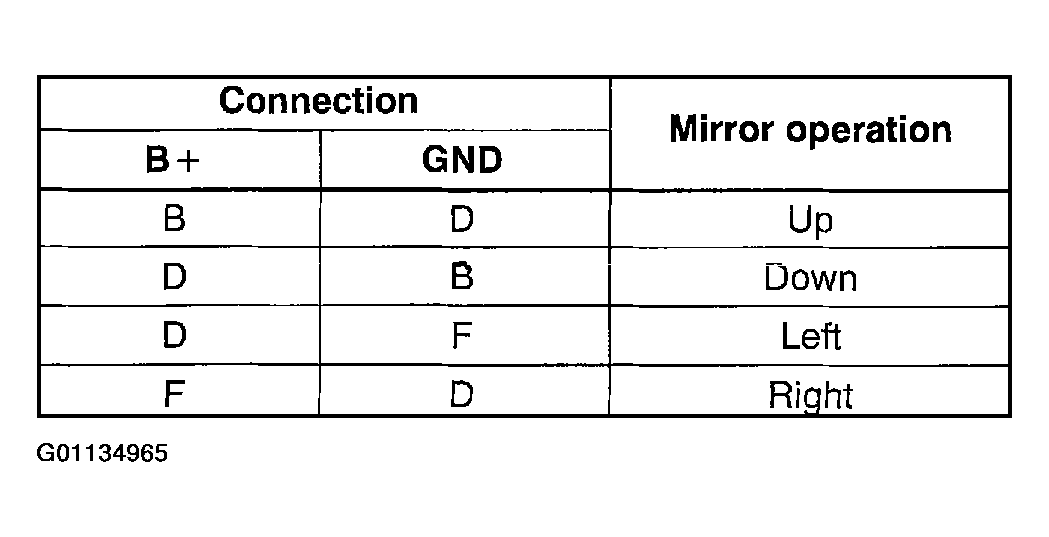

    Fig 1: Mirror Operation Table
    G01134965Courtesy of MAZDA MOTORS CORP.
    Fig 2: Identifying Mirror Circuit & Connector View
    G01134966Courtesy of MAZDA MOTORS CORP.
