Output Shaft Speed (OSS) Sensor: Installation

NOTE: Apply a light coat of petroleum jelly to the O-ring before installation.
  1. Install the OSS sensor.
    1. Connect the OSS sensor electrical connector.

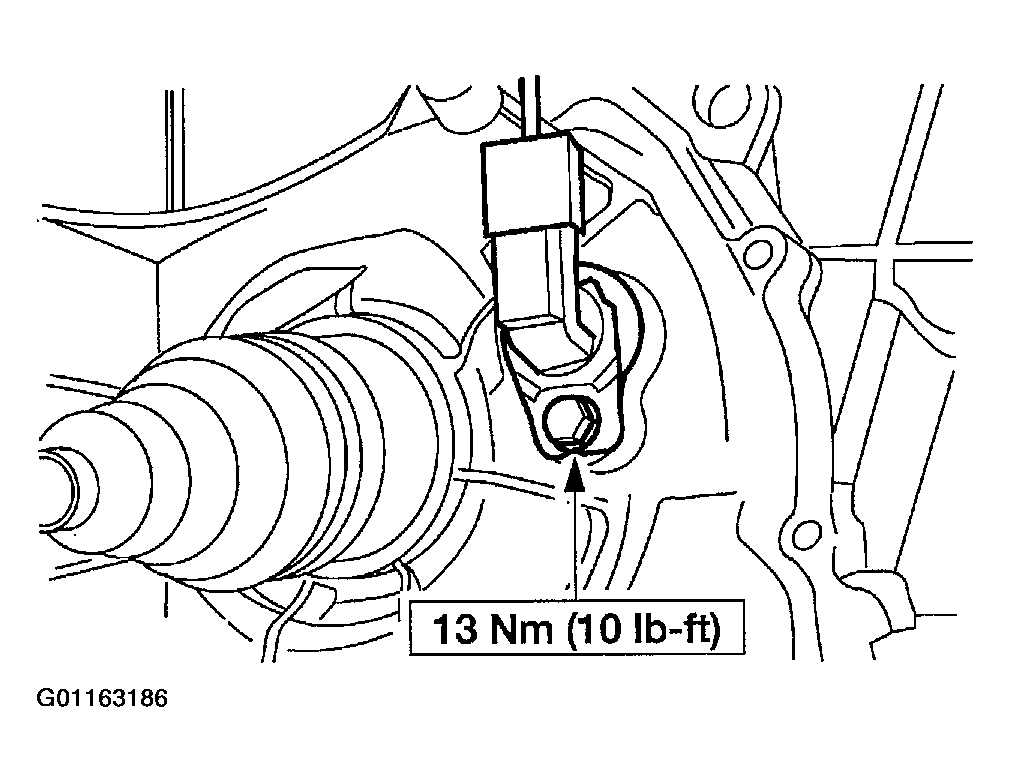

    Fig 1: Installing OSS Sensor
    G01163186
  2. Install the splash shield.

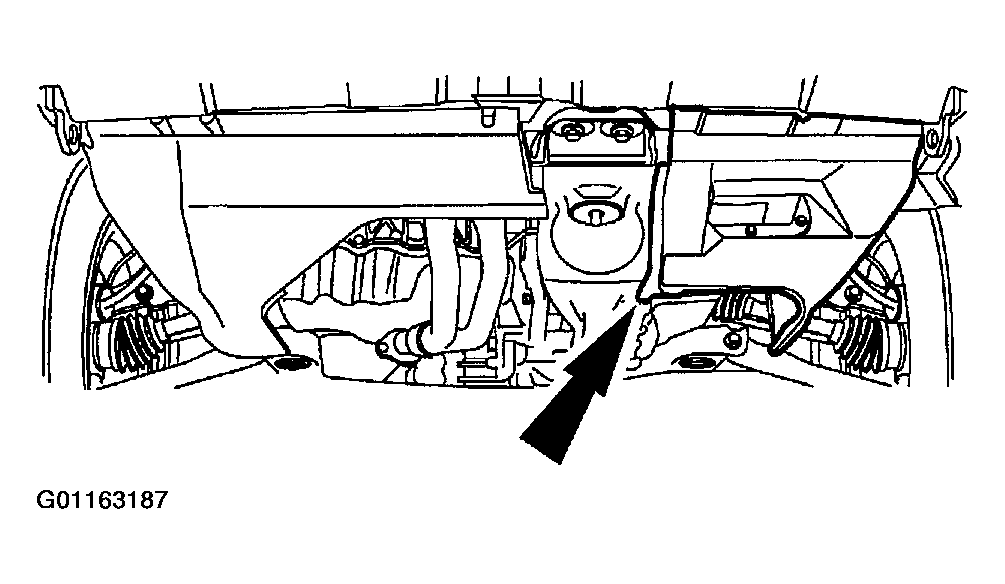

    Fig 2: Installing Splash Shield
    G01163187
  3. Install the LH front wheel.
  4. Lower vehicle.
  5. Check the transaxle fluid level, add fluid as necessary using MERCON(R) Multi-Purpose (ATF) Transaxle Fluid.
  6. Start the engine and move the transaxle range selector lever through all gear positions.
