Door Lock Control Module

Remove lower instrument panel cover. Measure voltage at door lock control module terminals. See Fig 1 and Fig 2 . Disconnect door lock control module connector before inspecting for continuity at terminals "F", "H", "M" and "N".
If not as specified, inspect parts listed under "Action" column of test and related wiring harnesses. If parts and wiring harnesses are okay, but system still does not work properly, replace door lock control module.

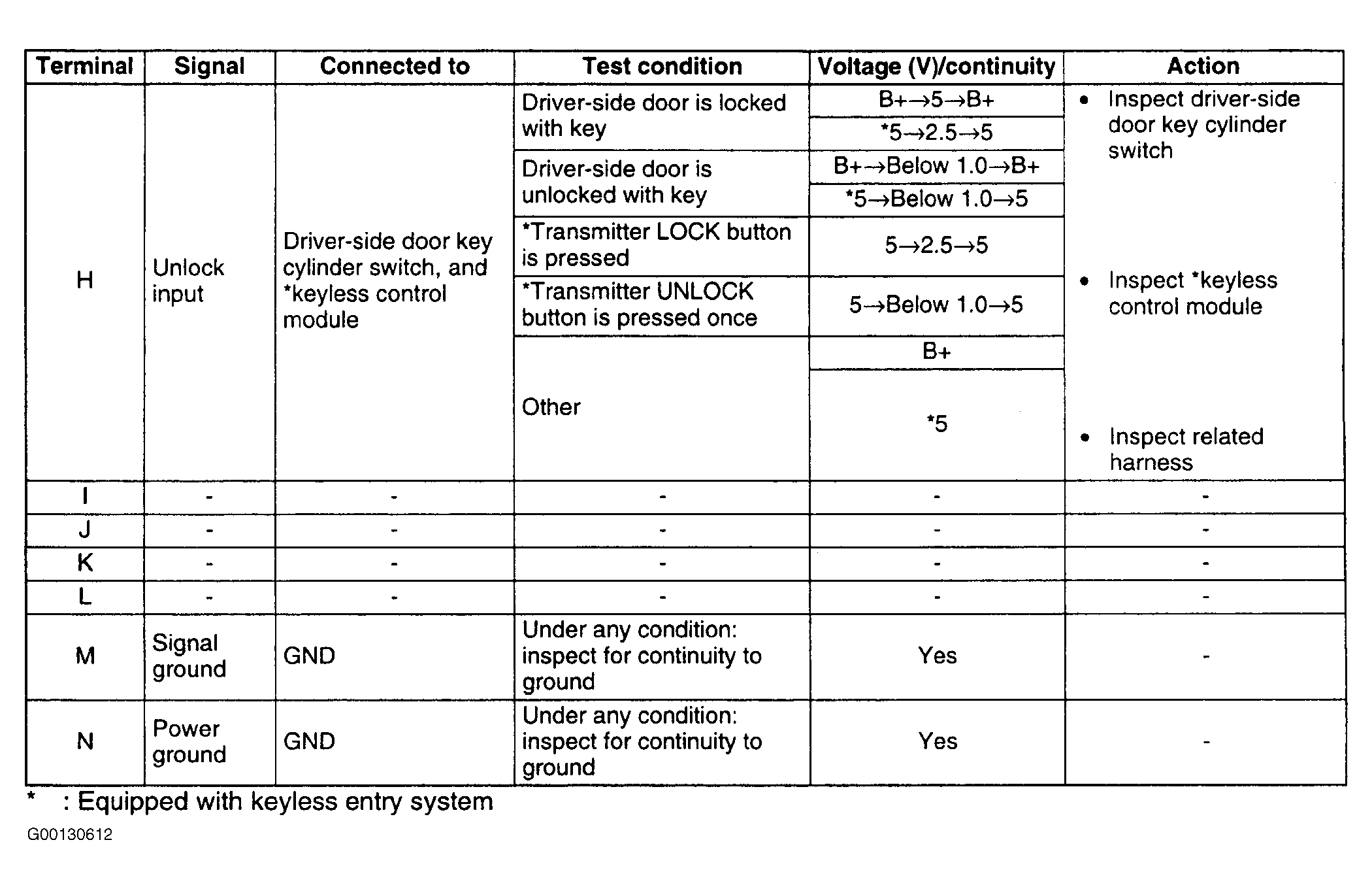

Fig 1: Testing Door Lock Control Module (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Testing Door Lock Control Module (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
