Driver-Side Air Bag Module: Installation

WARNING: This page is about a different car, the 2002 Mazda Protege5 and 2002 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. Tighten air bag module retaining bolts to specification. See TORQUE SPECIFICATIONS .
Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Check AIR BAG warning light to ensure system is functioning properly. See SYSTEM OPERATION CHECK .

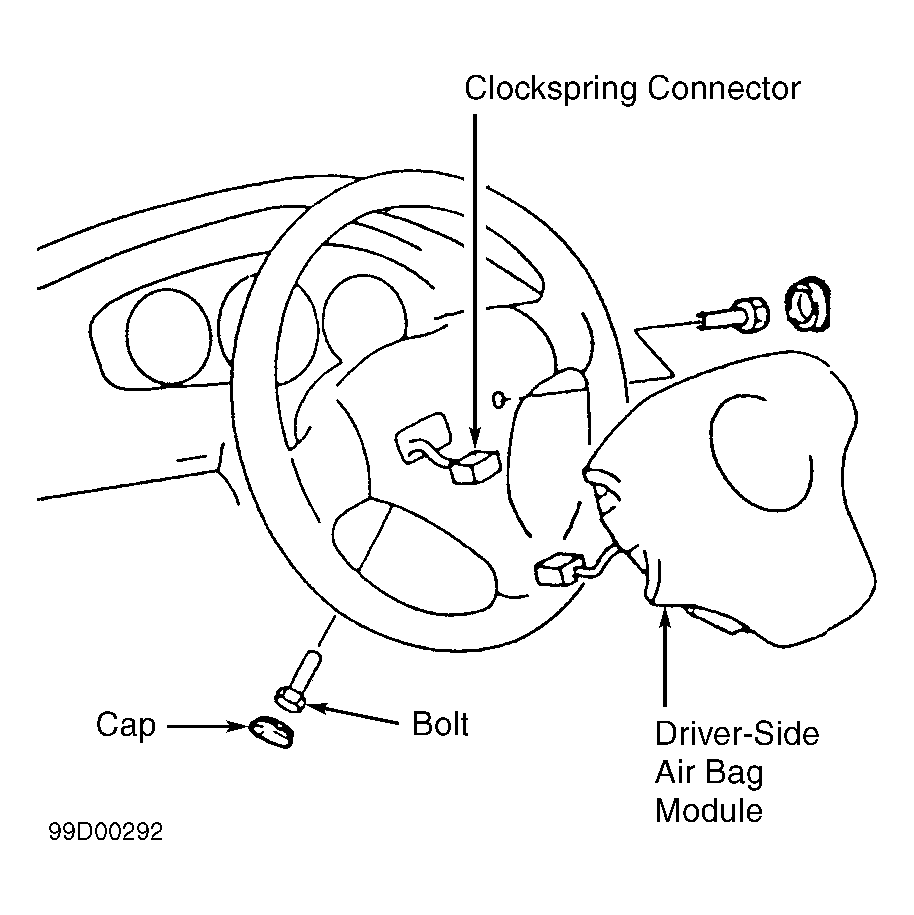

Fig 1: Removing Driver-side Air Bag Module (3-spoke Shown; 4-spoke Steering Wheel Is Similar)

Courtesy of MAZDA MOTORS CORP.
