Flasher Unit
WARNING: This page is about a different car, the 1999 Mazda Protege, 1999 Mazda Millenia, 1999 Mazda MX-5 Miata, and 1999 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
- Locate flasher unit behind left side of instrument panel, near steering column. Leave flasher unit harness connector attached unless otherwise specified. Using DVOM, backprobe at specified terminals of flasher unit harness connector while performing appropriate test condition. See appropriate FLASHER UNIT TEST table. See Fig 1 or Fig 2
.
- If voltage measurements or continuity are not as specified, check related components and wiring. See WIRING DIAGRAMS and appropriate component tests. If related components and wiring are okay, but system is still not functioning properly, replace flasher unit.
FLASHER UNIT TEST (MILLENIA)
| Terminal (Signal)/Test Condition |
Value |
| "A" (Ground)/At All Times |
|
| "C" (Hazard Switch) |
| Hazard Switch Off |
Battery Voltage |
| Hazard Switch On |
Zero Volts |
| "D" (Left Turn Signal Light) |
| Ignition On; Left Turn Signal On |
Alternates Between Zero Volts & Battery Voltage |
| Ignition On; Other |
Zero Volts |
| "E" (Right Turn Signal Switch) |
| Ignition On; Right Turn Signal On |
Battery Voltage |
| Ignition On; Other |
Zero Volts |
| "F" (Left Turn Signal Switch) |
| Ignition On; Left Turn Signal On |
Battery Voltage |
| Ignition On; Other |
Zero Volts |
| "G" (Right Turn Signal Light) |
| Ignition On; Right Turn Signal On |
Alternates Between Zero Volts & Battery Voltage |
| Ignition On; Other |
Zero Volts |
| "H" (Voltage Supply) Constant |
Battery Voltage |

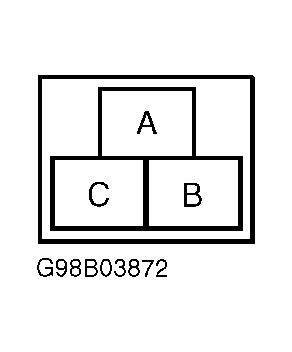

FLASHER UNIT TEST (MX-5 MIATA & PROTEGE)
| Terminal (Signal)/Test Condition |
Value |
| "A" (Flasher Unit Output) Hazard Switch On |
Alternates Between Zero Volts & Battery Voltage |
| "A" (Flasher Unit Output) Hazard Switch Off |
| Ignition Switch On |
Battery Voltage |
| Ignition Switch At LOCK Or ACC |
Zero Volts |
| "B" (Ground)/At All Times |
|
| "C" (Voltage Supply) Hazard Switch On |
Battery Voltage |
| "C" (Voltage Supply) Hazard Switch Off |
| Ignition Switch On |
Battery Voltage |
| Ignition Switch At LOCK Or ACC |
Zero Volts |
FLASHER UNIT TEST (626)
| Terminal (Signal)/Test Condition |
Value |
| "A" (Voltage Supply)/Constant |
Battery Voltage |
| "B" (Ground)/At All Times |
|
| "C" (Hazard Switch) |
| Hazard Switch Off |
Battery Voltage |
| Hazard Switch On |
Zero Volts |
| "D" (Right Turn Signal Switch) |
| Ignition On; Right Turn Signal On |
Battery Voltage |
| Other |
Zero Volts |
| "E" (Right Turn Signal Light) |
| Ignition On; Right Turn Signal On |
Alternates Between Zero Volts & Battery Voltage |
| Other |
Zero Volts |
| "F" (Left Turn Signal Switch) |
| Ignition On; Left Turn Signal On |
Battery Voltage |
| Other |
Zero Volts |
| "H" (Left Turn Signal Light) |
| Ignition On; Left Turn Signal On |
Alternates Between Zero Volts & Battery Voltage |
| Other |
Zero Volts |
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
