DTC 22: Fuel Level Signal

WARNING: This page is about a different car, the 2002 Mazda Protege5 and 2002 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

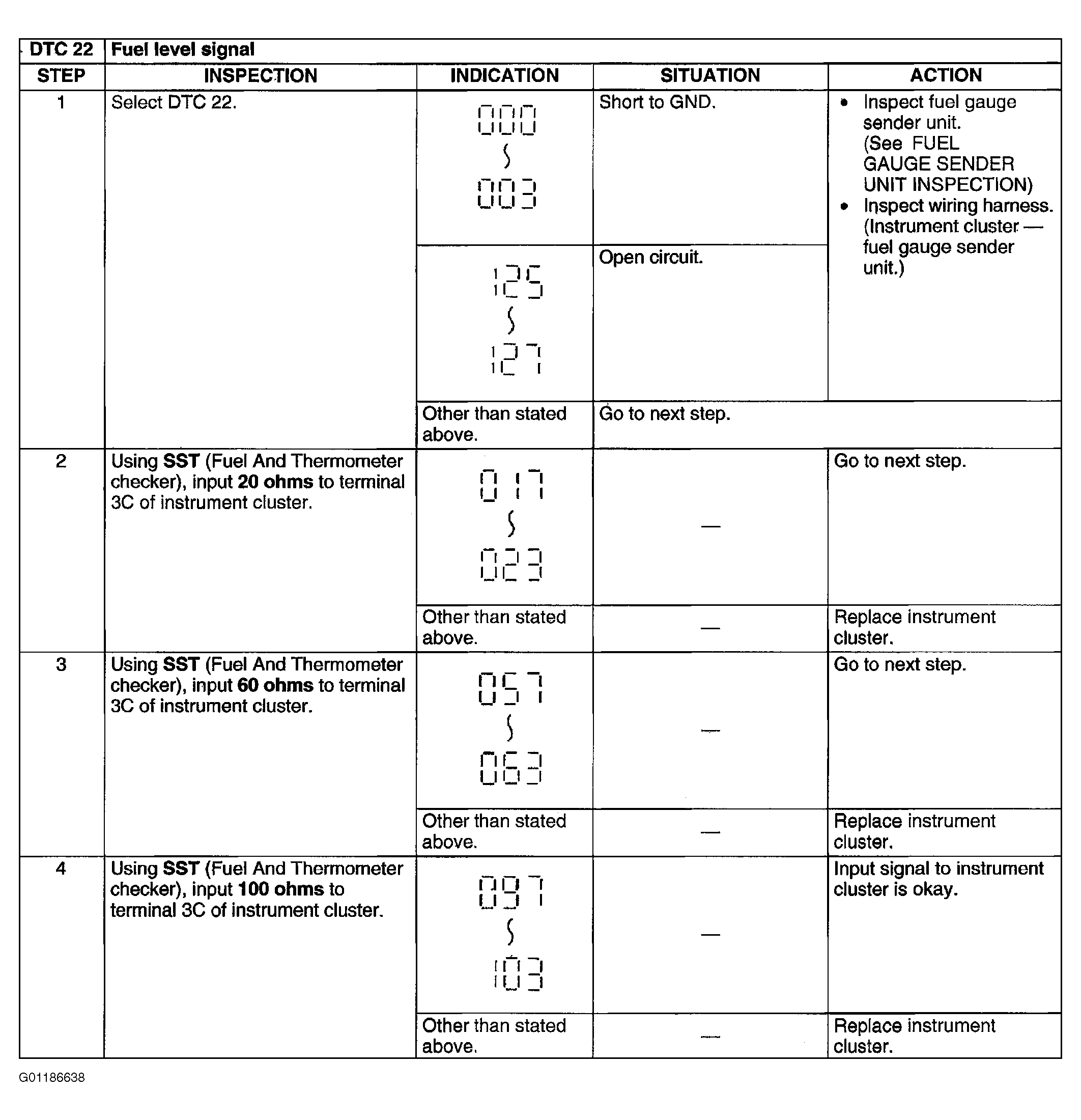

Fig 1: DTC 22: Fuel Level Signal
G01186638Courtesy of MAZDA MOTORS CORP.
