Home >> Mazda >> 2001 >> Protege DX, Automatic >> Repair and Diagnosis >> Brakes >> Anti-Lock/Traction Control System >> Symptom Troubleshooting >> Quick Diagnosis Chart

Quick Diagnosis Chart

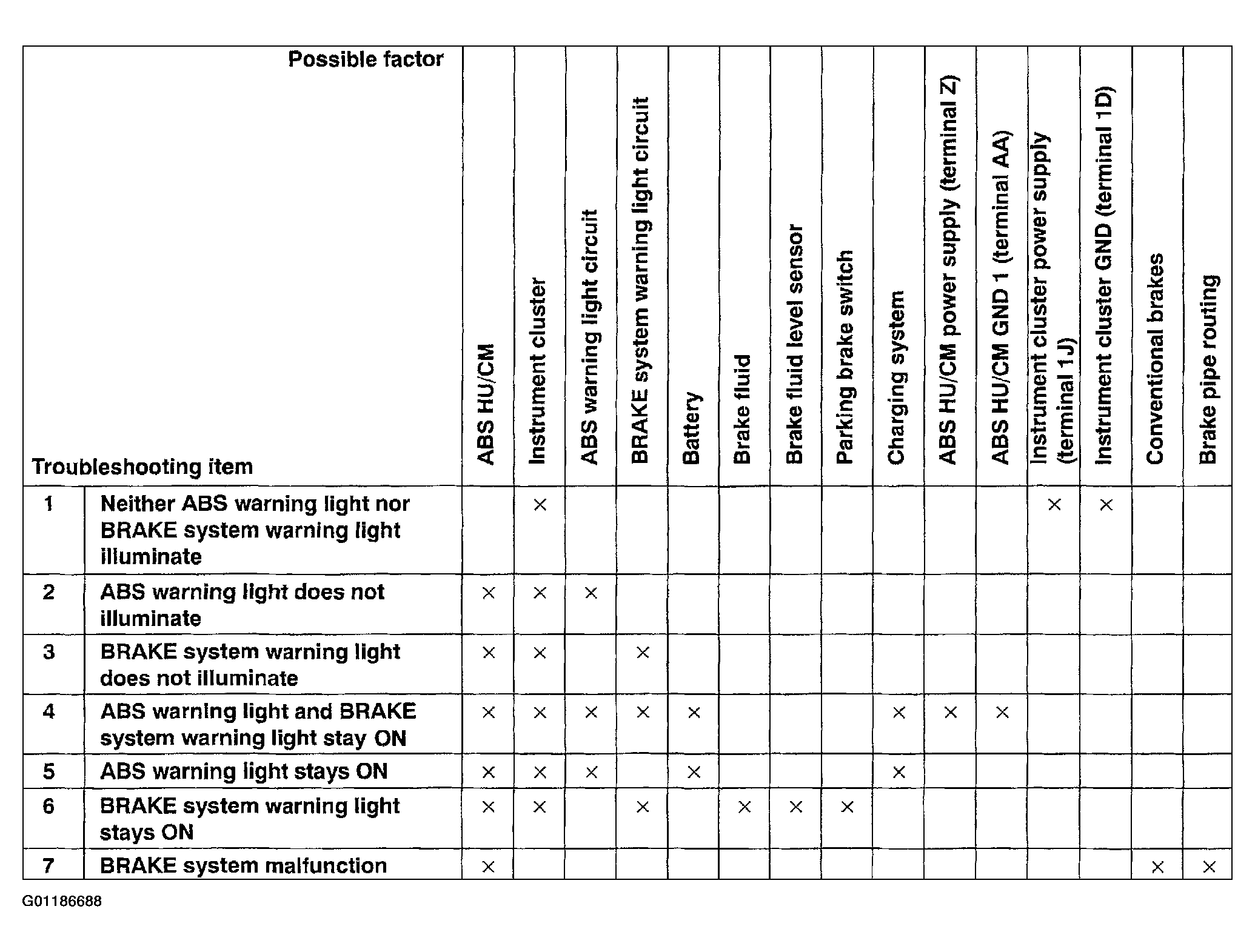

Fig 1: ABS Quick Diagnosis Chart

G01186688

Courtesy of MAZDA MOTORS CORP.
