No. 7 Brake System Malfunction
No. 7 Brake System Malfunction

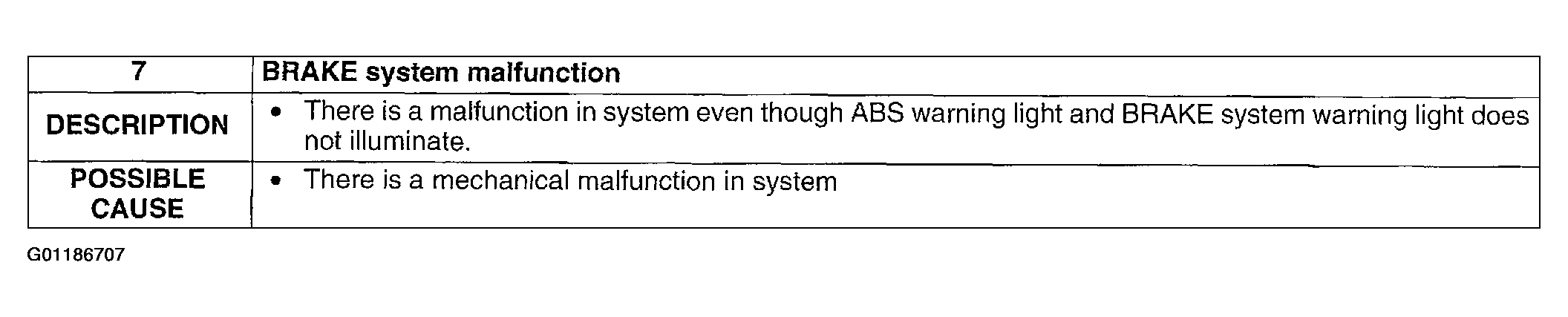

Fig 1: No. 7 Brake System Malfunction Description & Possible Causes
Courtesy of MAZDA MOTORS CORP.

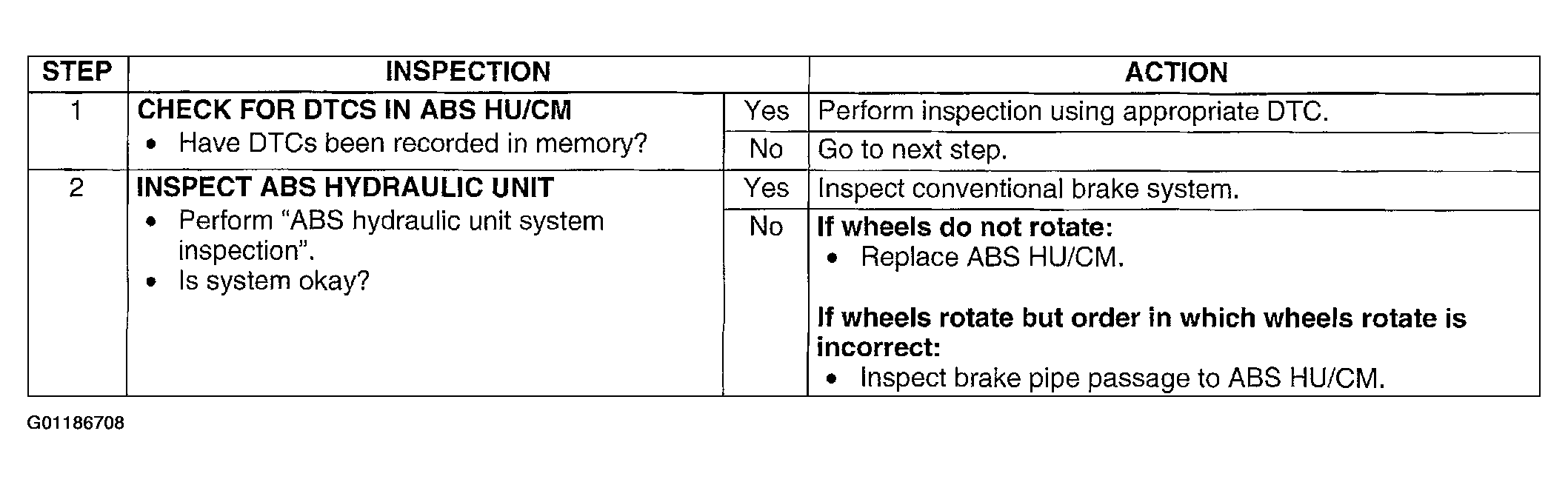

Fig 2: No. 7 Brake System Malfunction Diagnostic Procedure
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
