Connector Identification
Connector Identification
To identify connectors, see
Fig 1
.

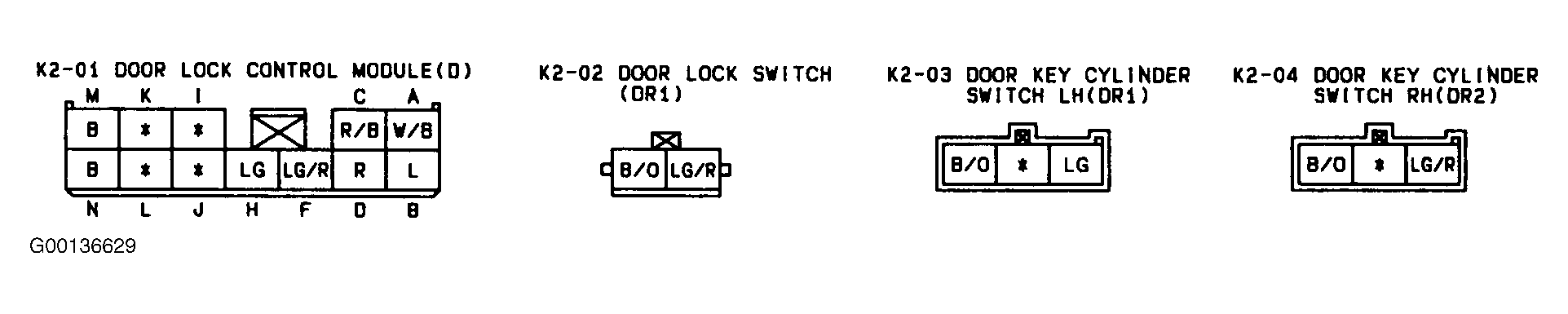

Fig 1: Identifying Power Door Lock System Connectors
Courtesy of MAZDA MOTORS CORP.
