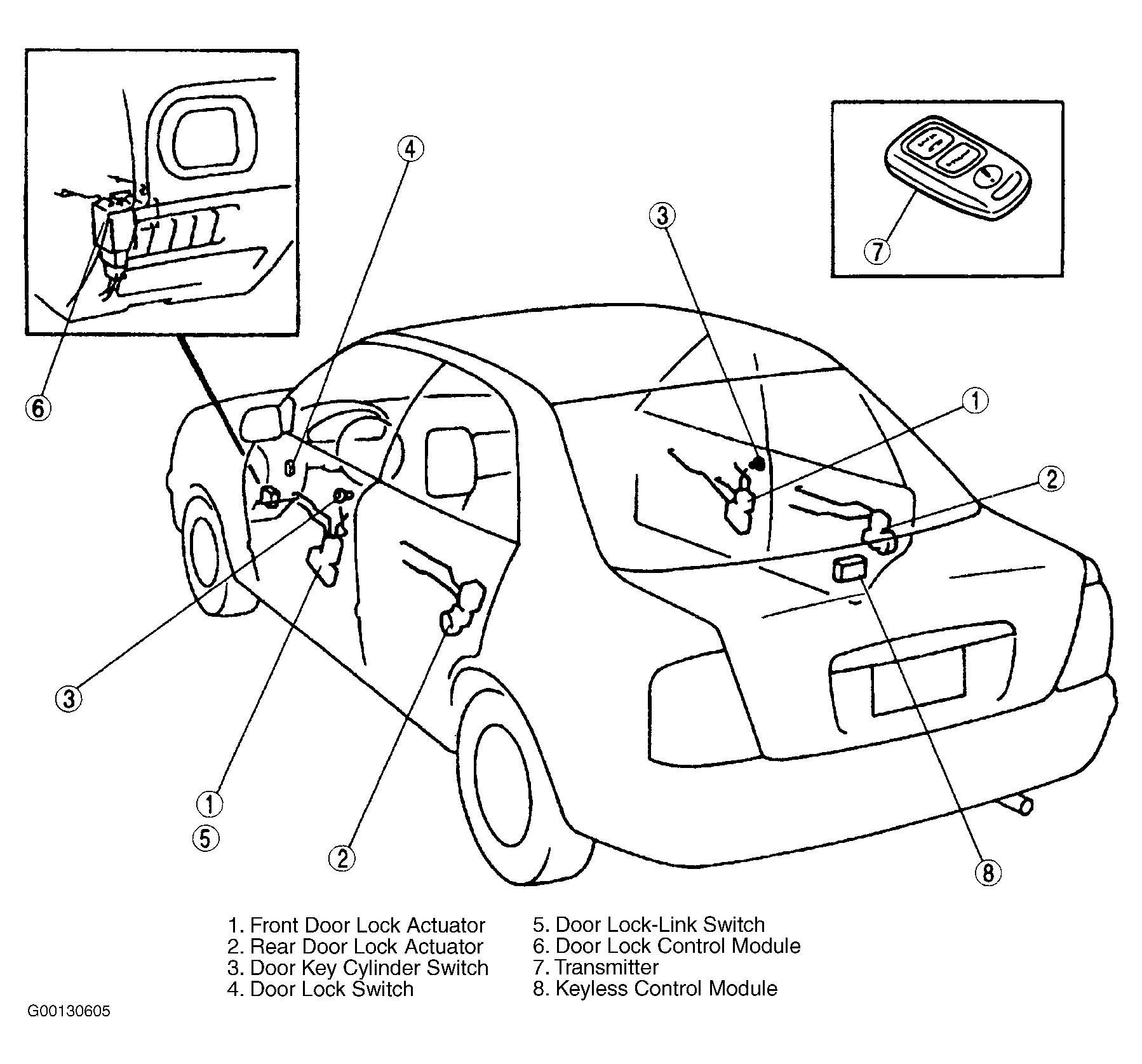

Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Door Lock Actuator | In Each Door |
| Door Lock Control Module | Under Left Side Of Dash |
| Door Lock Fuse (30A) | In Fuse Block Under Left Side Of Instrument Panel |
| Door Lock Link Switch | Integral Part Of Driver's Door Lock Actuator |
| Door Lock Switch | On Driver's Door Panel |
| Lock Cylinder Switch | Front Doors Only |
