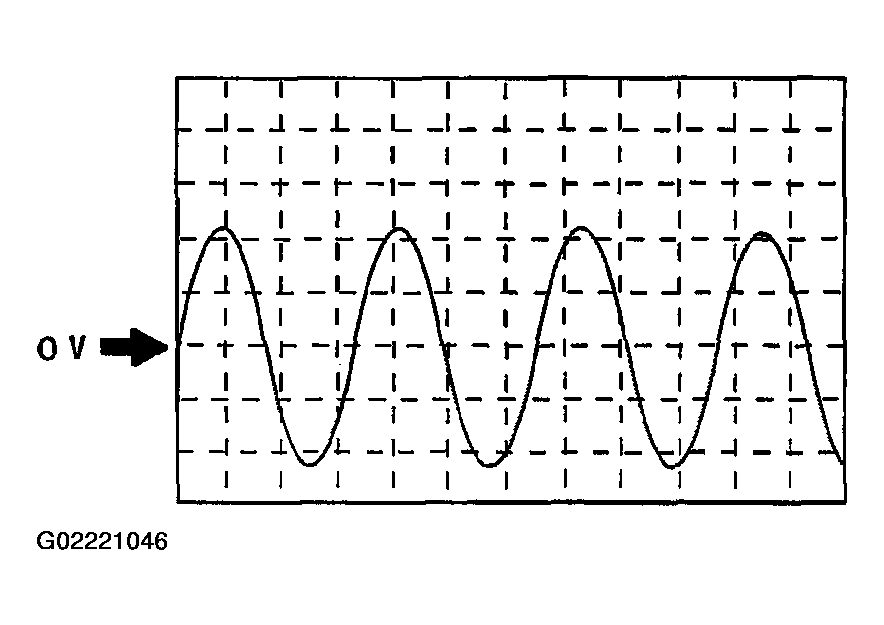

Wheel speed
- ABS HU/CM terminal or ABS/TCS HU/CM terminal:
RF : G (+) - D (-)
RR : A (+) - B (-)
LF : I (+) - E (-)
LR : C (+) - F (-)
- Oscilloscope setting: 1 V/DIV (Y), 2 ms/DIV (X)
- Vehicle condition: Driving 30 km/h [18.6 mph]NOTE:
- As vehicle speed increases, period of wave shortens.
- If malfunctioning in the sensor rotor, wave profile will warp.
