Intake-Air System Removal/Installation: Notes

WARNING:

• Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.
• Fuel line spills and leakage are dangers. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the FUEL LINE SAFETY PROCEDURES .
• Hot engines and intake-air system can cause severe burns. Turn off the engine and wait until it and the intake-air system are cool before removing the intake-air system.

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

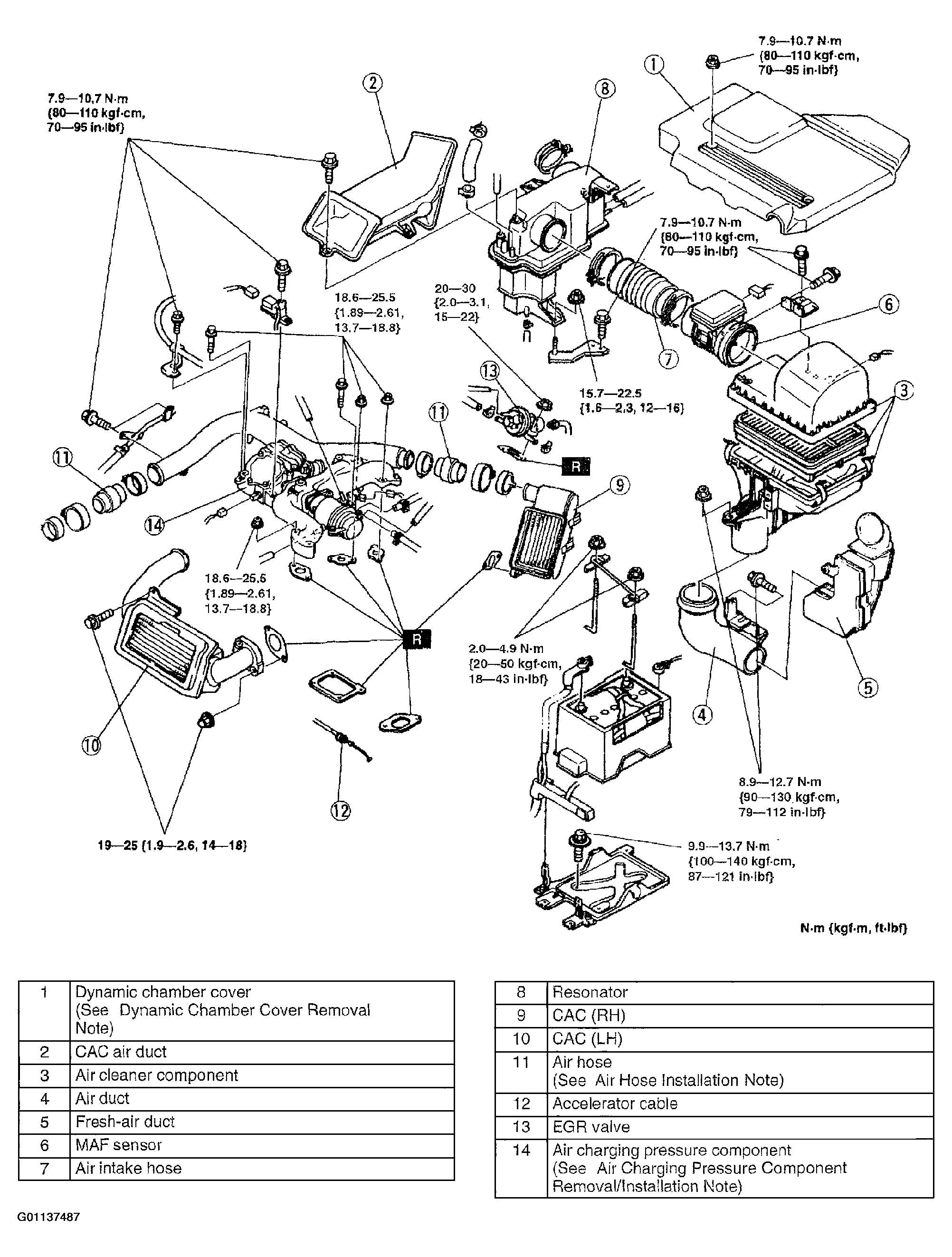

Fig 1: Identifying Air Intake Components

Courtesy of MAZDA MOTORS CORP.
