Front Turn Light/Side Marker Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the fasteners, then pull back the mudguard.

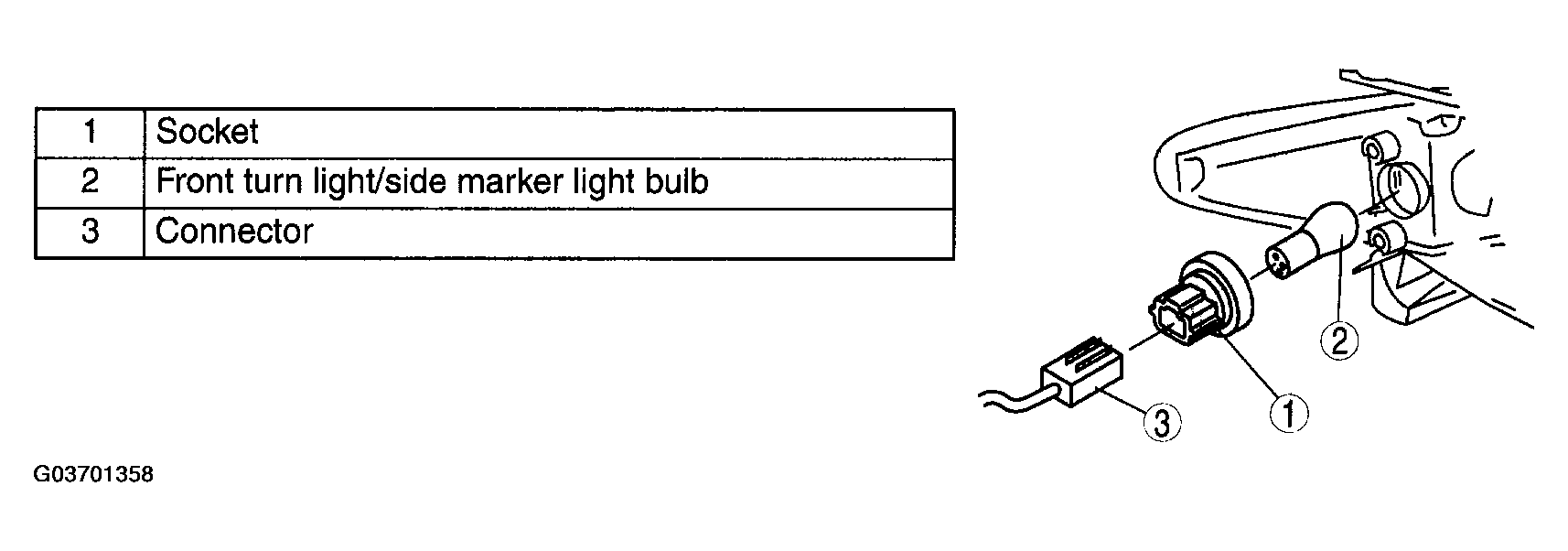

    Fig 1: Removing Front Turn Light/Side Marker Light Bulb
    G03701358Courtesy of MAZDA MOTORS CORP.
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.
