Magnetic Clutch Disassembly/Assembly

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the A/C compressor. (See A/C COMPRESSOR REMOVAL/INSTALLATION .)
  2. Disassemble in the order indicated in the table.

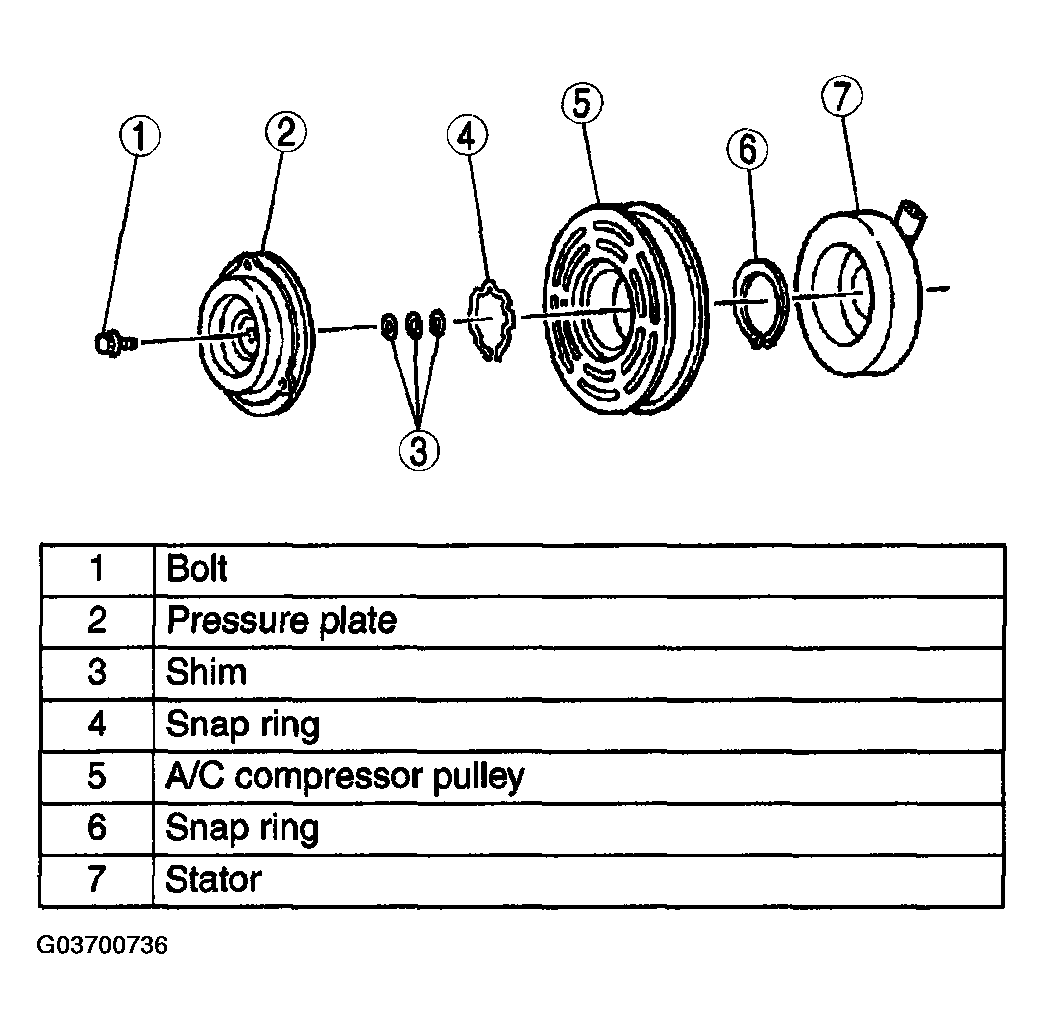

    Fig 1: Disassembling Magnetic Clutch
    G03700736Courtesy of MAZDA MOTORS CORP.
  3. Assemble in the reverse order of disassembly.
  4. Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT .)
