Front Blower Motor Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the under cover.
  3. Remove in the order indicated in the table.

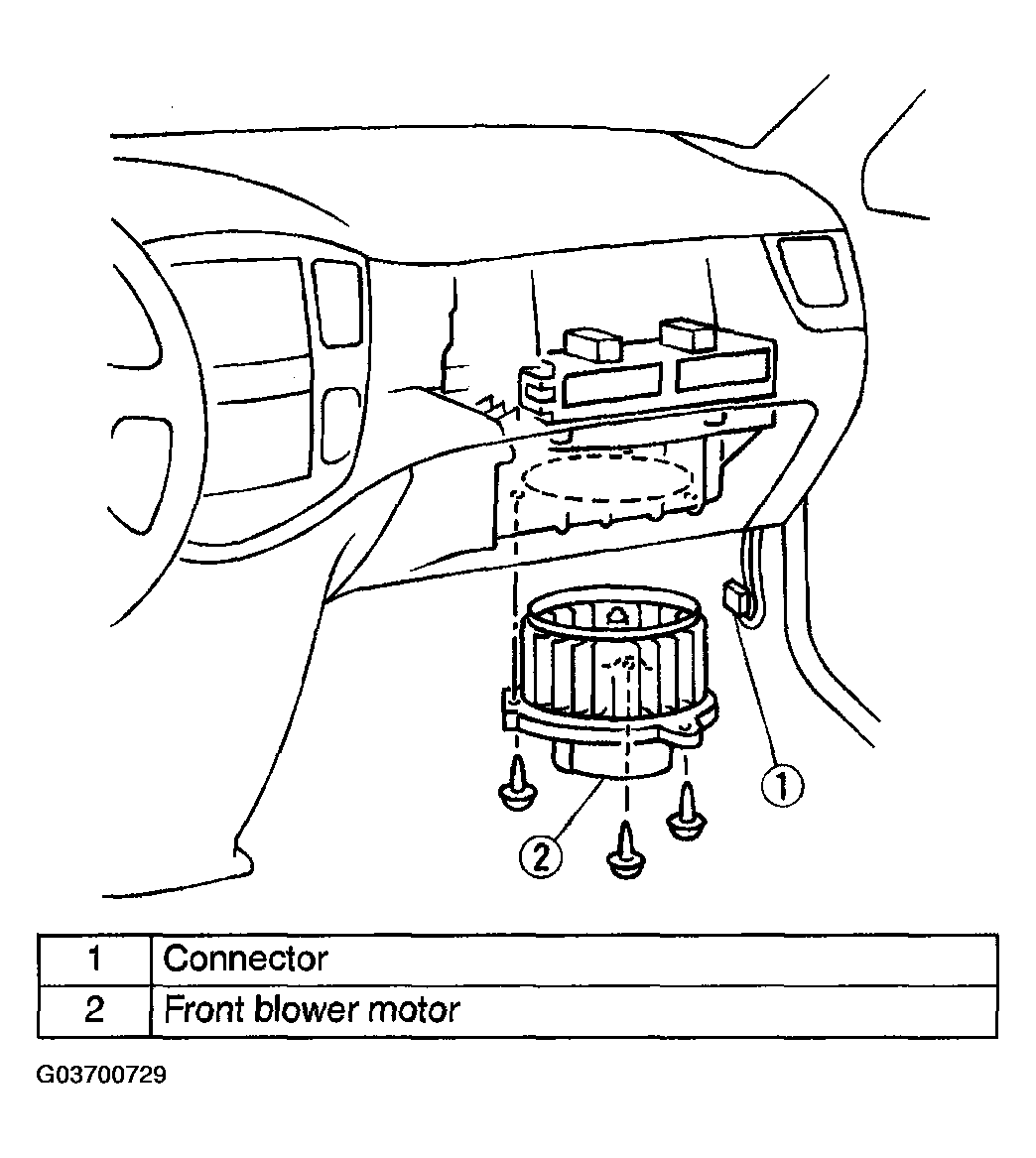

    Fig 1: Removing Front Blower Motor
    G03700729Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
