Column Cover Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the upper column cover.
  3. Remove the ignition key illumination. (See IGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION .)
  4. Remove the screws.
  5. Remove the lower column cover.
  6. Install in the reverse order of removal.

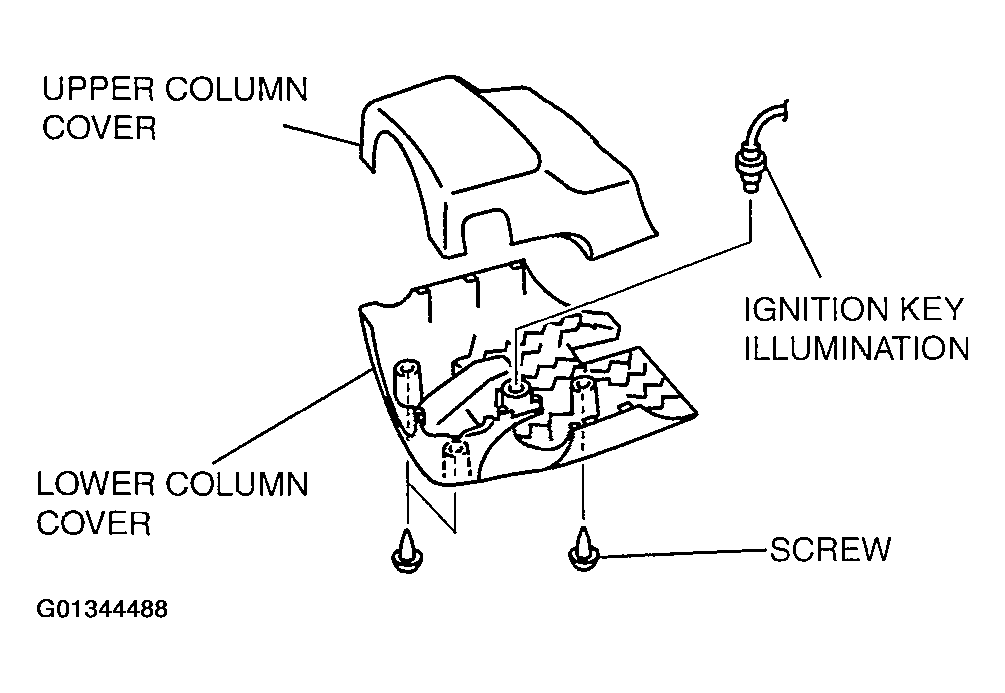

    Fig 1: Removing/Installing Column Cover
    G01344488Courtesy of MAZDA MOTORS CORP.
