No. 18 Cooling System Concerns-Runs Cold

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

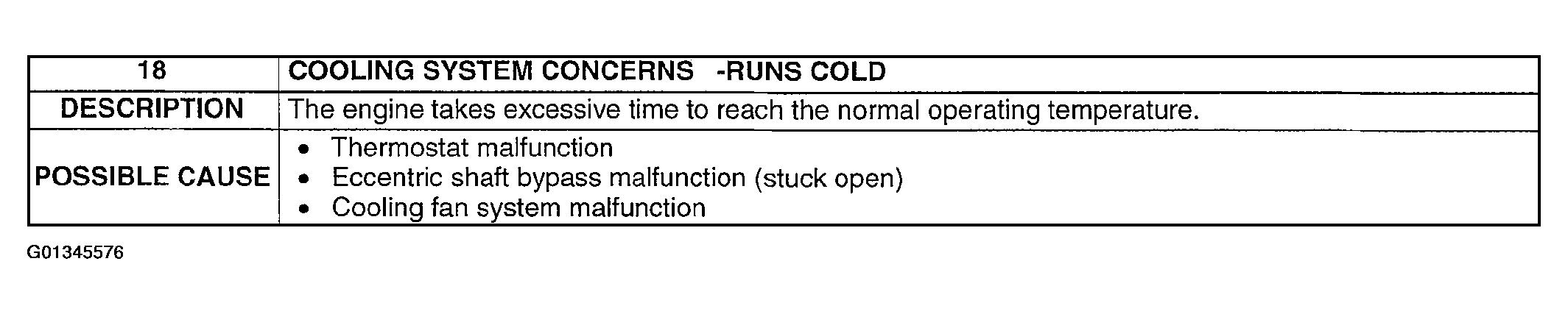

Fig 1: Possible Cause - No. 18 Cooling System Concerns-Runs Cold

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

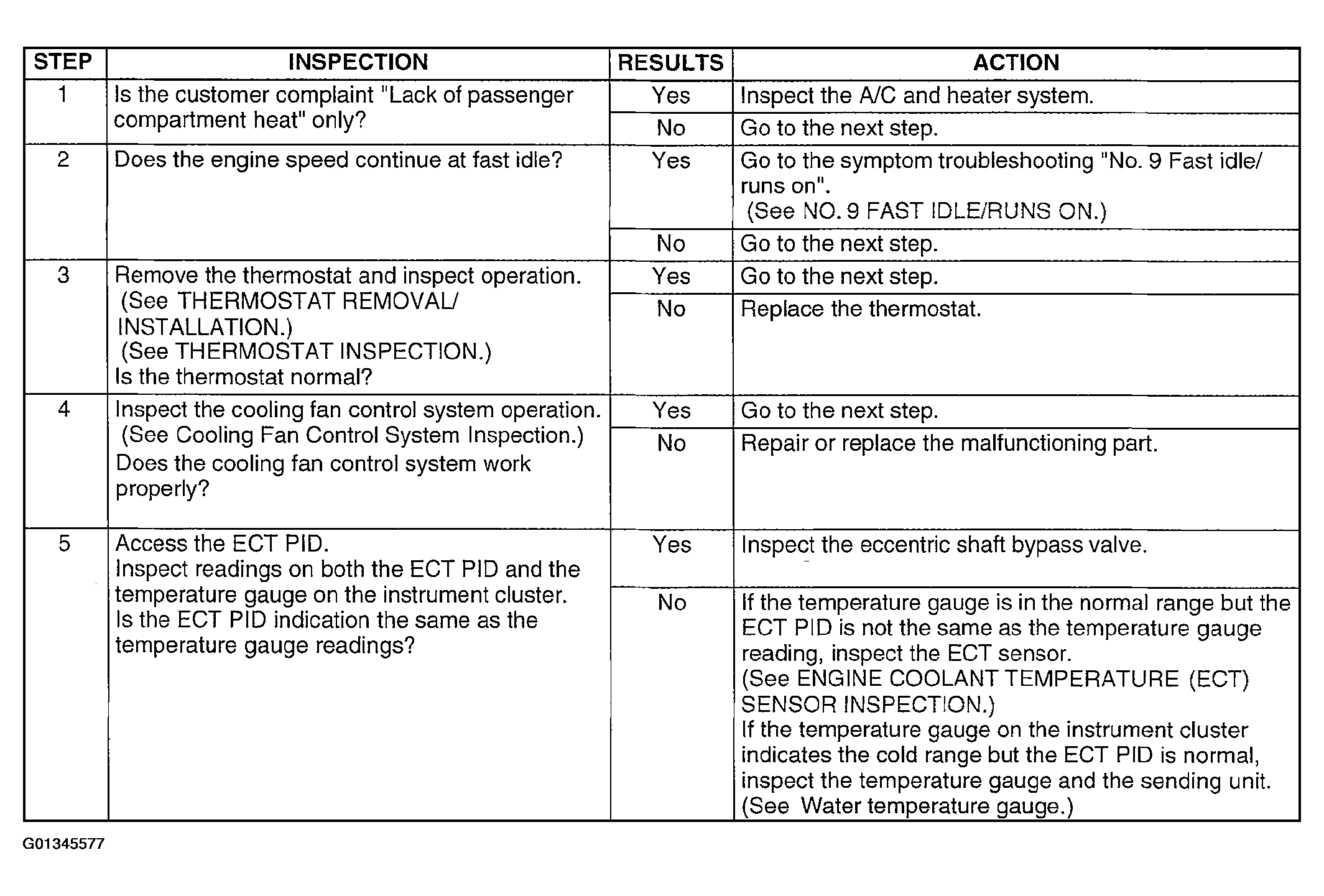

Fig 2: Diagnostic Procedure - No. 18 Cooling System Concerns-Runs Cold (Steps 1-5)

Courtesy of MAZDA MOTORS CORP.

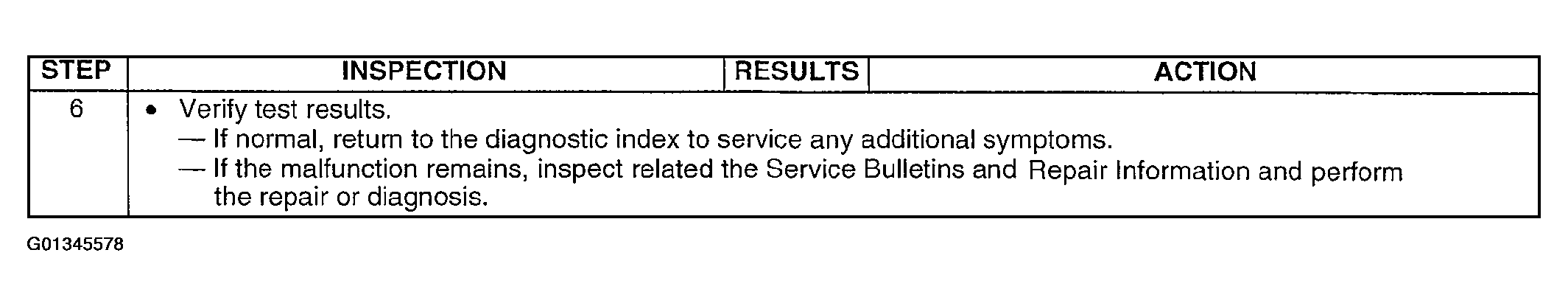

Fig 3: Diagnostic Procedure - No. 18 Cooling System Concerns-Runs Cold (Step 6)

Courtesy of MAZDA MOTORS CORP.
