Specification (Unloaded Vehicle)

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Standard Suspension

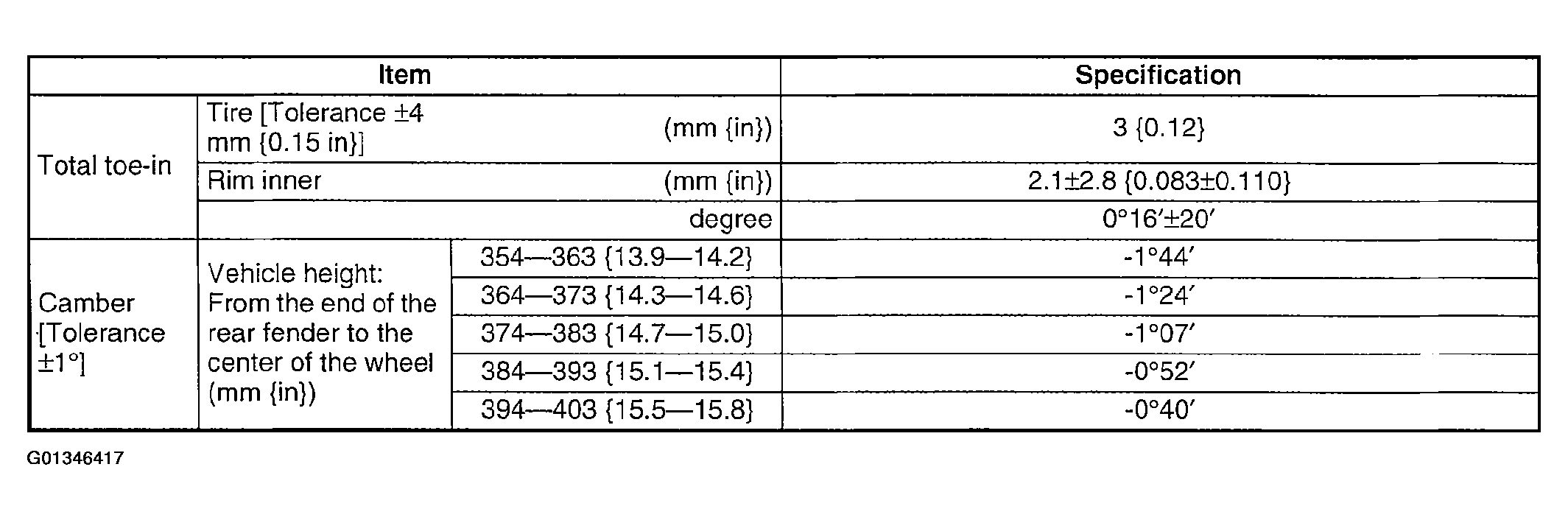

Fig 1: Standard Suspension Rear Wheel Alignment Specifications (Unloaded Condition)

Courtesy of MAZDA MOTORS CORP.

Sport Suspension

Fig 2: Sport Suspension Specifications (Rear Wheel)

Courtesy of MAZDA MOTORS CORP.

NOTE:

Unloaded vehicle: Fuel tank is full. Engine coolant and engine oil are at specified level. Jack and tools are in designated position.
Difference between the left and right camber angle is within 1 °.
