Transmission Range Sensor/Switch: Tribute
- Place transmission in "N" position. Disconnect negative battery cable, then disconnect positive battery cable. Remove battery and battery tray. Remove breather tube, MAF and IAT sensors. Remove air intake and air cleaner, then remove thermostat housing. Disconnect transmission range sensor electrical connector. Loosen transmission range sensor mounting bolts.

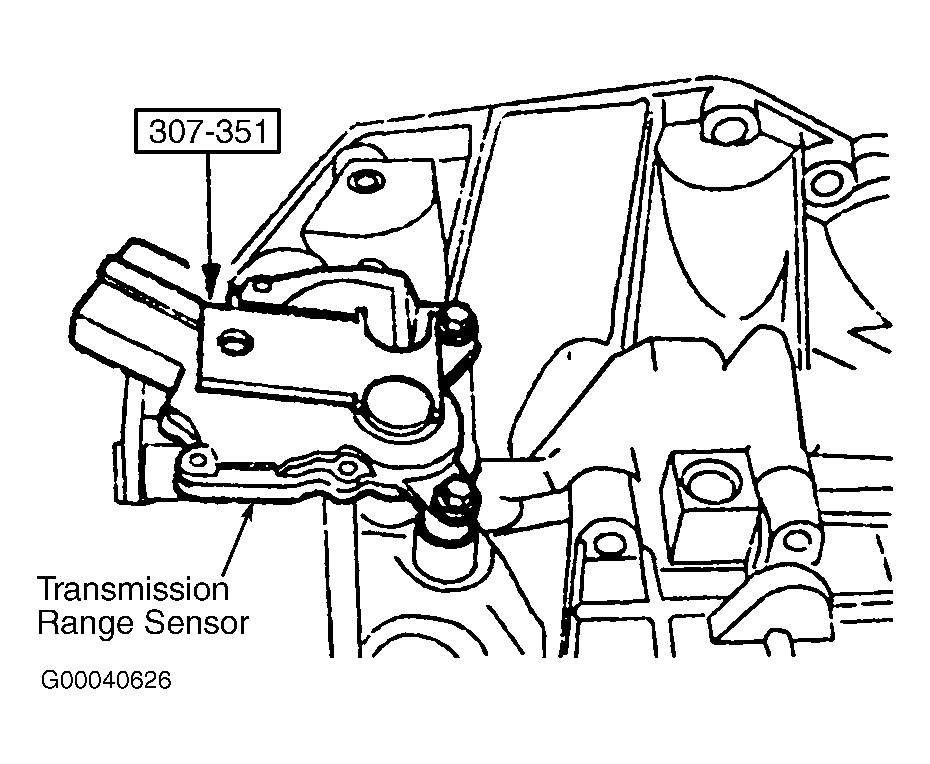

- Ensure transaxle in "N" position. Using alignment bracket (307-351), align transmission range selector. See Fig 1. Tighten mounting bolts to specification. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure. Check correct operation of sensor with parking brake applied. Engine should start only when transmission is placed in "N" and "P" positions. Backup lights should activate with transmission in "R" position.
Courtesy of MAZDA MOTORS CORP.
