Sun Roof Control Module Circuit Test: 626

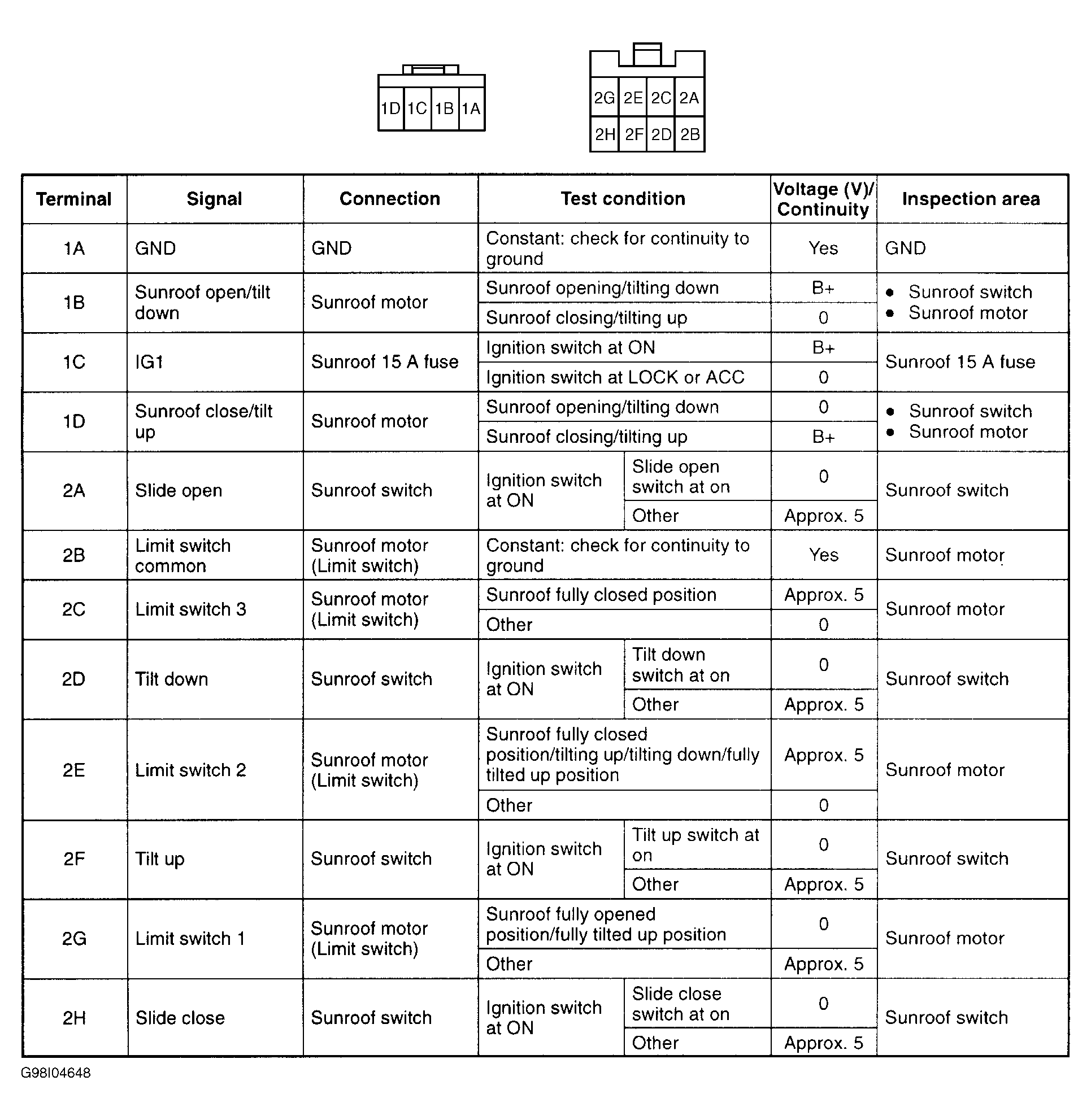

Access sun roof control module (located under headliner). Measure voltage or continuity at sun roof control module harness connector terminals. If voltage or continuity is not as specified, check related harness circuits. Disconnect sun roof control module connector before checking continuity at terminals 1A and 2B. If voltage and continuity are as specified, replace sun roof control module. See Fig 1 .
