Ring Gear & Speed Sensor Rotor Installation Note

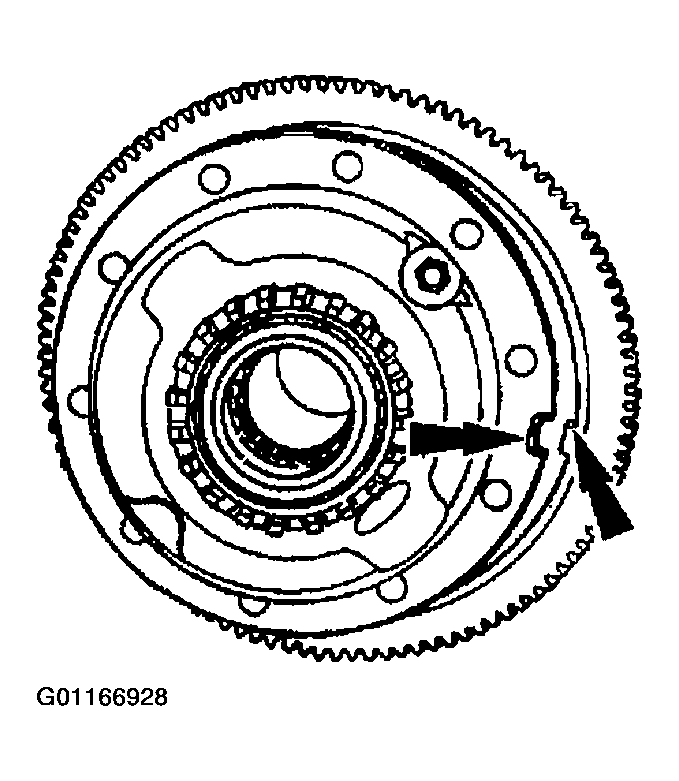

- Install the rotor by aligning the tab on rotor with the slot in the differential case.
- Press the new rotor and ring gear on the differential case.
- Coat the threads of the ring gear retaining bolts with sealant.
- Install bolts and alternately tighten evenly.
- Tightening Torque
- 95-115 N.m (9.7-11.7 kgf.m, 70-85 ft.lbf)
- Tightening Torque
CAUTION:
Start two of the ring gear bolts through the differential case and into the ring gear to make sure the ring gear bolt holes align with the differential case bolt holes properly.
