Manifold Gauge Set Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully close the valves of the manifold gauge.
  2. Connect the charging hoses to the high/low pressure side joints of the manifold gauge.
  3. Connect the quick couplers to the ends of the charging hoses.
  4. Connect the quick couplers to the charging valves.

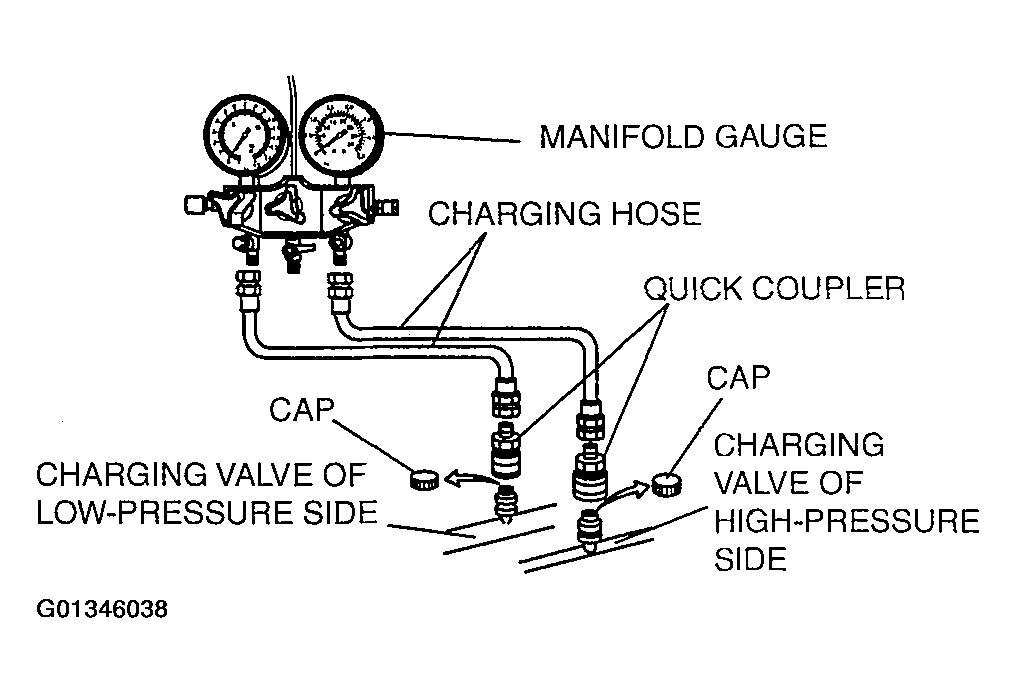

    Fig 1: Installing Manifold Gauge Set
    G01346038Courtesy of MAZDA MOTORS CORP.
