Disassembly Note

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front axle assembly. See FRONT AXLE ASSEMBLY REMOVAL/INSTALLATION .
  2. Install the axle on bench.
  3. NOTE: Place a suitable drain pan under the axle.
  4. Drain the axle fluid.
    1. Remove the ten differential cover bolts.
    2. Remove the differential cover.
  5. Remove the axle shaft using a jerking motion.

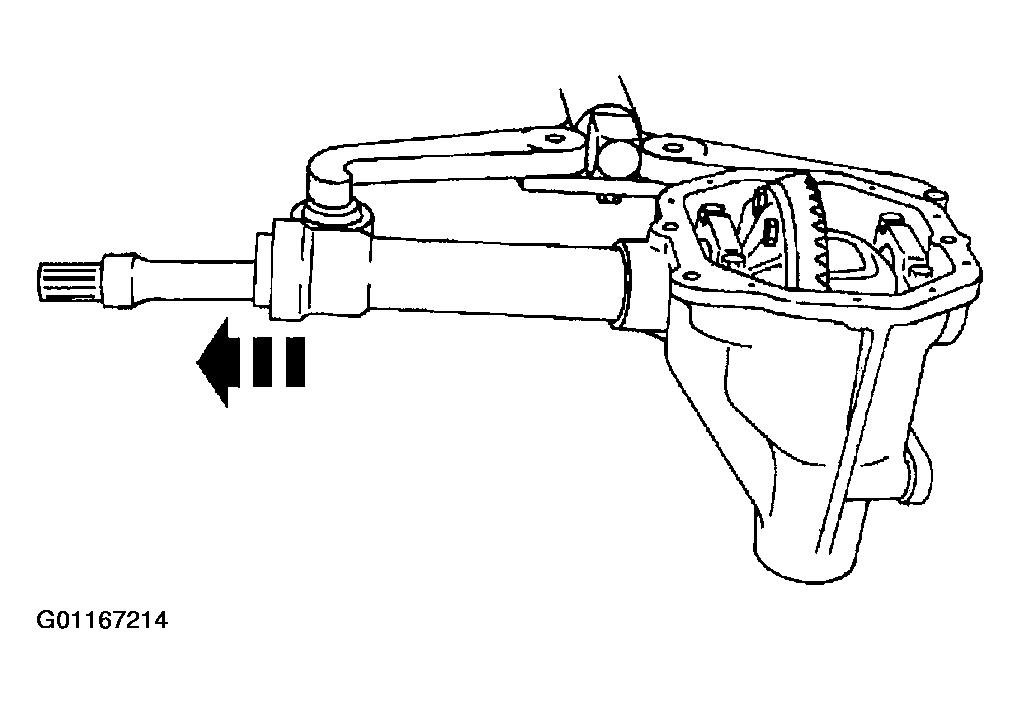

    Fig 1: Removing Axle Shaft
    G01167214Courtesy of MAZDA MOTORS CORP.
  6. Use Converter Seal Remover ST 49 UN01 0870  or equivalent and Impact Slide Hammer ST 49 0223 630B  and Adapter ST 49 UN11 101  to remove the LH axle seal.

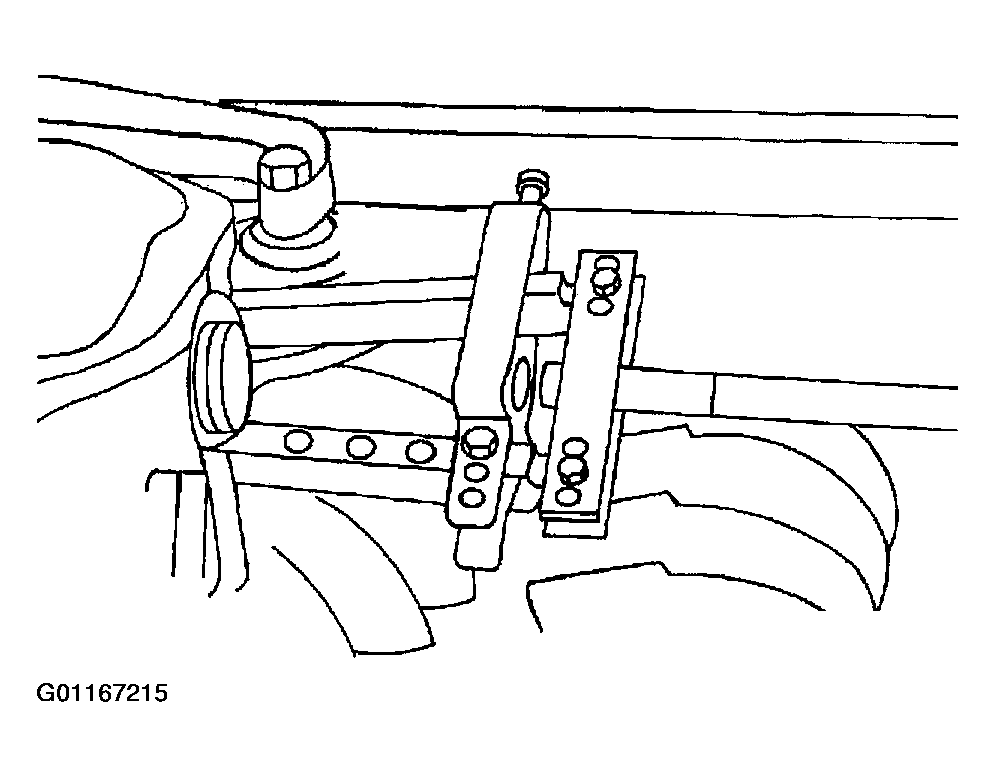

    Fig 2: Removing LH Axle Seal
    G01167215Courtesy of MAZDA MOTORS CORP.

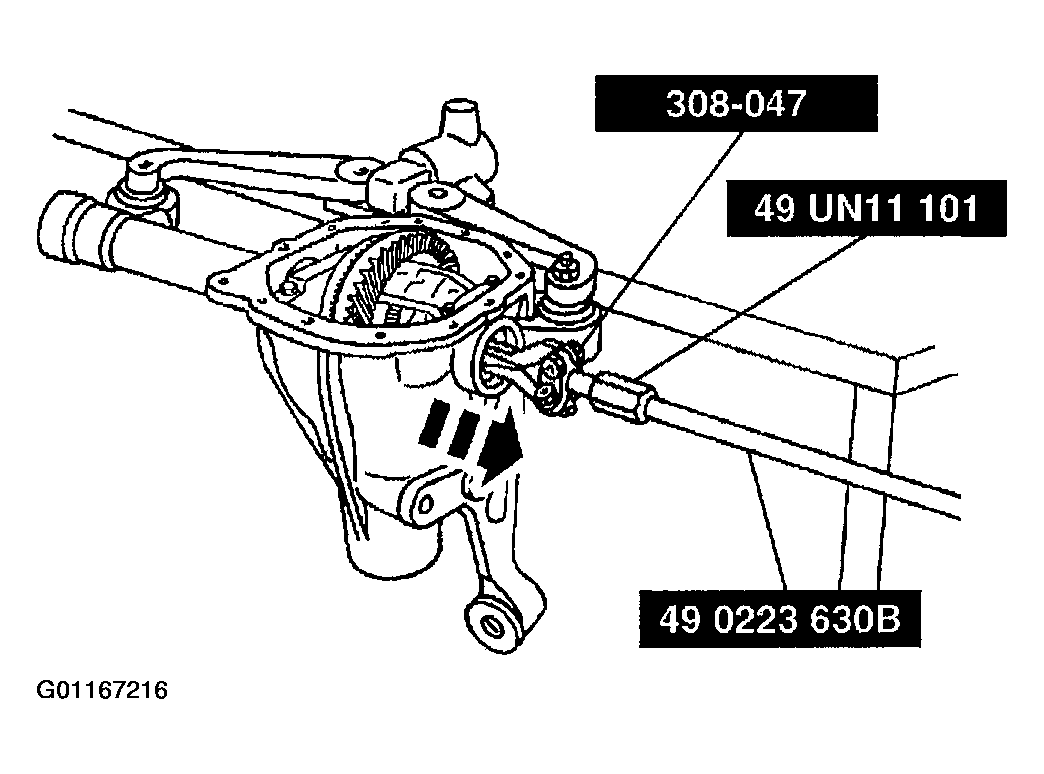

  7. Use Bearing Cup Puller ST 308-047  or equivalent and Impact Slide Hammer ST 49 0223 630B  and Adapter ST 49 UN11 101  to remove the LH axle bearing.
    Fig 3: Removing LH Axle Bearing
    G01167216Courtesy of MAZDA MOTORS CORP.
  8. Use Converter Seal Remover ST 49 UN01 0870  or equivalent and Impact Slide Hammer ST 49 0223 630B  and Adapter ST 49 UN11 101  to remove the RH axle shaft seal.

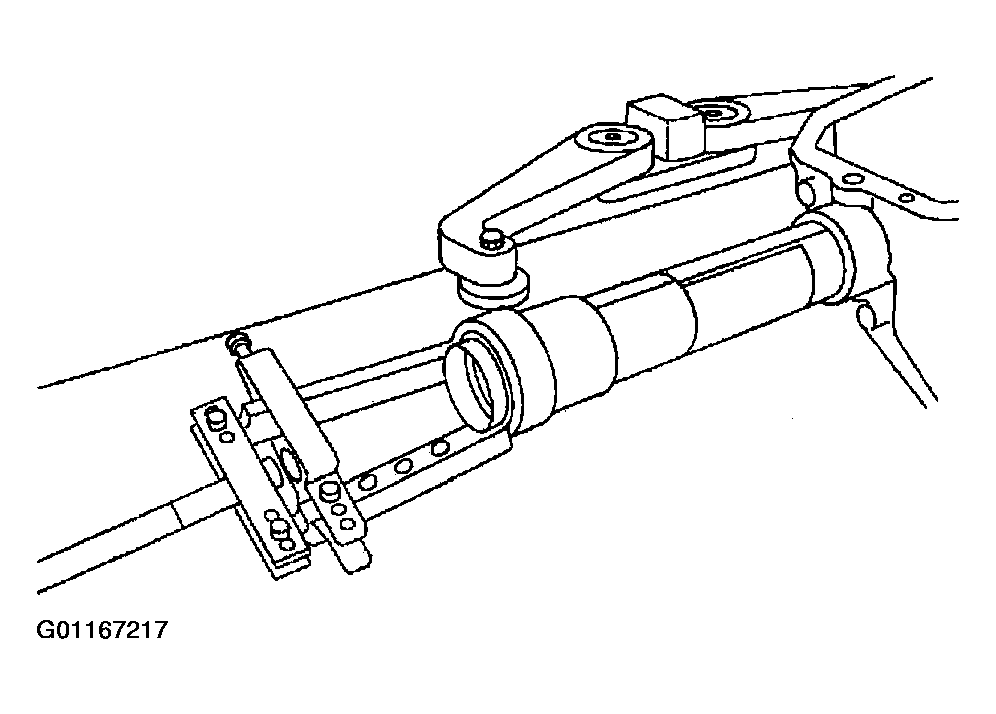

    Fig 4: Removing RH Axle Shaft Seal
    G01167217Courtesy of MAZDA MOTORS CORP.

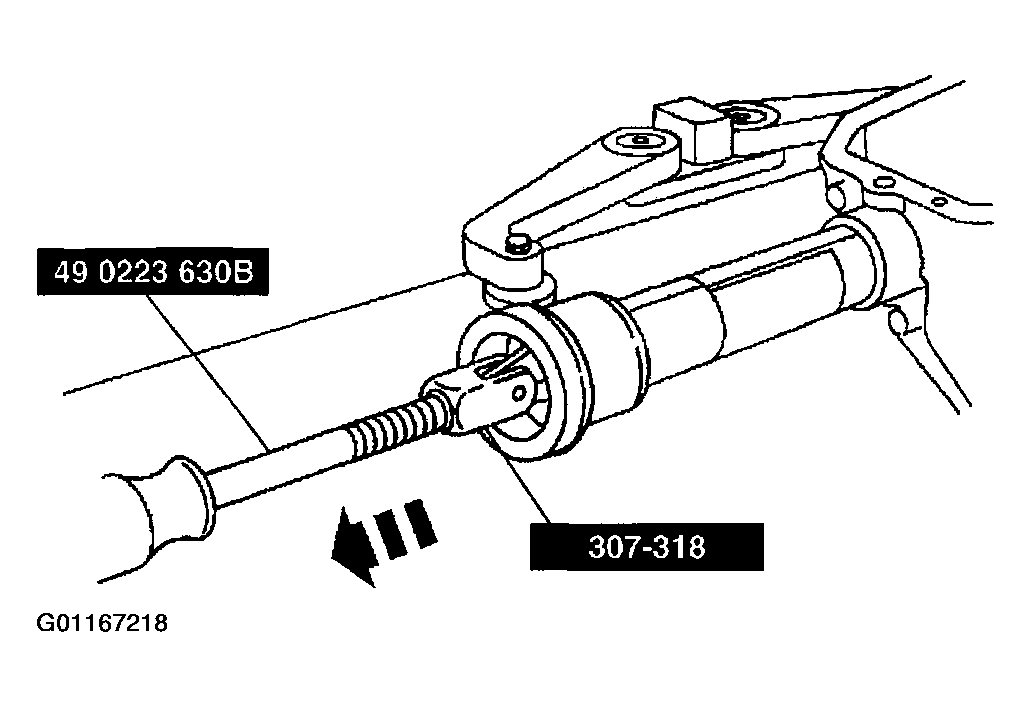

  9. Use Bearing Remover ST 307-318  or equivalent and Impact Slide Hammer ST 49 0223 630B  and Adapter ST 49 UN11 101  to remove the RH axle bearing.
    Fig 5: Removing RH Axle Bearing
    G01167218Courtesy of MAZDA MOTORS CORP.
  10. CAUTION: The matched numbers or letters stamped on both of the differential bearing caps and the axle housing must correspond upon assembly.
  11. Remove the differential bearing caps.
    1. Remove the four bolts.
    2. Remove the two differential bearing caps.

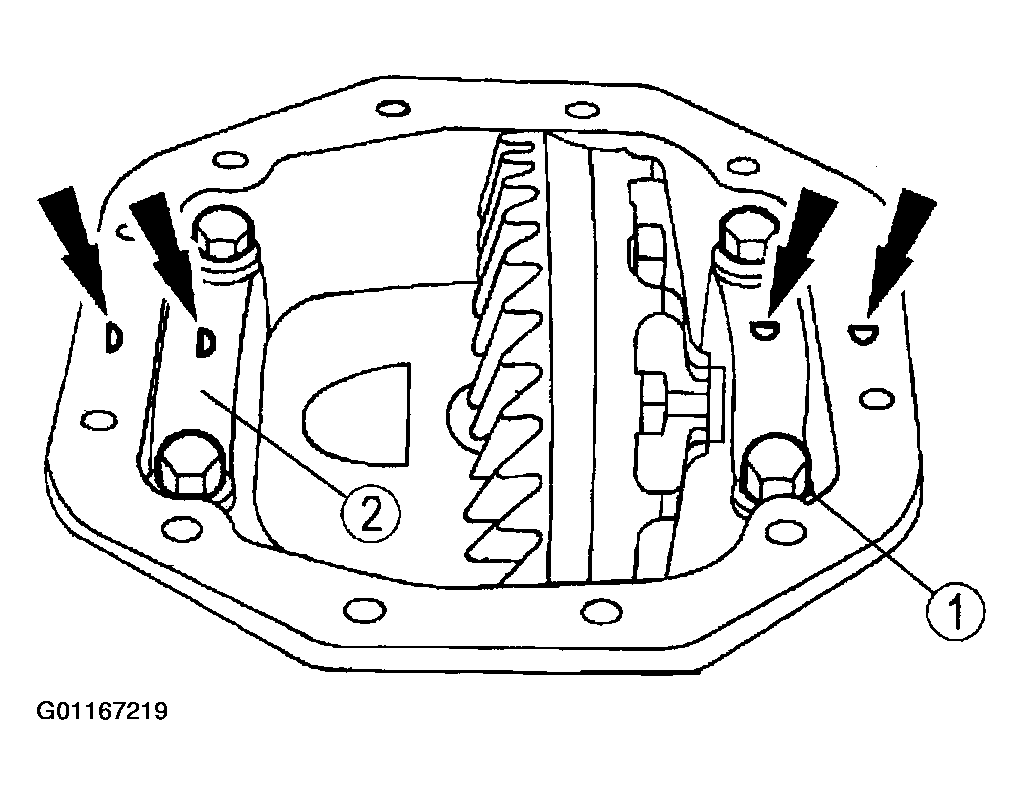

      Fig 6: Removing Differential Bearing Caps
      G01167219Courtesy of MAZDA MOTORS CORP.
  12. CAUTION: The ST bolts have a minimum thread engagement.

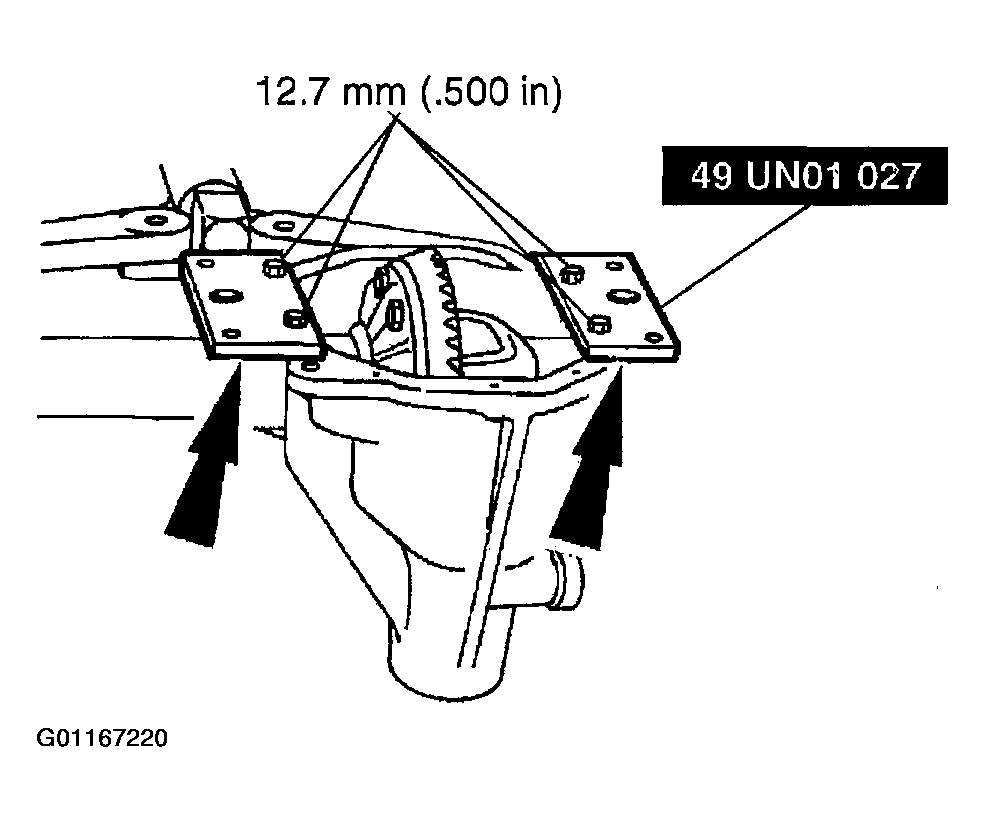

    Fig 7: Installing Spreader Adapters
    G01167220Courtesy of MAZDA MOTORS CORP.
  13. Install Spreader Adapters ST 49 UN01 027  .
  14. NOTE: Make sure the indicator needle is in the spreader adapter hole.

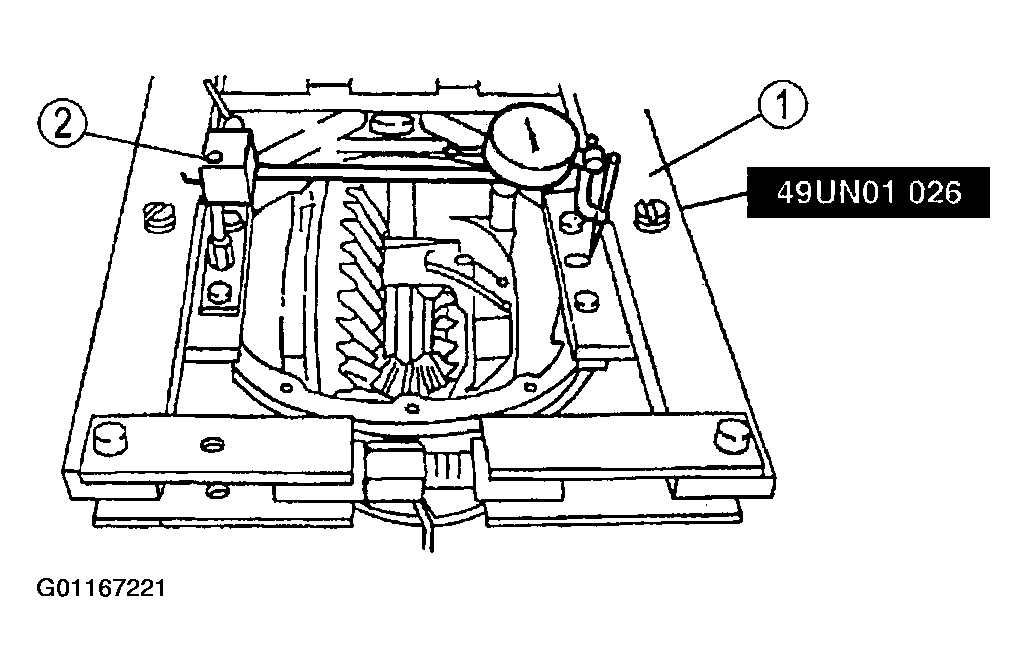

    Fig 8: Installing Differential Housing Spreader & Dial Indicator With Bracketry
    G01167221Courtesy of MAZDA MOTORS CORP.
  15. Install Differential Housing Spreader ST 49 UN01 026  and Dial Indicator with Bracketry.
    1. Install ST 49 UN01 026  .
    2. Install Dial Indicator with Bracketry and Clutch Housing Alignment Adapter ST 308-021  .
  16. CAUTION: Over-spreading may cause damage to the axle housing.

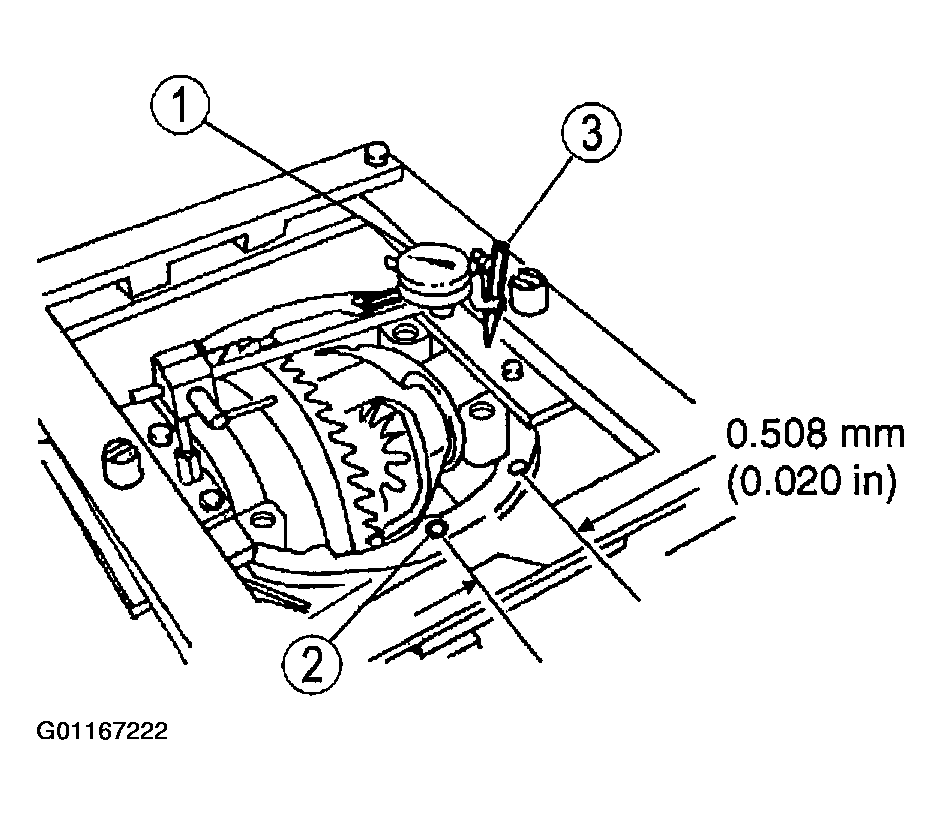

  17. Spread the axle housing.
    1. Adjust the Dial Indicator to zero.
    2. Tighten screw from Differential Housing Spreader ST 49 UN01 026  until the axle housing is spread.
    3. Remove Dial Indicator with Bracketry.
      Fig 9: Spreading Axle Housing
      G01167222Courtesy of MAZDA MOTORS CORP.
  18. CAUTION: Wood blocks must be used to avoid axle housing damage.

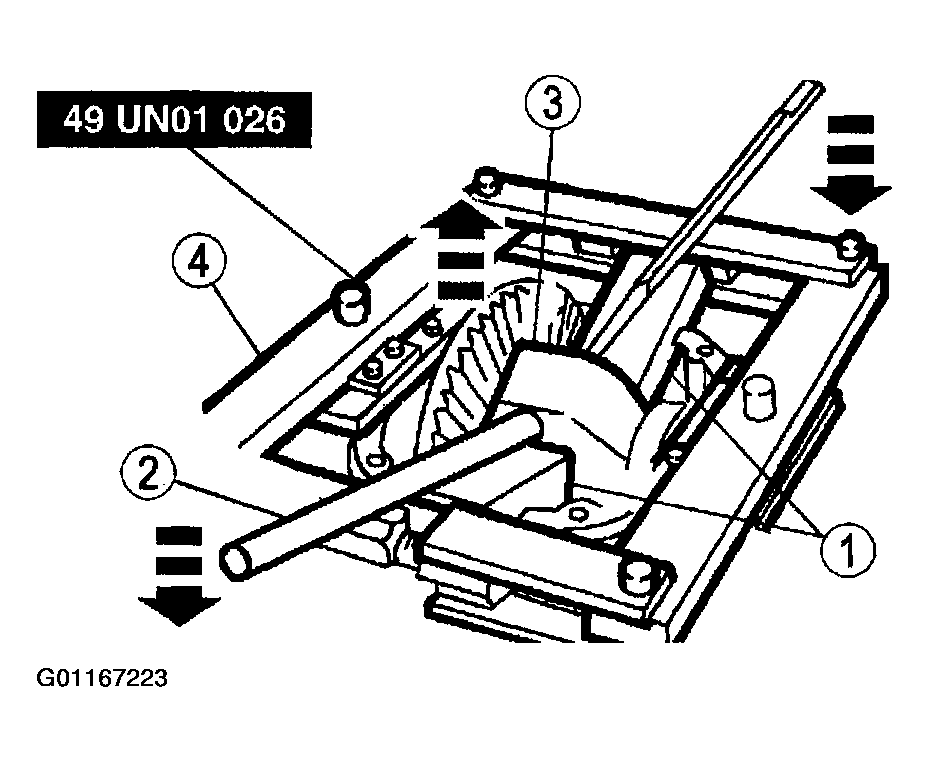

    Fig 10: Removing Differential Case
    G01167223Courtesy of MAZDA MOTORS CORP.
  19. Remove the differential case from the axle housing.
    1. Position the wood blocks.
    2. Use two pry bars; push down on the pry bars.
    3. Remove the differential case.
    4. Remove Differential Housing Spreader ST 49 UN01 026  .
  20. Measure the pinion bearing preload.
    • Use a beam type torque wrench to measure the torque required to maintain rotation of the pinion and record the measure for reference during assembly.

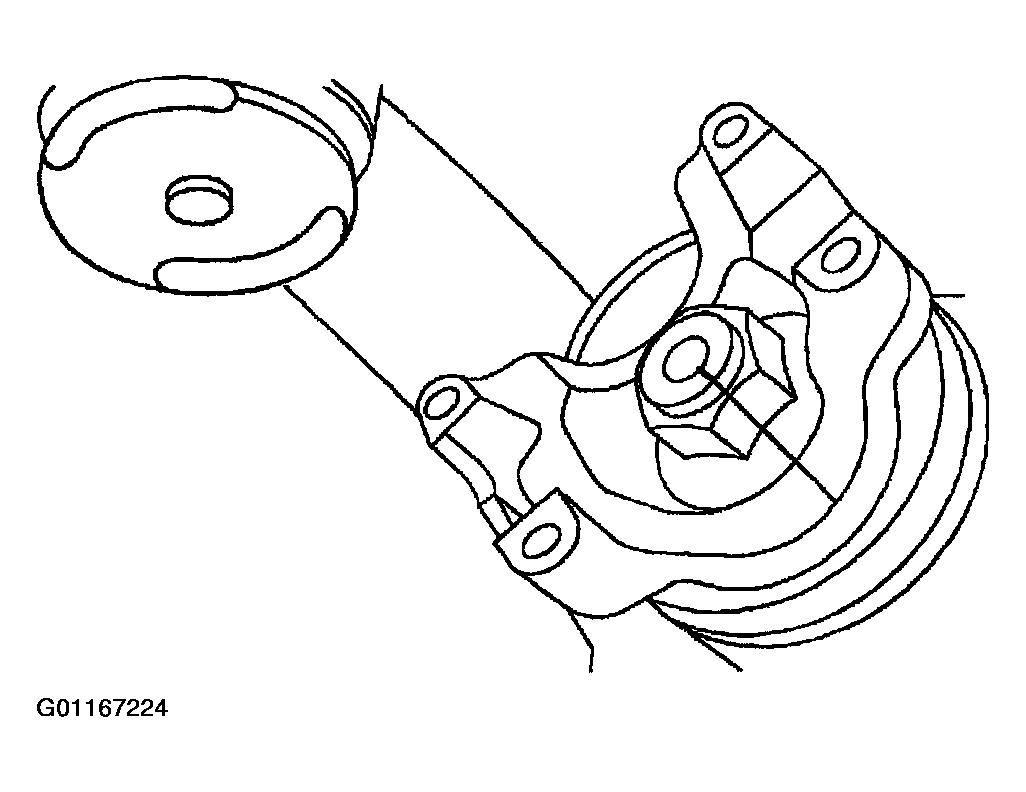

  21. Index mark the companion flange to the pinion stem.
    Fig 11: Marking Companion Flange To Pinion Stem
    G01167224Courtesy of MAZDA MOTORS CORP.
  22. Use Coupling Holder ST 205-126  to hold the companion flange while removing the pinion nut.

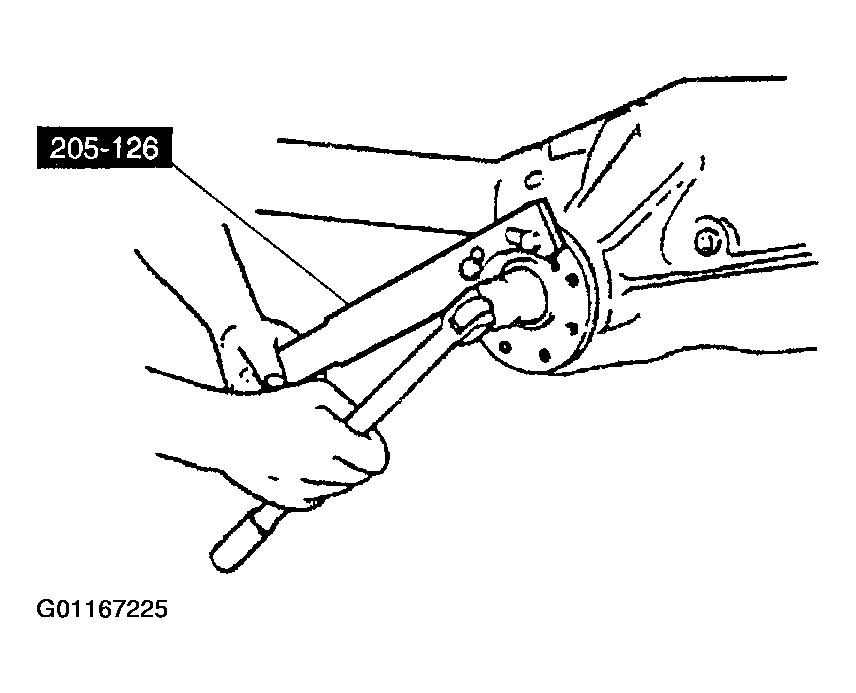

    Fig 12: Removing Pinion Nut
    G01167225Courtesy of MAZDA MOTORS CORP.
  23. Use a 2-jaw puller to remove the companion flange.
  24. WARNING: Gear teeth may have sharp edges. When handling gear, use care to avoid personal injury.
    CAUTION: Use a soft mallet to drive the pinion out of the axle housing.

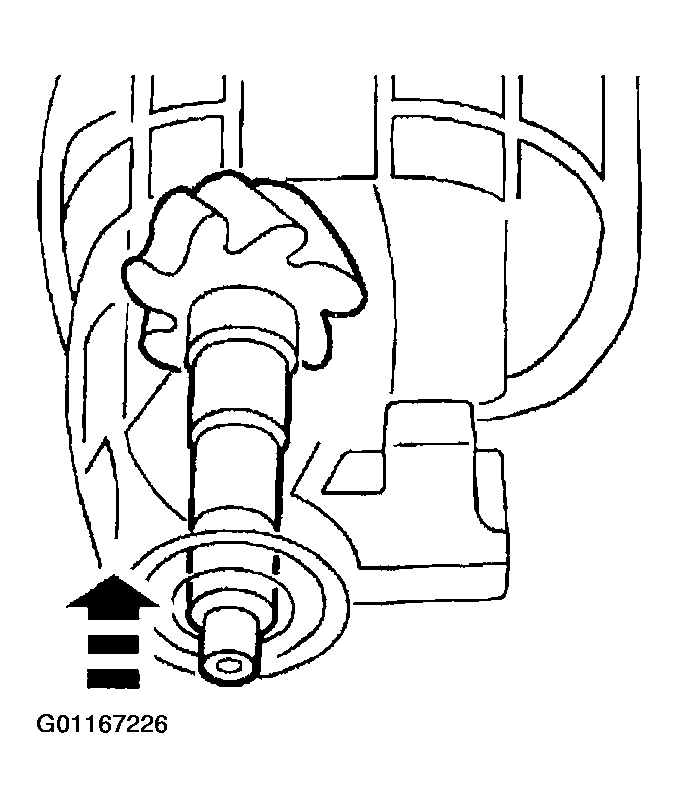

    Fig 13: Removing Pinion
    G01167226Courtesy of MAZDA MOTORS CORP.
  25. Remove the pinion from the axle housing.
    1. Hold the pinion inside the axle housing.
    2. Use a soft face hammer to remove the pinion from the axle housing.

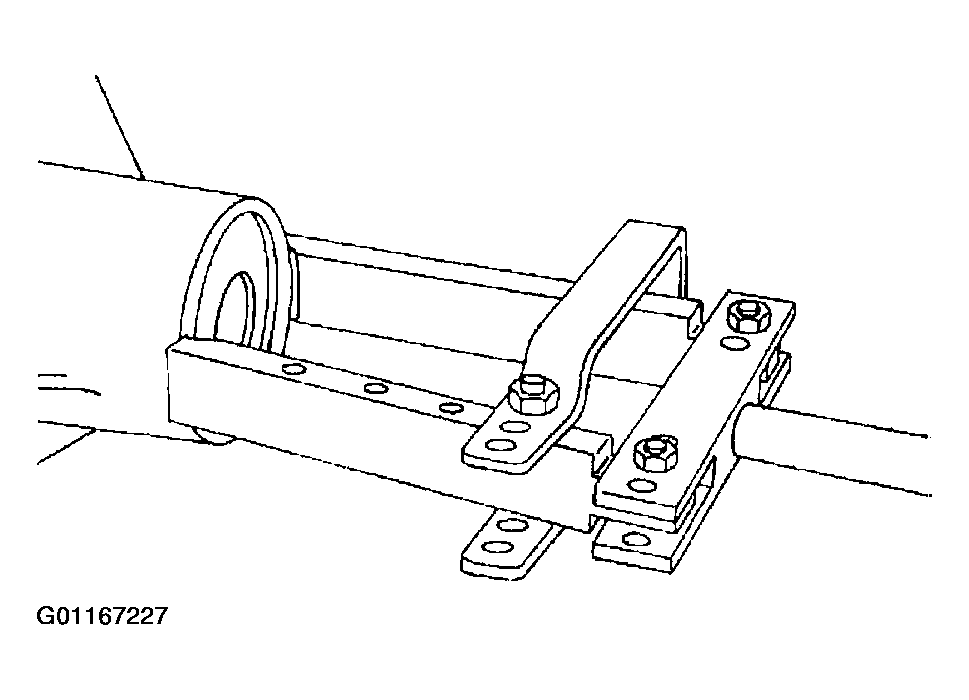

  26. Use Converter Seal Remover ST 49 UN01 0870  or equivalent and Impact Slide Hammer ST 49 0223 630B  and Adapter ST 49 UN11 101  to remove the pinion seal.
    Fig 14: Removing Pinion Seal
    G01167227Courtesy of MAZDA MOTORS CORP.

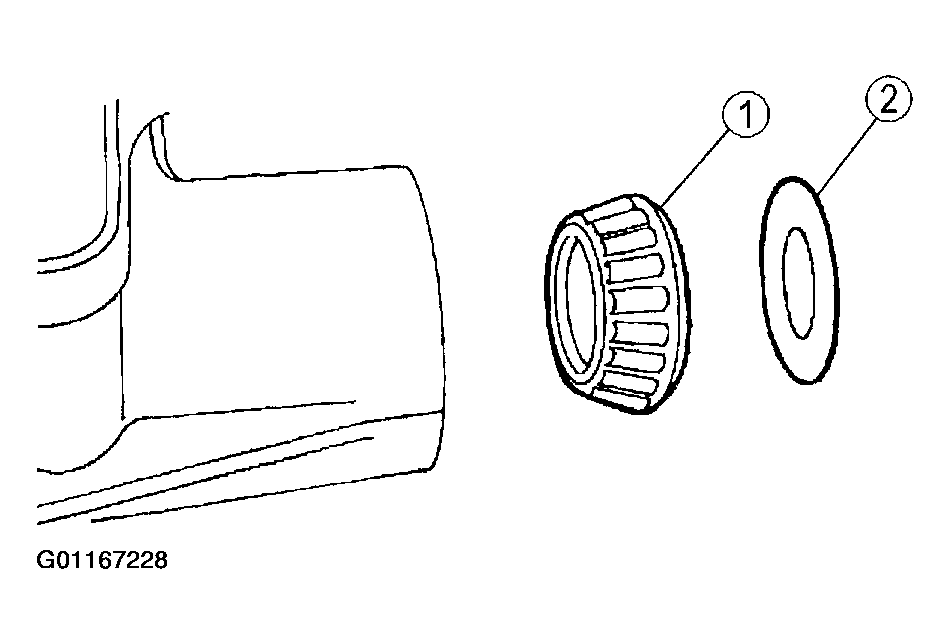

  27. Remove the oil slinger (1) and the differential pinion bearing (2).
    Fig 15: Removing Oil Slinger & Differential Pinion Bearing
    G01167228Courtesy of MAZDA MOTORS CORP.
  28. Remove the outer differential pinion bearing cup by tapping alternately on each side to prevent it from cocking in the bore.

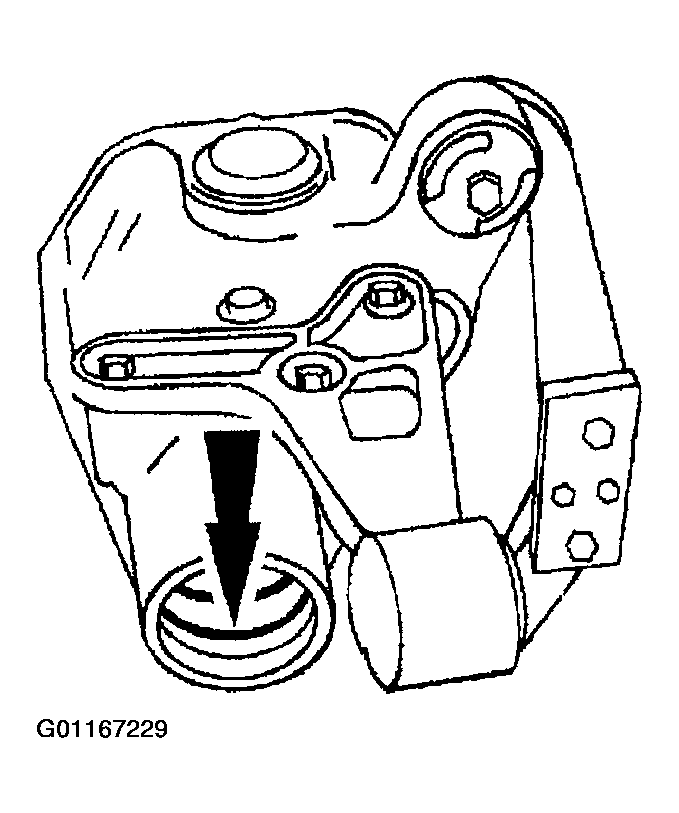

    Fig 16: Removing Outer Differential Pinion Bearing Cup
    G01167229Courtesy of MAZDA MOTORS CORP.

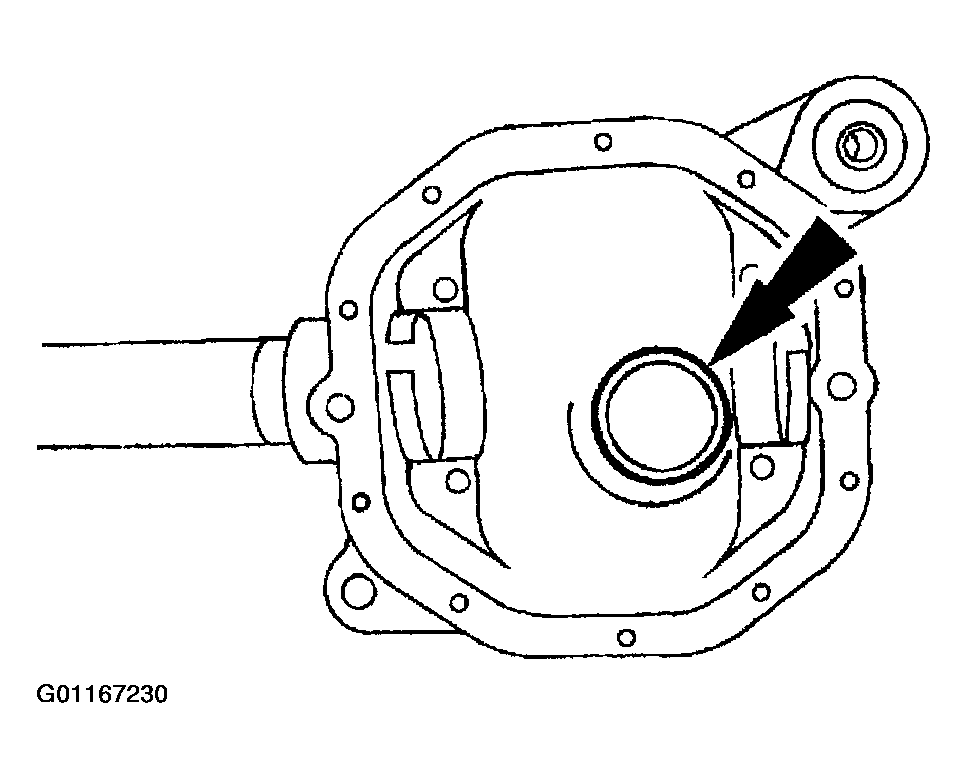

  29. Remove the inner differential pinion bearing cup by tapping alternately on each side to prevent it from cocking in the bore.
    Fig 17: Removing Inner Differential Pinion Bearing Cup
    G01167230Courtesy of MAZDA MOTORS CORP.
  30. Remove the differential pinion bearing.
    1. Install the Pinion Bearing Cone Remover (205-055) or equivalent on the differential pinion bearing assembly.
    2. Position the Pinion Bearing Cone Remover (205-055) or equivalent and the differential pinion bearing assembly in a press.
    3. Press the differential pinion bearing off.

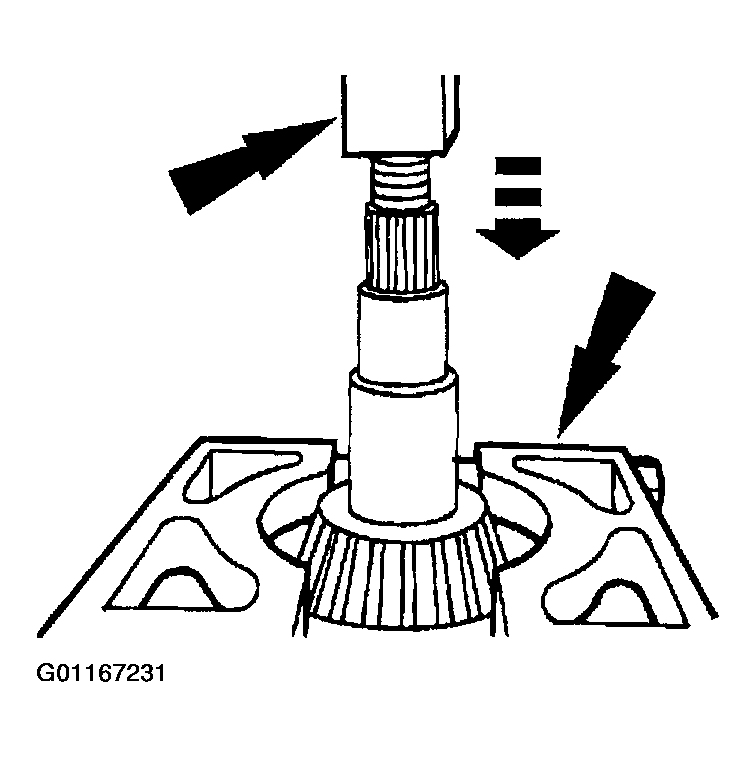

    Fig 18: Removing Differential Pinion Bearing
    G01167231Courtesy of MAZDA MOTORS CORP.
    NOTE: Measure the pinion position shim with a micrometer and record the thickness (use this as a reference to compare the shim gauge reading prior to installing the differential pinion bearing).
  31. Remove the pinion position shim from the differential pinion gear.

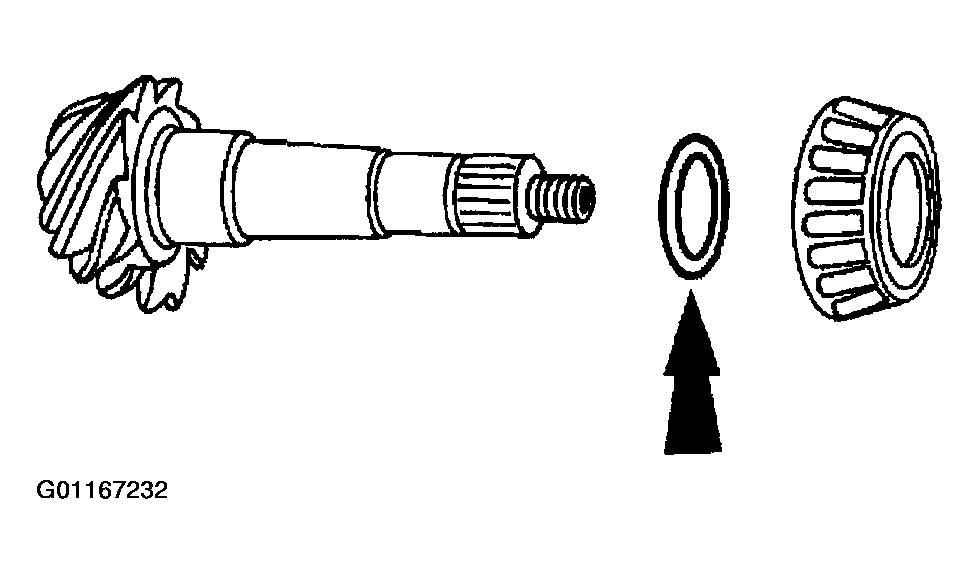

    Fig 19: Removing Pinion Position Shim
    G01167232Courtesy of MAZDA MOTORS CORP.
  32. Remove the ring gear.
    1. Remove the eight bolts.
    2. Use a drift punch to separate the ring gear from the differential case.
