Bench Torque Test

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the torque required to rotate one differential side gear.
    • Mount the differential case and Torque Tool ST 205-022  or equivalent in a vise.
    • The initial minimum break-away torque, if original clutch plates are used, must be within specification. The minimum rotating torque required to keep the differential side gear turning with new clutch plates may vary.

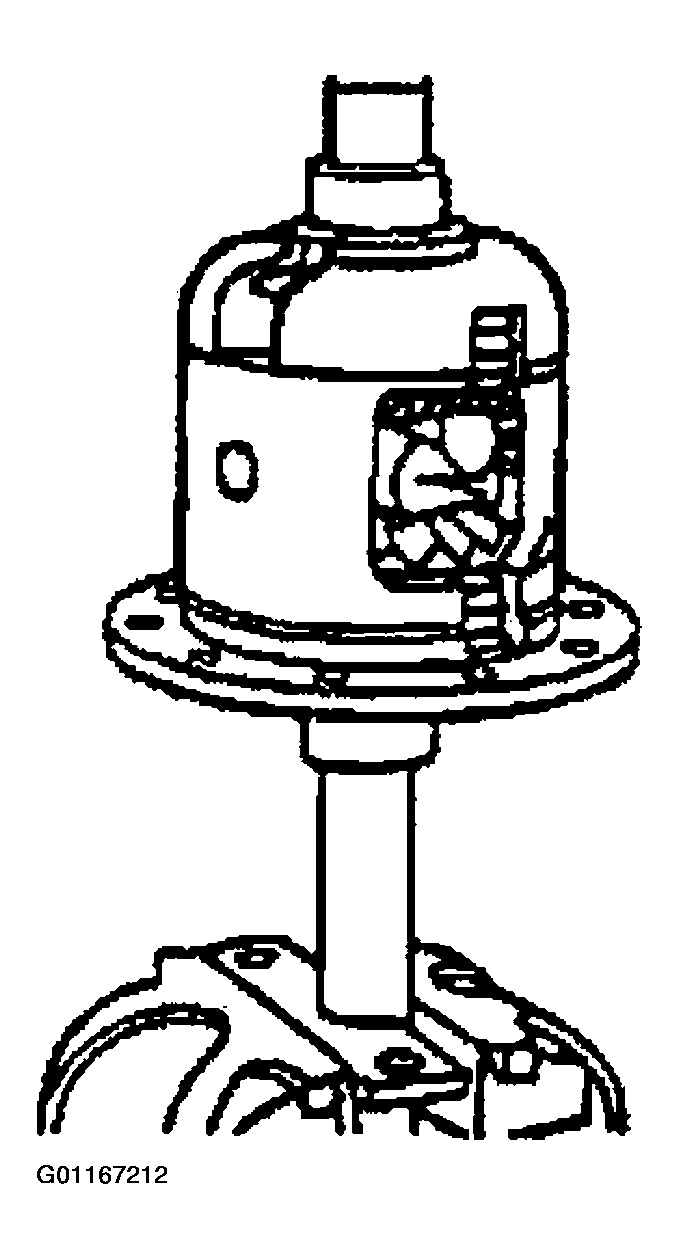

    Fig 1: Checking Differential Side Gear Rotating Torque
    G01167212Courtesy of MAZDA MOTORS CORP.
