Flywheel Removal/Installation: Installation

WARNING: This page is about a different car, the 2002 Mazda B2300 and 2001 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Engine balancing is not required. Balance weights should not be installed on the new flywheel.
NOTE: Special bolts are used for installation. Do not use standard bolts.
  1. Inspect the pilot bearing (manual transmission only). Install a new pilot bearing as necessary.
  2. Install the flywheel or flexplate. Tighten the bolts in the sequence shown in three stages.
    1. Stage 1: Tighten to 50 N.m {5.1 kgf.m, 37 lbf}.
    2. Stage 2: Tighten to 80 N.m {8.16 kgf.m, 50 lbf}.
    3. Stage 3: Tighten to 112 N.m {11.42 kgf.m, 83 lbf}.

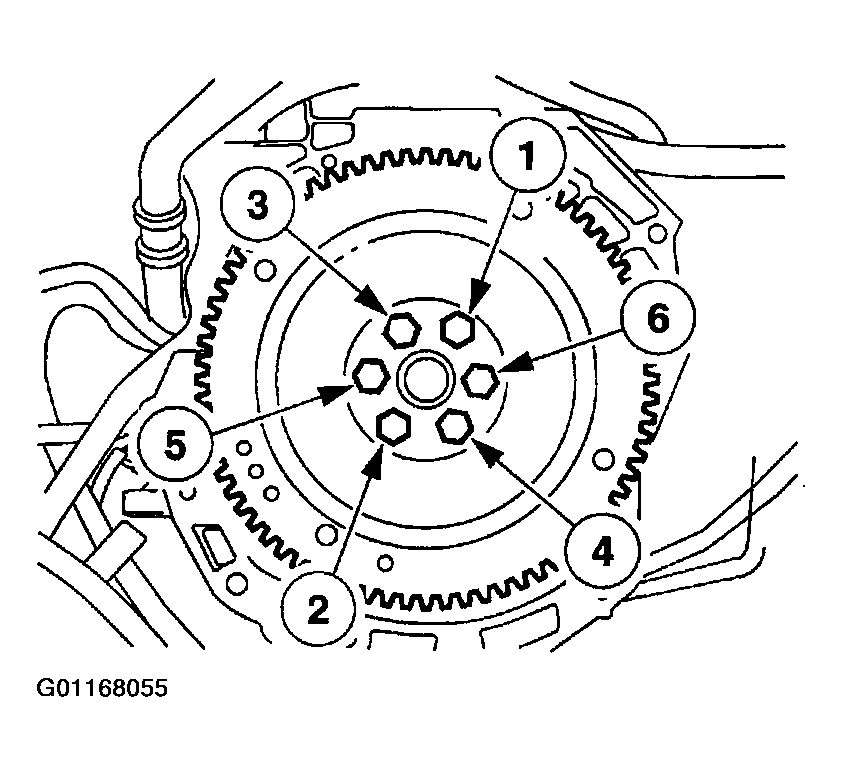

    Fig 1: Tightening Flywheel Or Flexplate Bolt Tightening Sequence
    G01168055Courtesy of MAZDA MOTORS CORP.
  3. Install the clutch, if so equipped.
  4. Install the transmission.
