Engine Mount Rubber Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda B2300 and 2001 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front springs.
- For 2001 models, see COIL SPRING
- For 2002 models, see COIL SPRING .
- For 2003 models, see COIL SPRING .
Remove the pushpins and position the right inner fender splash shield out of the way.

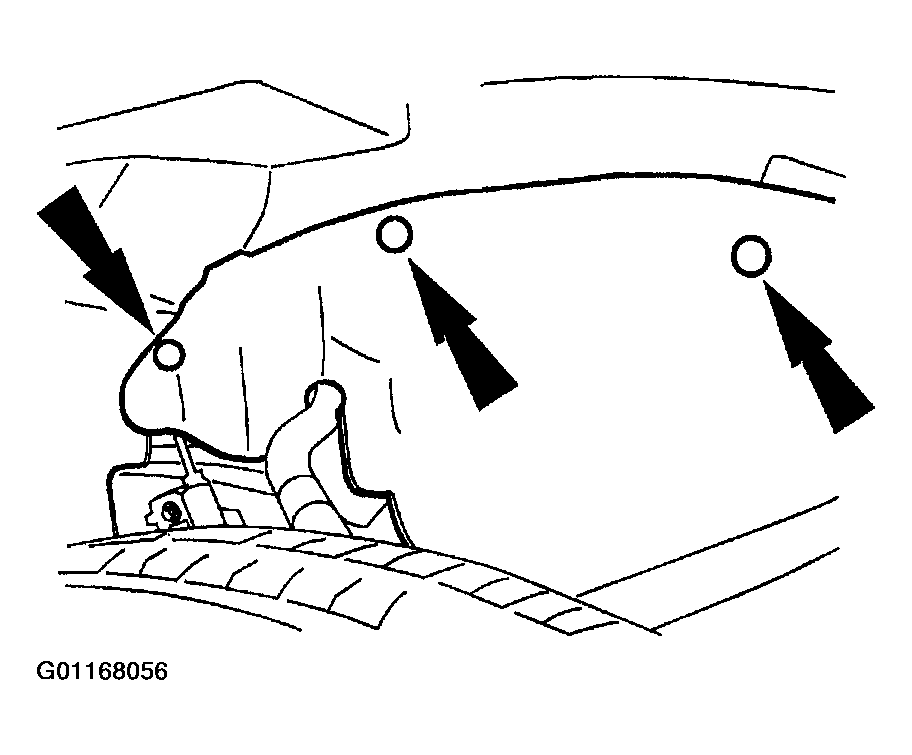

Fig 1: Removing Right Inner Fender Splash Shield Pushpins
Courtesy of MAZDA MOTORS CORP.
Lower the vehicle.

NOTE: Right hand shown, left hand similar.

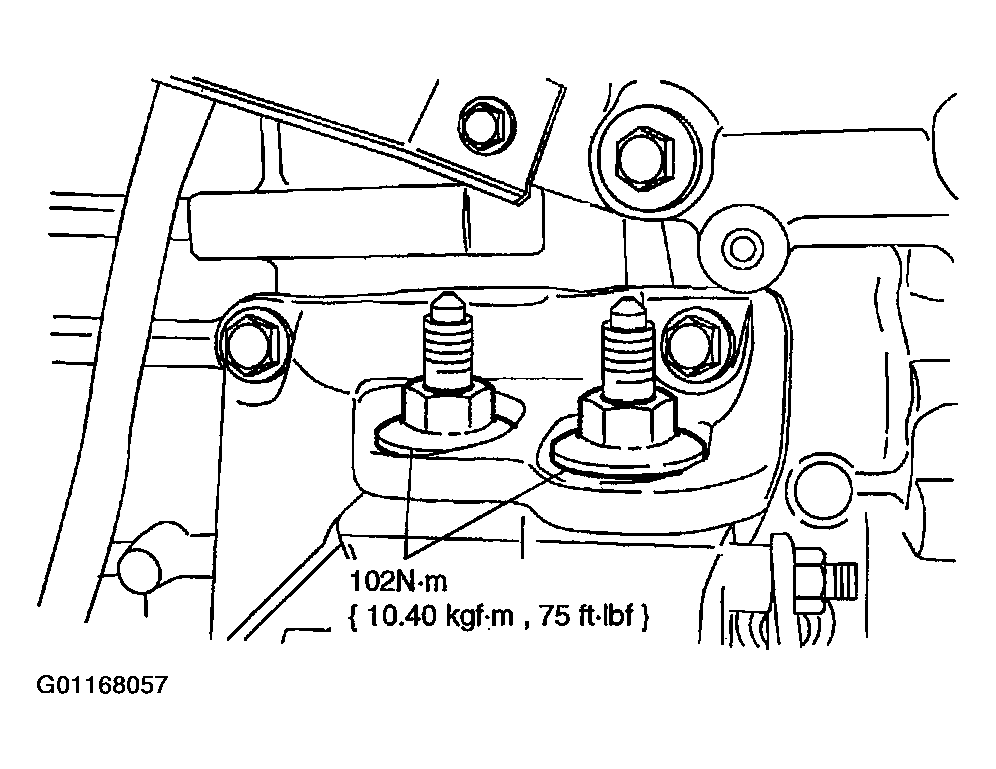

Fig 2: Removing Engine Support Insulator Nuts

Courtesy of MAZDA MOTORS CORP.

Remove the RH and LH engine support insulator nuts.
Install the Lifting Eyes.
Raise the engine with the 3-Bar Engine Support Kit.
Raise and support the vehicle.

NOTE: Right hand shown, left hand similar.

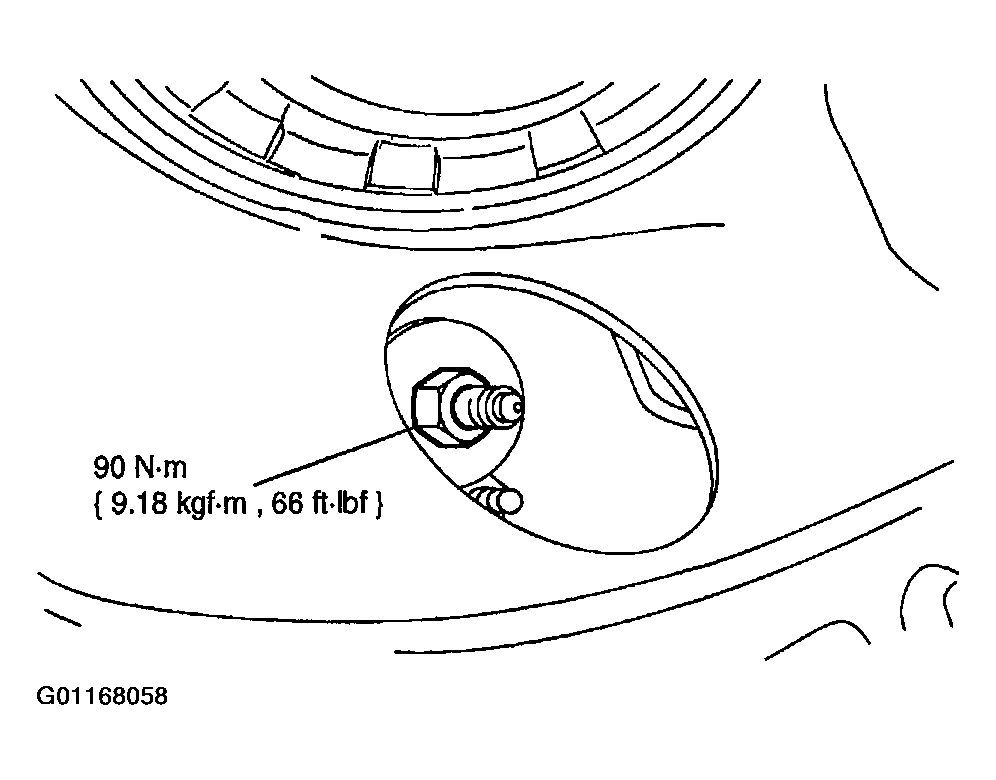

Fig 3: Removing Engine Support Insulators

Courtesy of MAZDA MOTORS CORP.

Remove the nuts and the engine support insulators.
Install in the reverse order of removal.
