Engine Front Cover Removal/Installation: Removal

WARNING: This page is about a different car, the 2002 Mazda B2300 and 2001 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the fan and shroud. See COOLING FAN MOTOR .
  3. Remove the drive belt. See DRIVE BELT REMOVAL/INSTALLATION .
  4. Remove the valve cover. See VALVE COVER REMOVAL/INSTALLATION .
  5. Set No. 1 piston to TDC and install the Camshaft Alignment Plate (303-376)  .

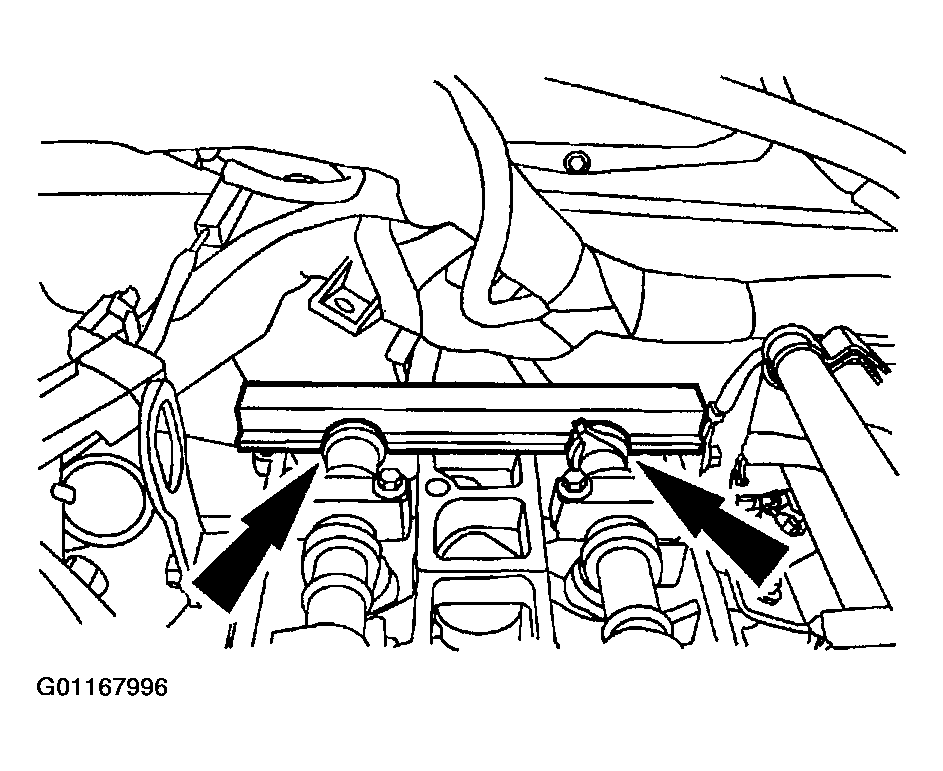

    Fig 1: Installing Camshaft Alignment Plate
    G01167996Courtesy of MAZDA MOTORS CORP.
  6. Remove the plug for the crankshaft timing peg.

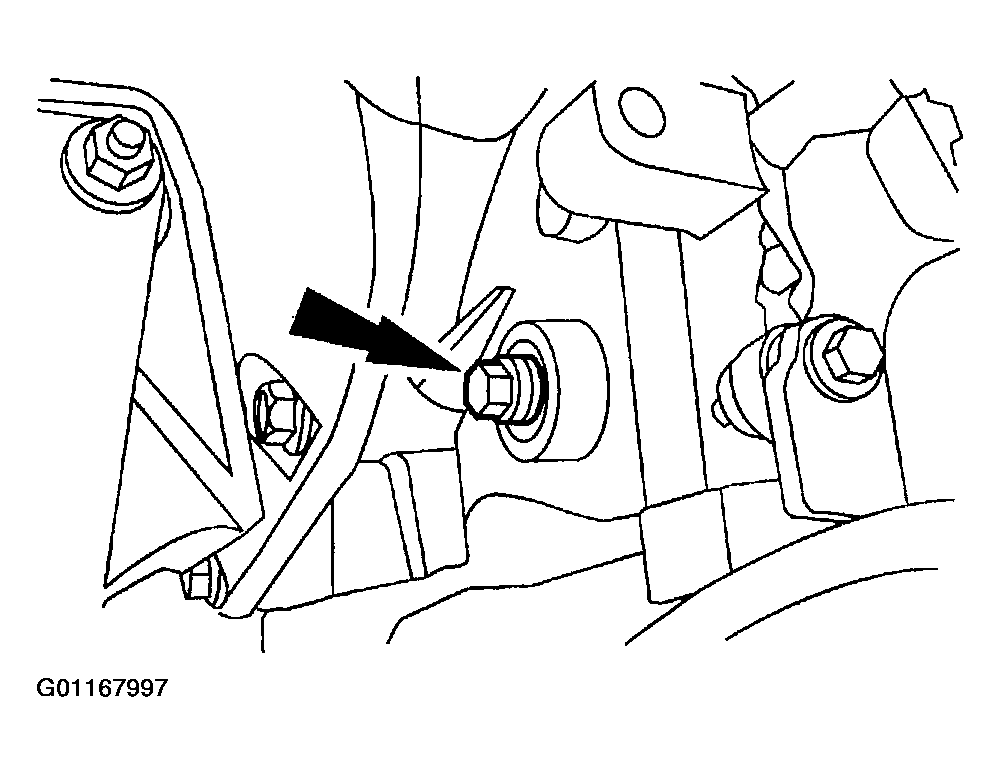

    Fig 2: Removing Plug For Crankshaft Timing Peg
    G01167997Courtesy of MAZDA MOTORS CORP.
  7. Install the Engine Timing Peg (ST 303-507)  .

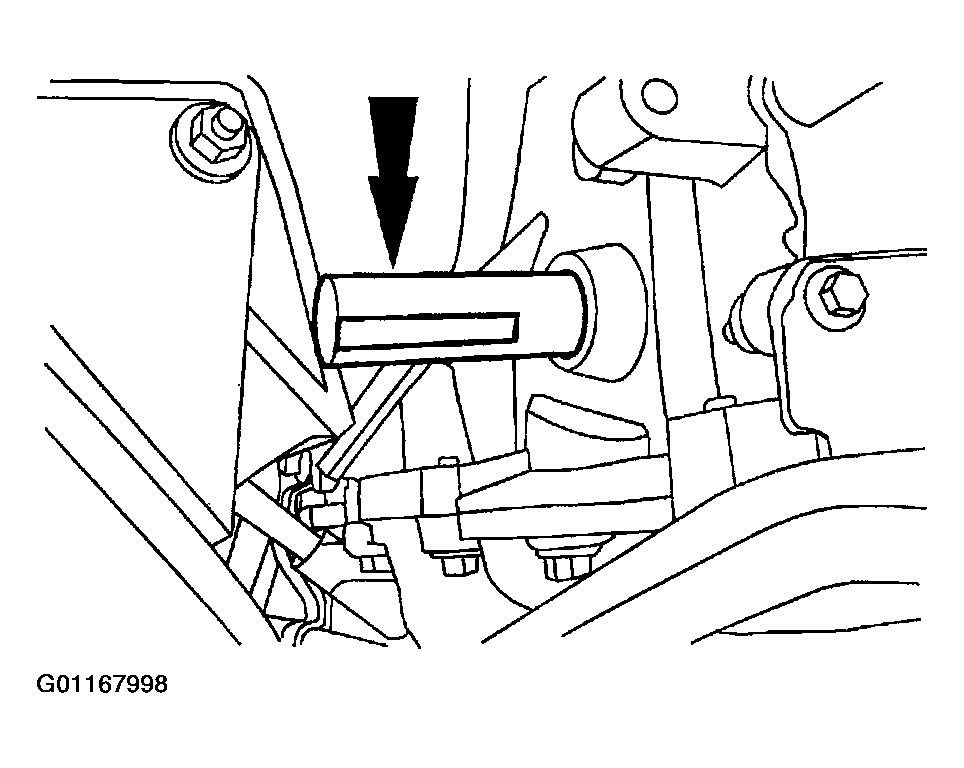

    Fig 3: Crankshaft Timing Peg
    G01167998Courtesy of MAZDA MOTORS CORP.
  8. Install an M6 bolt into the crankshaft pulley to verify the engine timing.

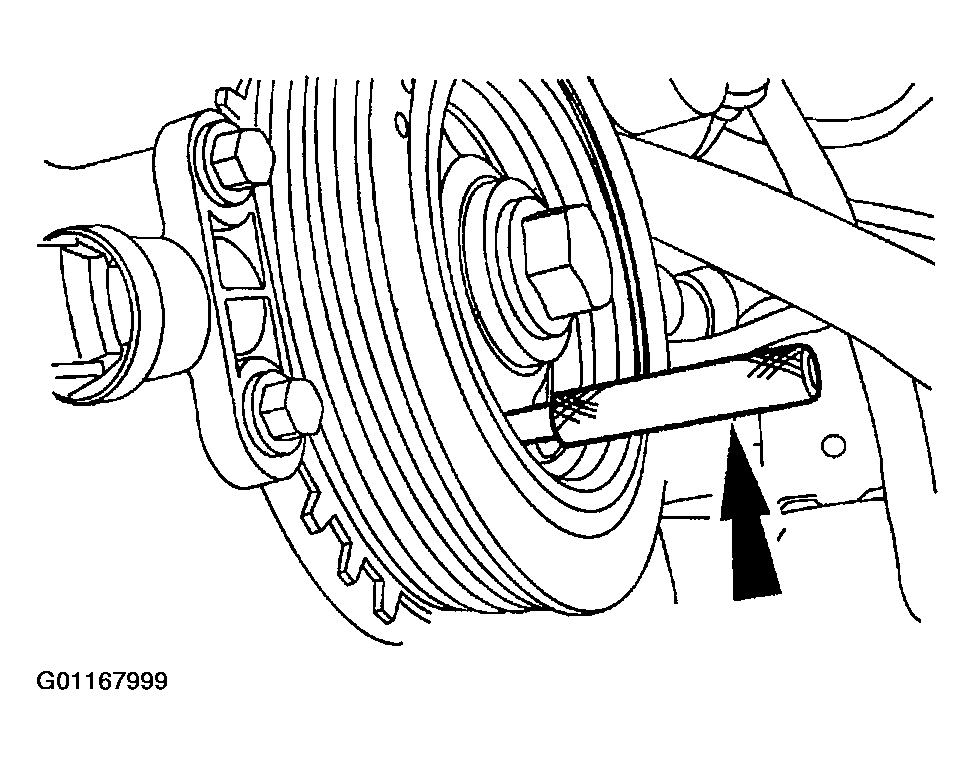

    Fig 4: Installing Bolt Into Crankshaft Pulley To Verify Engine Timing
    G01167999Courtesy of MAZDA MOTORS CORP.
  9. Remove the bolt and the camshaft pulley.

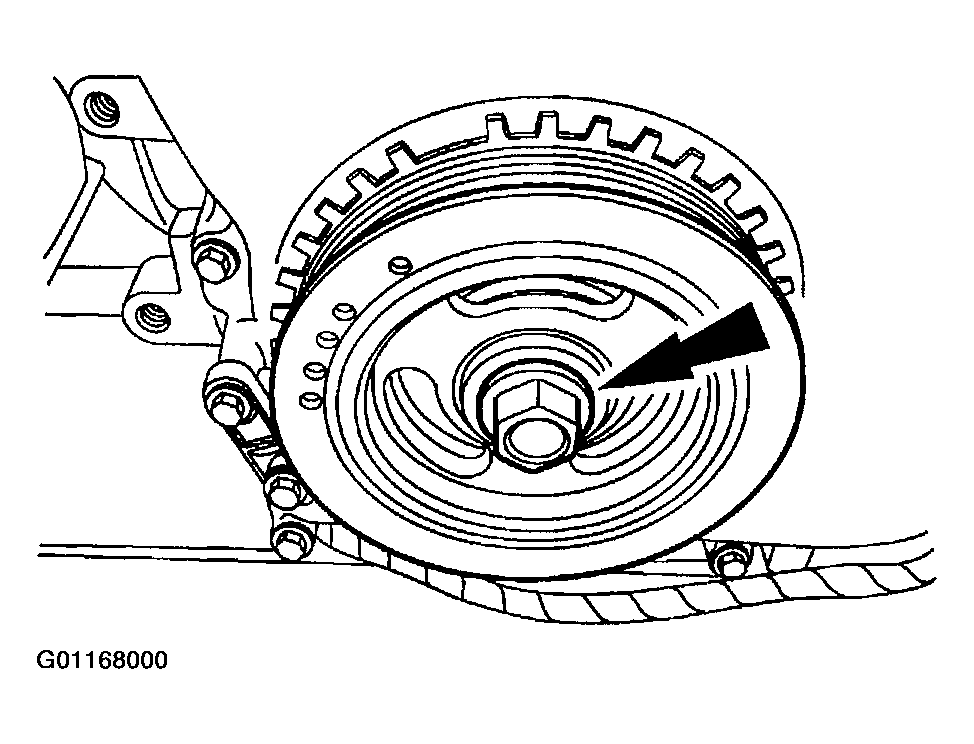

    Fig 5: Removing Camshaft Pulley
    G01168000Courtesy of MAZDA MOTORS CORP.
  10. Disconnect the crankshaft position sensor.

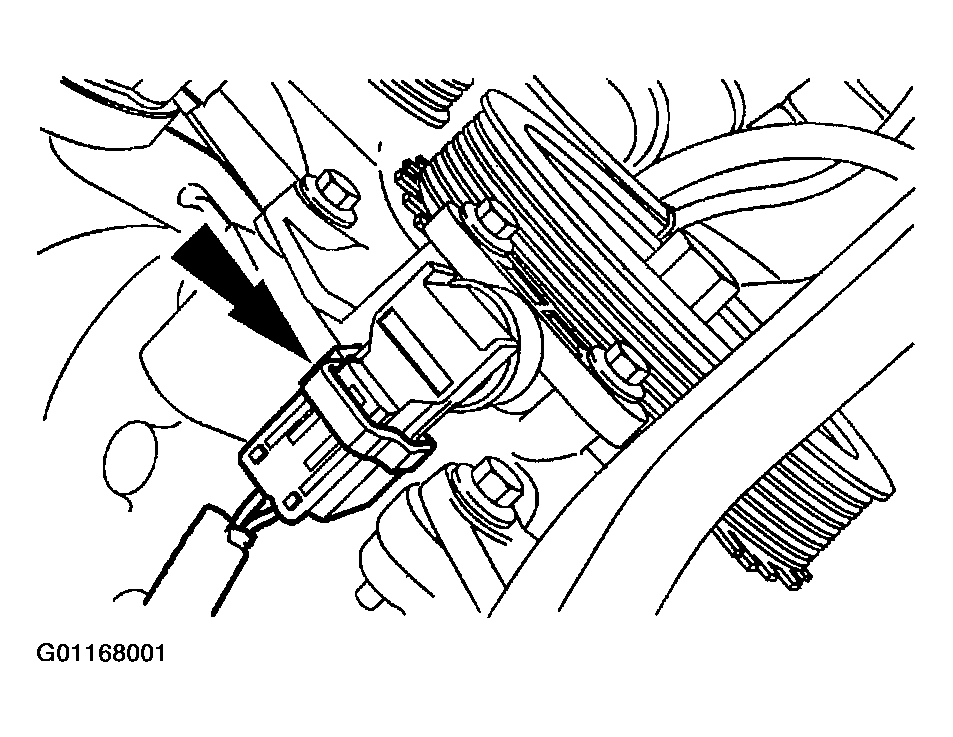

    Fig 6: Disconnecting Crankshaft Position Sensor
    G01168001Courtesy of MAZDA MOTORS CORP.
  11. Remove the crankshaft position sensor.

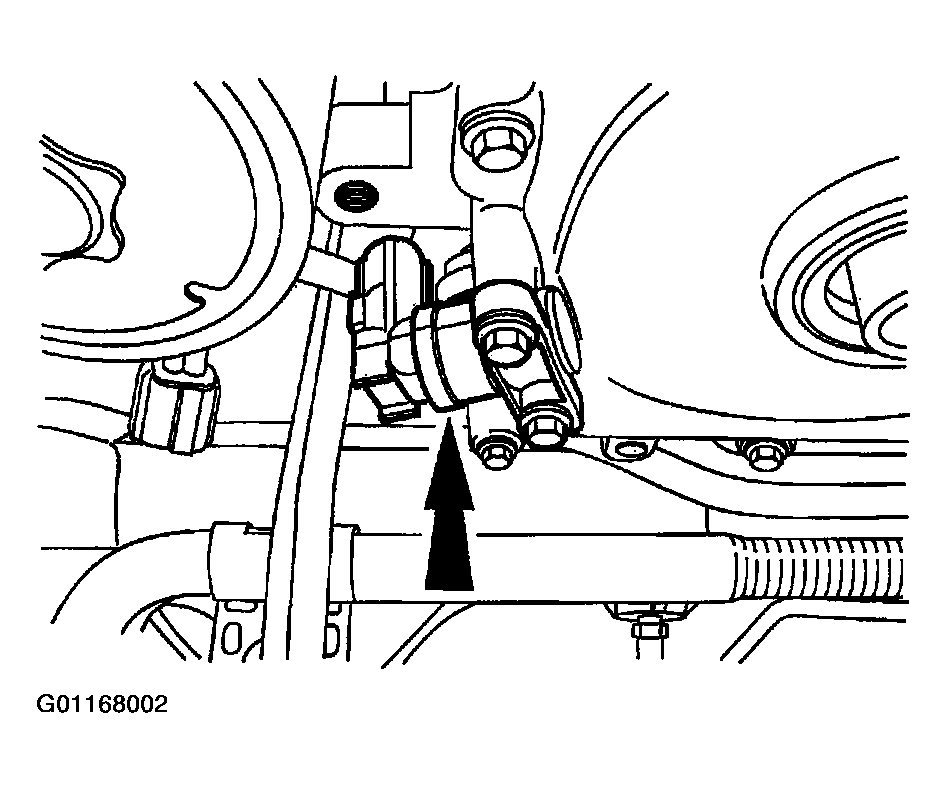

    Fig 7: Removing Crankshaft Position Sensor
    G01168002Courtesy of MAZDA MOTORS CORP.
  12. Remove the belt tensioner.

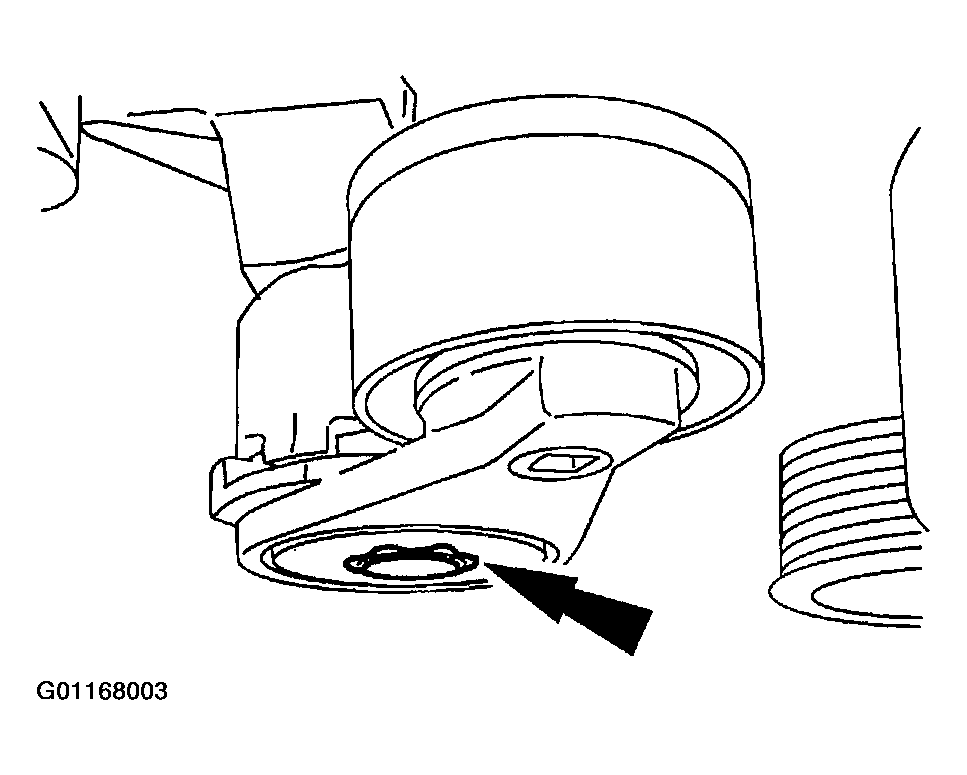

    Fig 8: Removing Belt Tensioner
    G01168003Courtesy of MAZDA MOTORS CORP.
  13. Remove the water pump pulley.

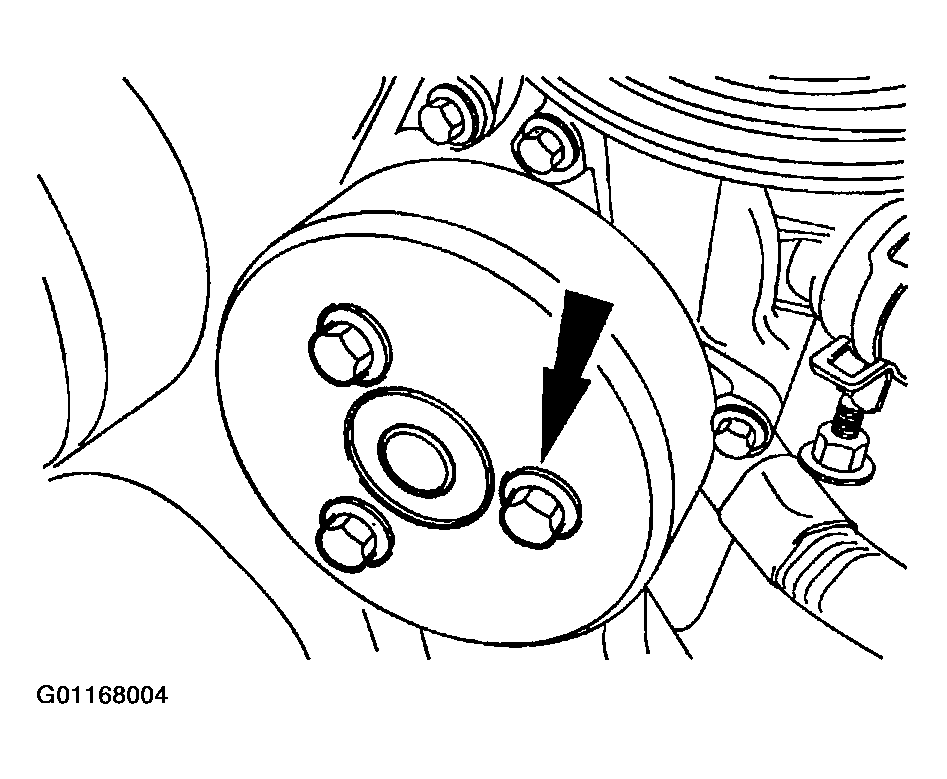

    Fig 9: Removing Water Pump Pulley
    G01168004Courtesy of MAZDA MOTORS CORP.
  14. Disconnect the power steering high pressure hose. Remove the nylon O-ring.

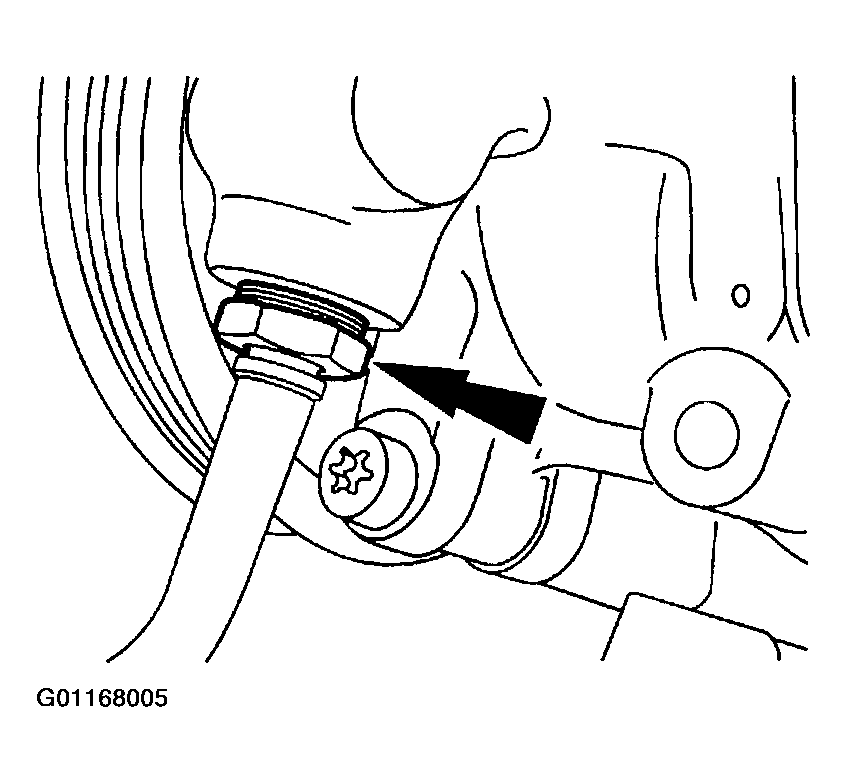

    Fig 10: Disconnecting Power Steering High Pressure Hose
    G01168005Courtesy of MAZDA MOTORS CORP.
  15. Disconnect the power steering return hose.

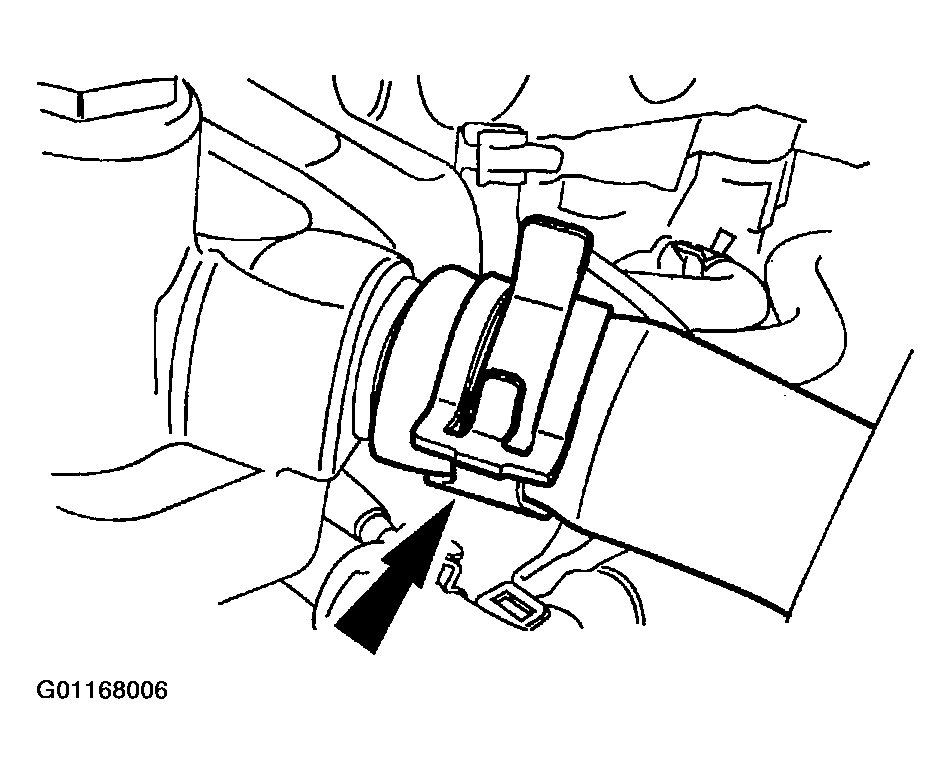

    Fig 11: Disconnecting Power Steering Return Hose
    G01168006Courtesy of MAZDA MOTORS CORP.
  16. Remove the bolt and the power steering pump.

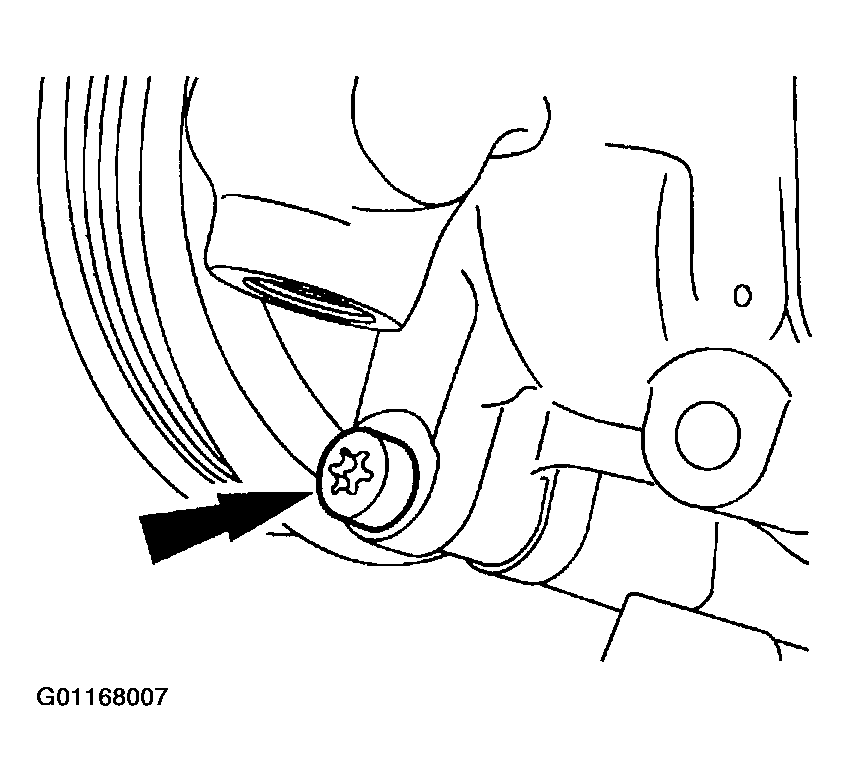

    Fig 12: Removing Power Steering Pump
    G01168007Courtesy of MAZDA MOTORS CORP.
    17. NOTE: This step is needed only if a new front cover is being installed.

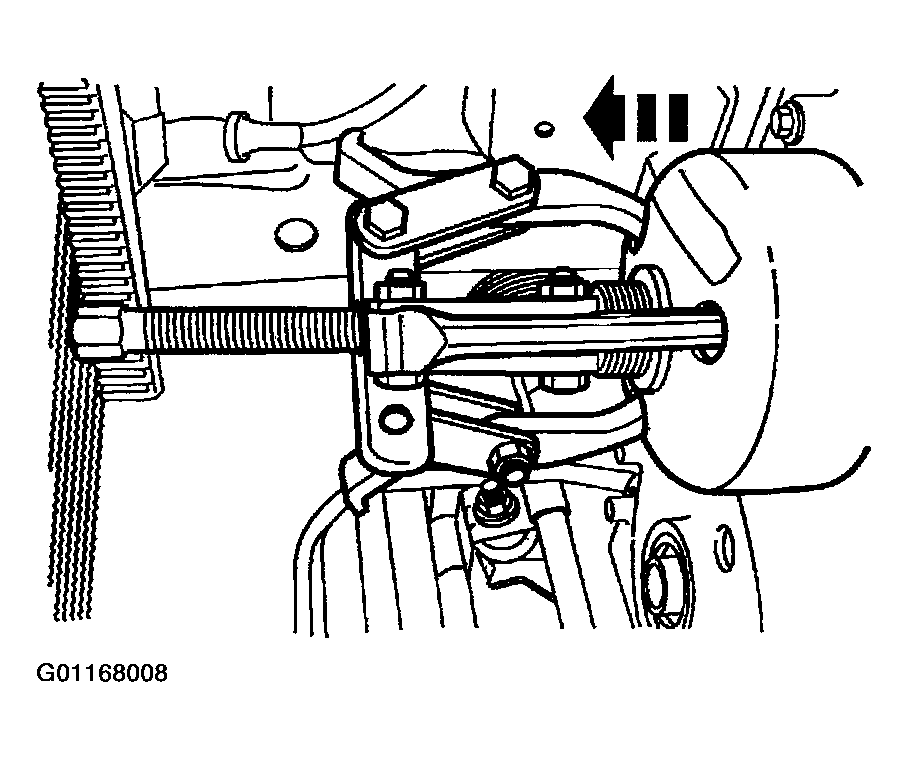

    Fig 13: Removing Fan Drive Pulley
    G01168008Courtesy of MAZDA MOTORS CORP.
    CAUTION: There is one bolt behind the cooling fan drive pulley. This bolt can be accessed by lining up one of the holes in the pulley with the bolt.
  17. Using a three-jaw puller, remove the fan drive pulley.
  18. Remove the bolts and the engine front cover.

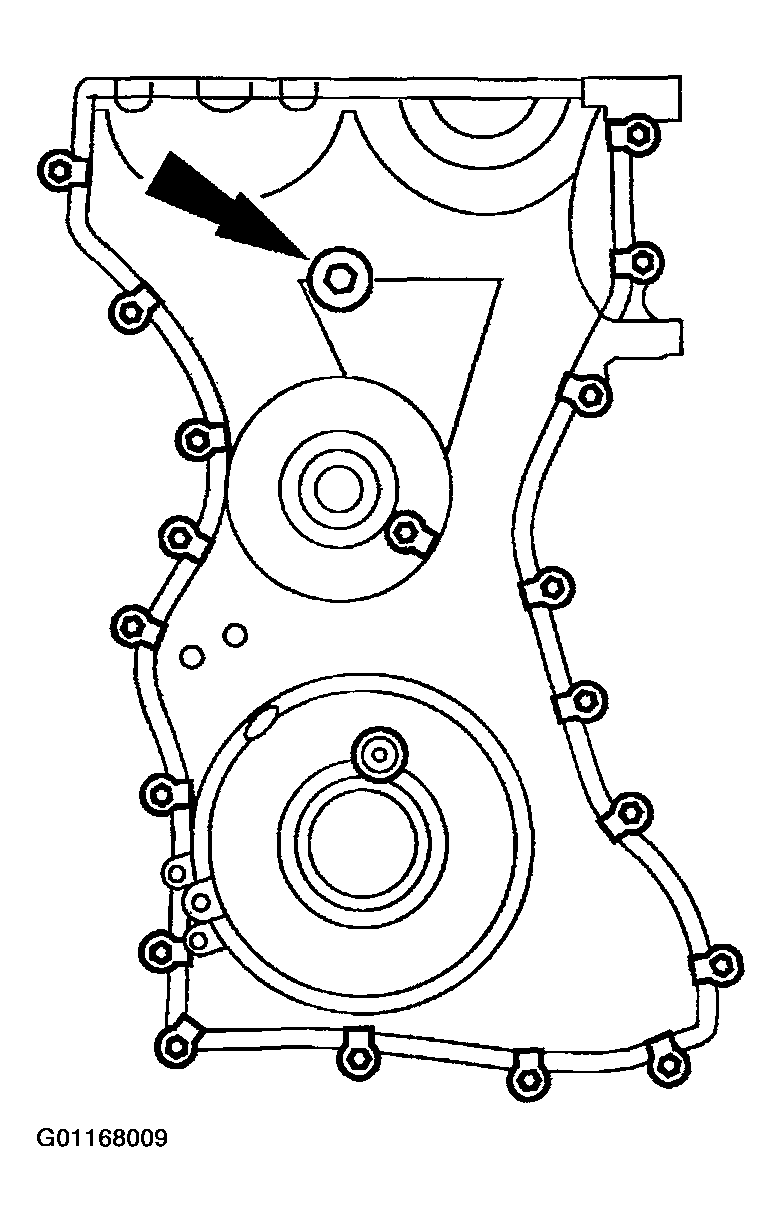

    Fig 14: Removing Engine Front Cover
    G01168009Courtesy of MAZDA MOTORS CORP.
