Rear Axle Speed Sensor Rotor (4WABS) Removal/Installation
>>
Ring Gear Removal Note
Ring Gear Removal Note
Insert a punch in the bolt holes and drive the ring gear off.

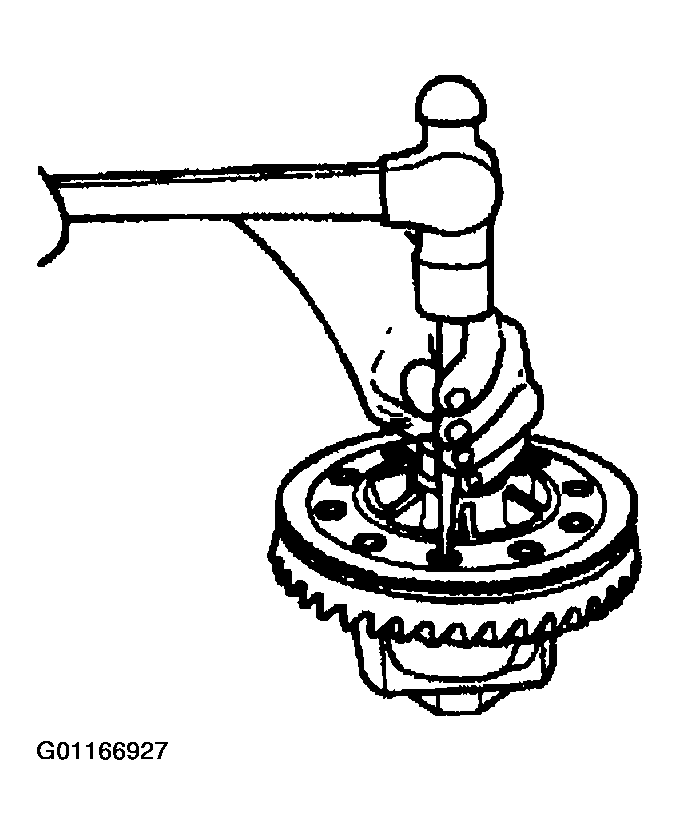

Fig 1: Removing Ring Gear
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
