Removal Note

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right-hand driveaxle shaft. See FRONT DRIVE AXLE SHAFT REMOVAL/INSTALLATION .
Remove the right-hand axle shaft.

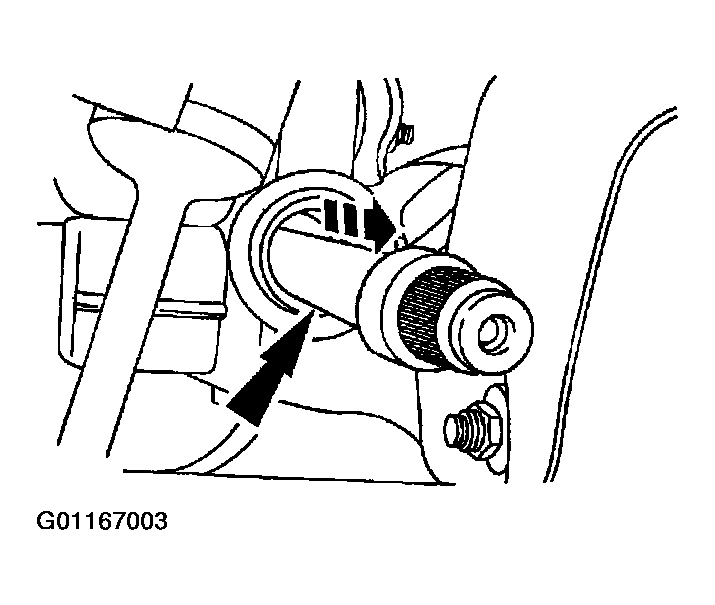

Fig 1: Removing Right-Hand Axle Shaft
Courtesy of MAZDA MOTORS CORP.
Use Impact Slide Hammer ST 49-0223-630B and Converter Seal Remover 307-309 (T94P-77001-BH) or equivalent to remove the axle seal.

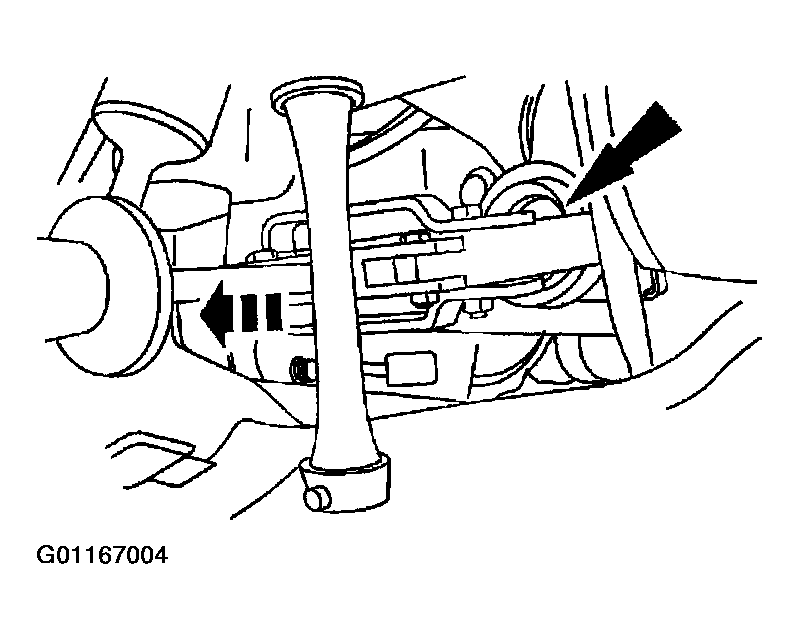

Fig 2: Removing Axle Seal
Courtesy of MAZDA MOTORS CORP.
Use Axle Bearing Remover ST 49 UN01 032 , Impact Slide Hammer ST 49-0223-630B and Adapter ST 49 UN11 011 to remove the axle tube bearing.

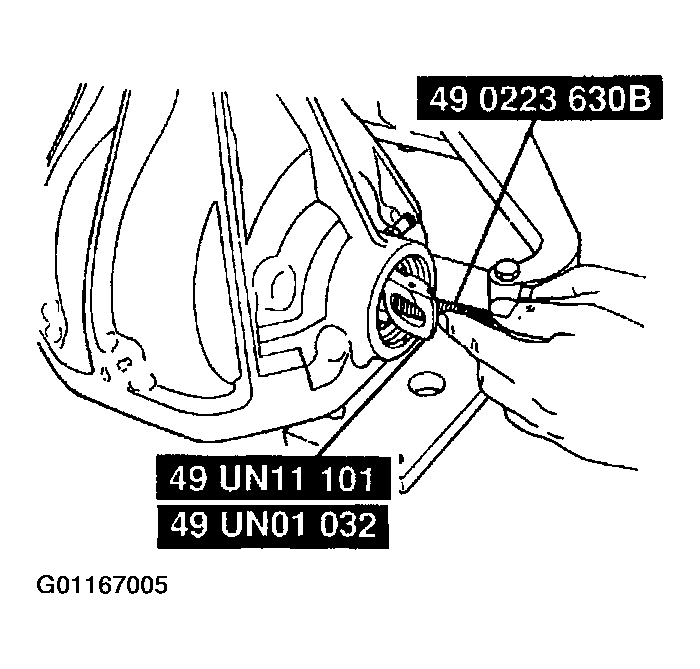

Fig 3: Removing Axle Tube Bearing
Courtesy of MAZDA MOTORS CORP.
Clean the bearing and seal surfaces of any foreign debris.
