Propeller Shaft Indexing

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If propeller shaft components are replaced and propeller shaft vibration is encountered after installation, index the propeller shaft.

If indexing the propeller shaft does not eliminate the vibration, balance the propeller shaft. See PROPELLER SHAFT RUNOUT & BALANCE  .

  1. Raise and support the vehicle.
  2. Disconnect the rear propeller shaft. See REAR PROPELLER SHAFT (4X2) REMOVAL/INSTALLATION  or see REAR PROPELLER SHAFT (4X4) REMOVAL/INSTALLATION  .
  3. Rotate the rear companion flange.

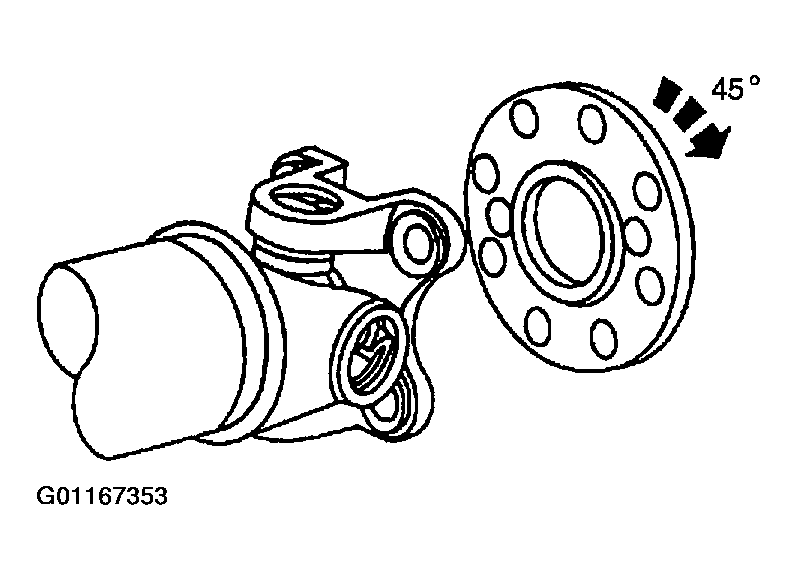

    Fig 1: Rotating Rear Companion Flange
    G01167353Courtesy of MAZDA MOTORS CORP.
  4. Connect the propeller shaft.

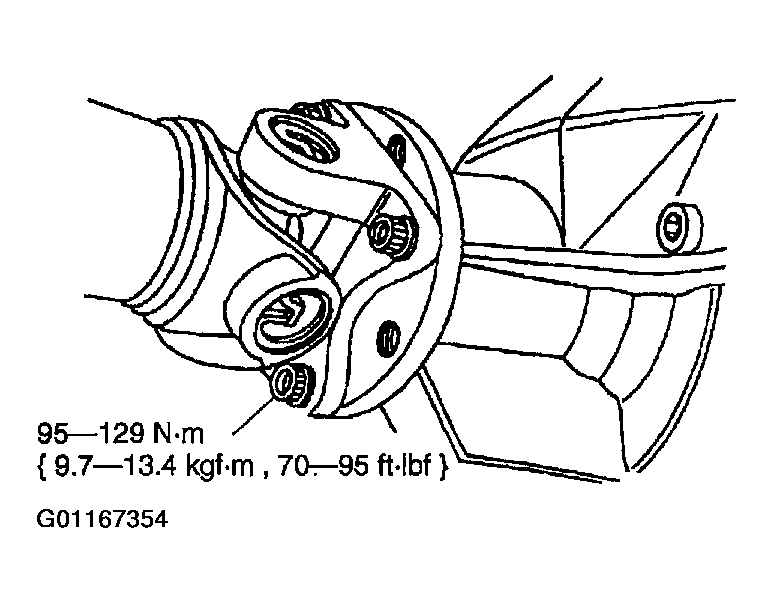

    Fig 2: Connecting Propeller Shaft
    G01167354Courtesy of MAZDA MOTORS CORP.
  5. Lower the vehicle and test drive.
  6. Repeat procedure if necessary.
