Pinpoint Test 5: Unable To Enter Self-Test

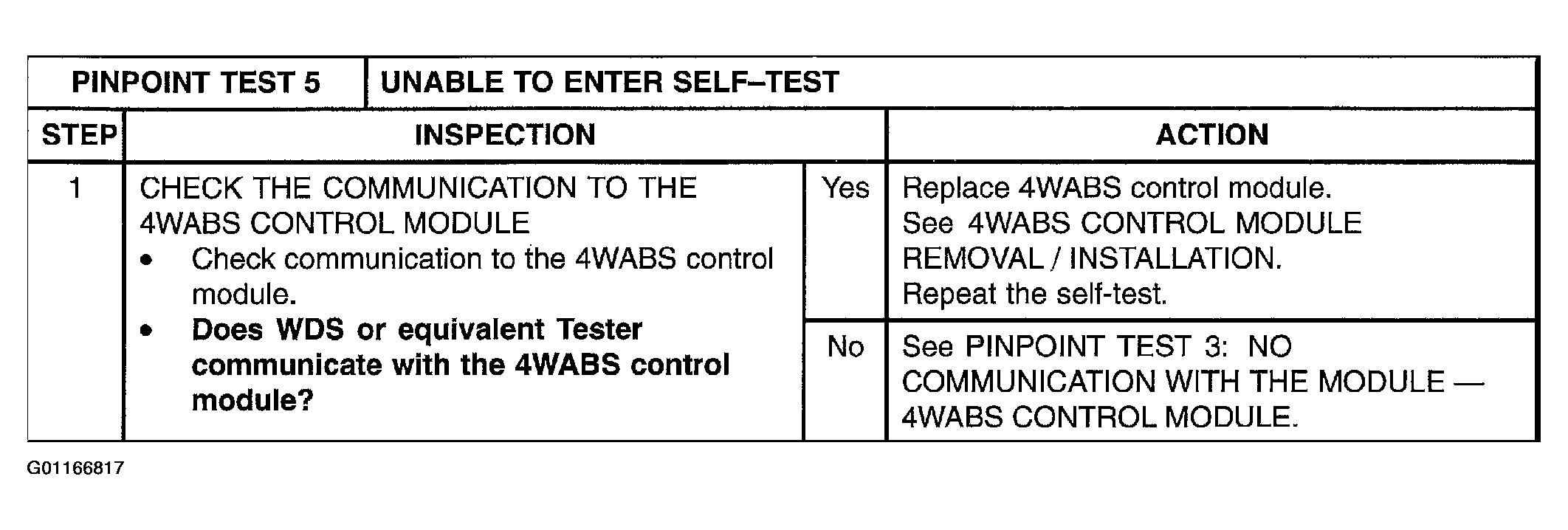

Fig 1: Pinpoint Test 5: Unable To Enter Self-Test

G01166817

Courtesy of MAZDA MOTORS CORP.
