Disassembly Note 2/4 Accumulator Plug: Notes

  1. Remove the 2/4 accumulator plug by using a screwdriver.

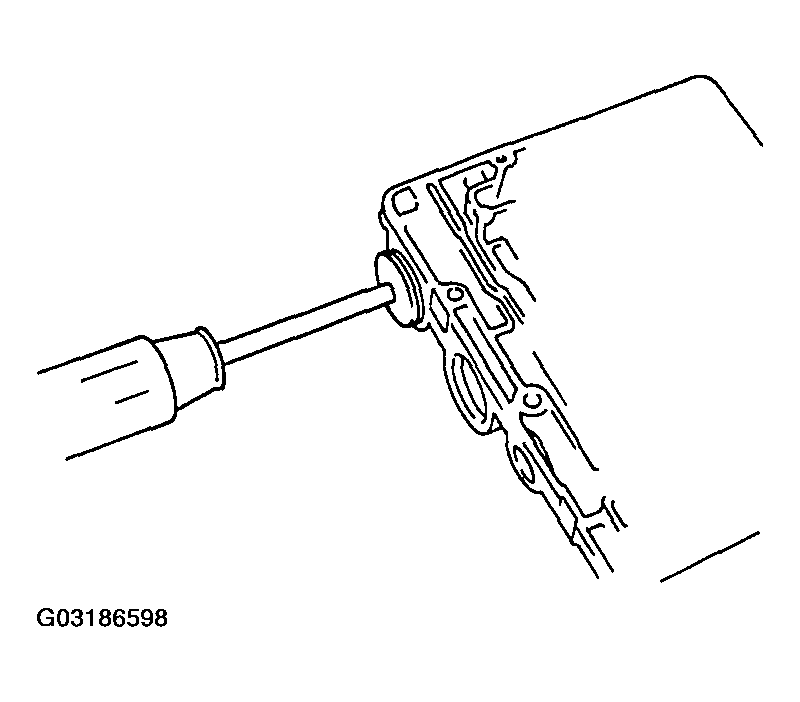

    Fig 1: Removing 2/4 Accumulator Plug
    G03186598Courtesy of MAZDA MOTORS CORP.
  2. Remove the 2/4 accumulator plug seal. Discard the seal.

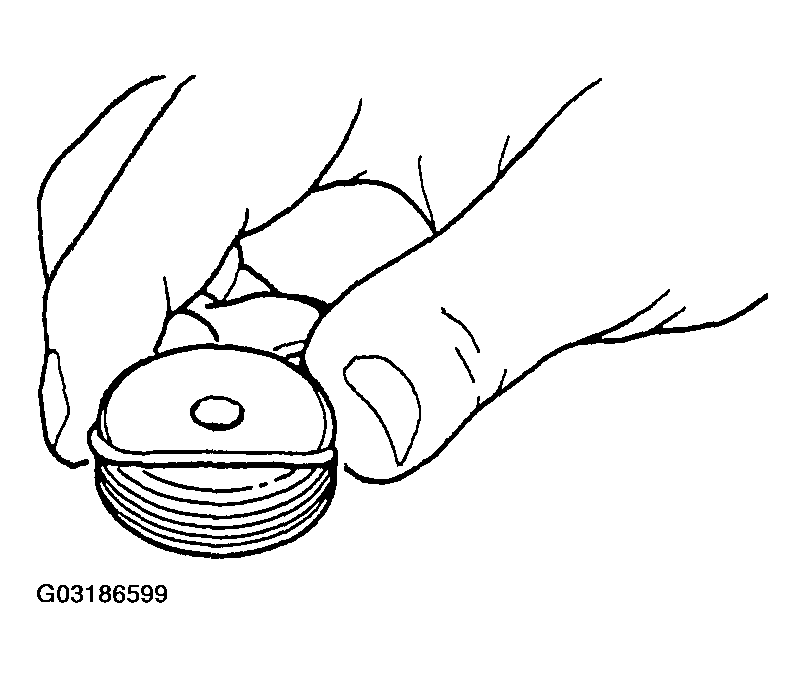

Fig 2: Removing 2/4 Accumulator Plug Seal
G03186599Courtesy of MAZDA MOTORS CORP.
