Front Abs Wheel-Speed Sensor Removal/Installation

  1. Remove in the order indicated in the illustration.
  2. Install in the reverse order of removal.

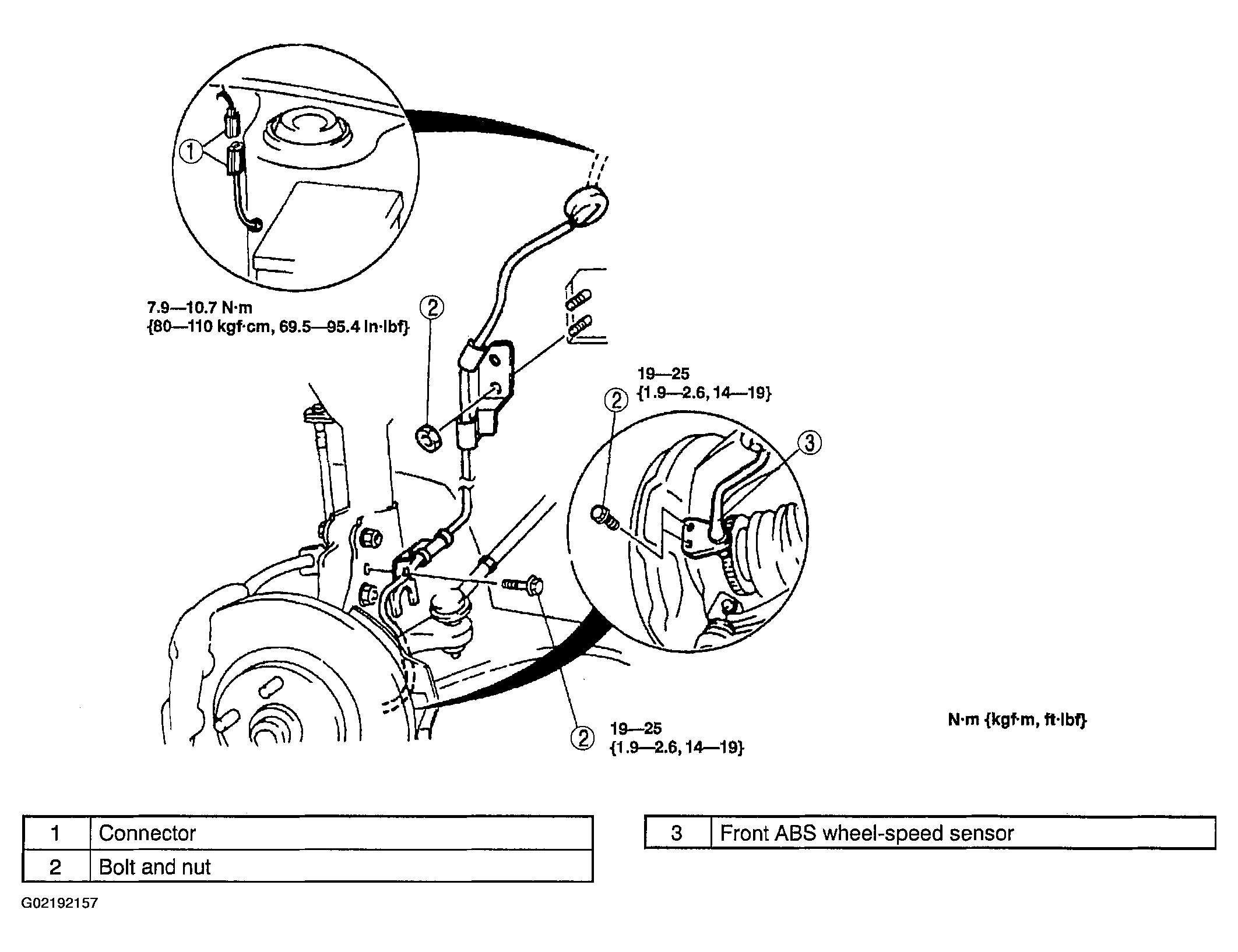

    Fig 1: Removing Front ABS Wheel-Speed Sensor
    G02192157
