On-Board Diagnostics

The ABS control module includes an on-board diagnostic function which checks for normal operation of the ABS.

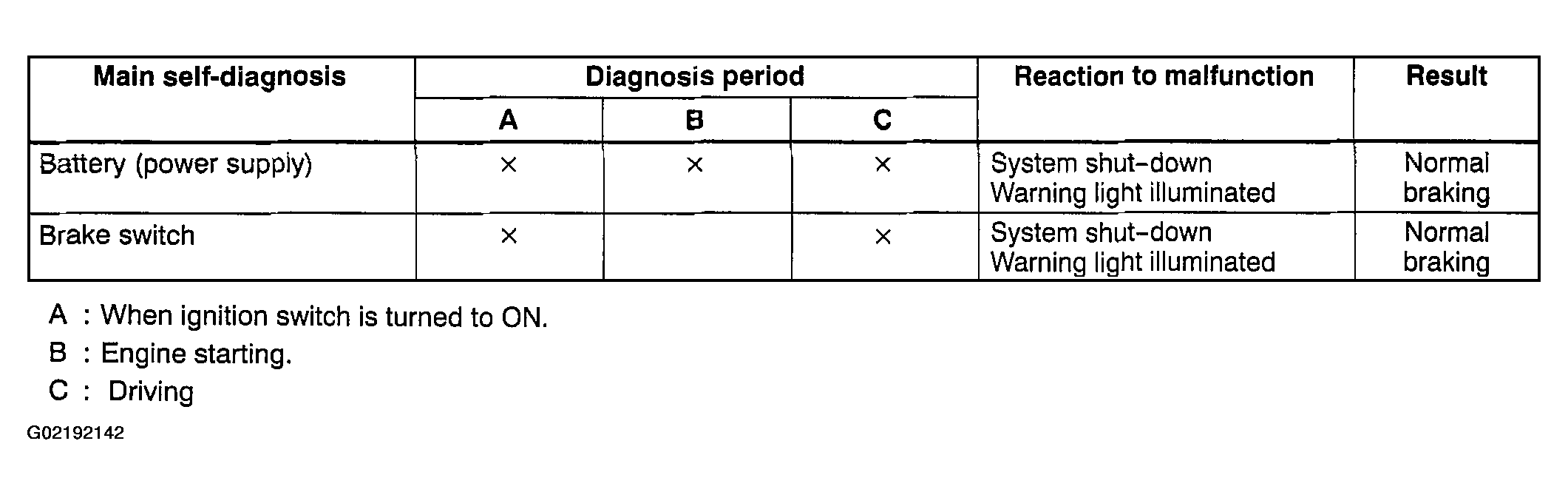

Fig 1: Self Diagnostics (1 Of 2)

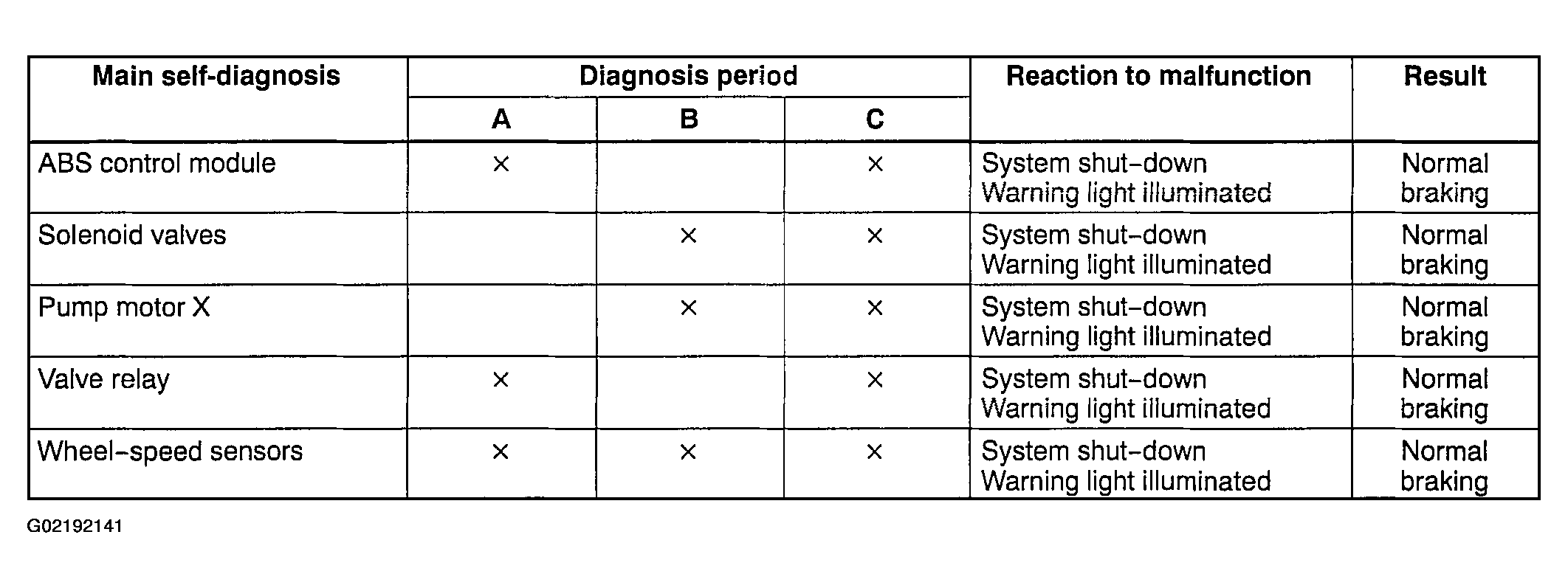

Fig 2: Self Diagnostics (2 Of 2)
