Abs Hydraulic Unit And Control Module Removal/Installation: Notes
- Remove the charcoal canister.

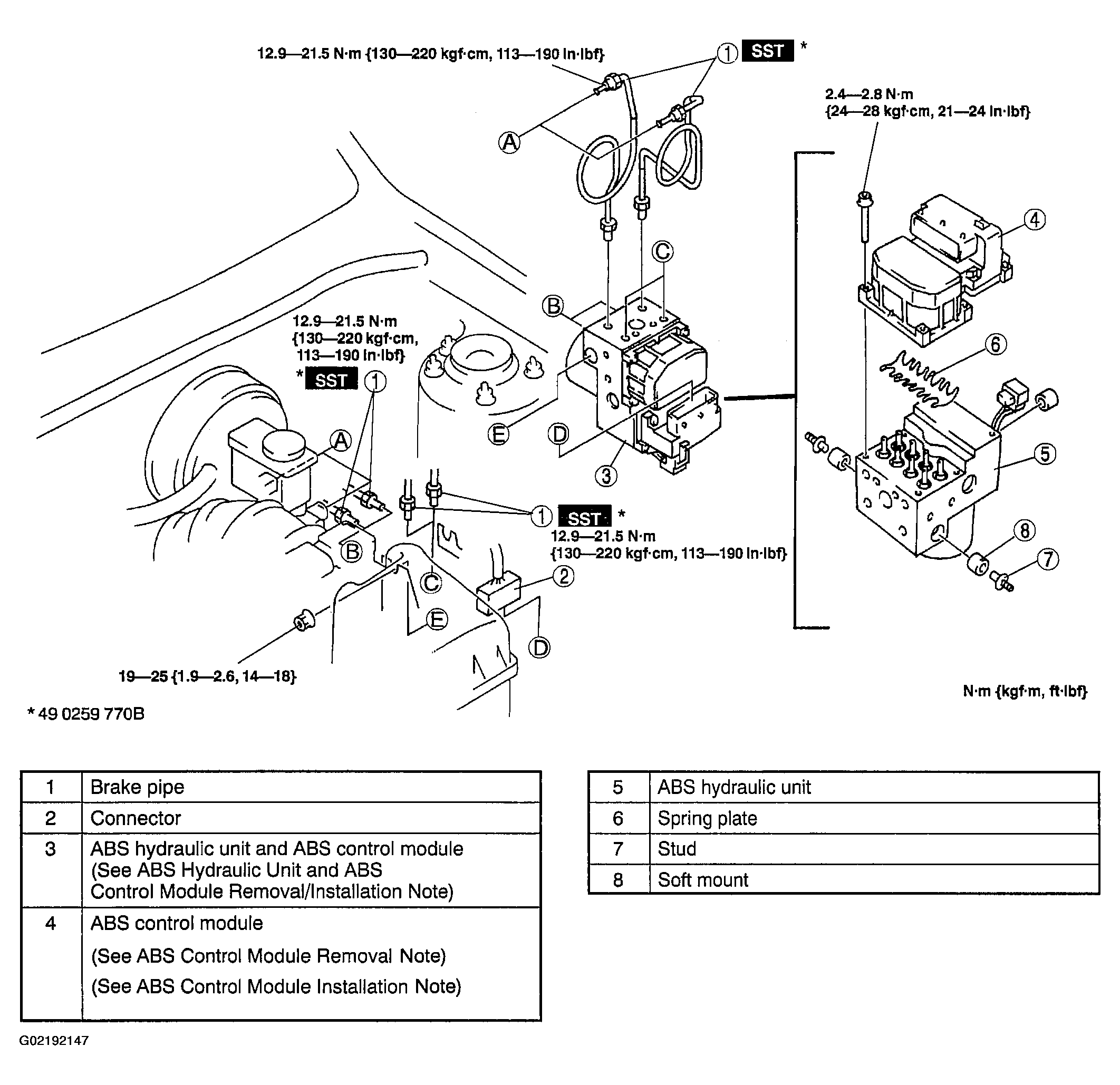

- Remove in the order indicated in the illustration.
- Install in the reverse order of removal.NOTE:
- The ABS hydraulic unit is not purchased as one part. Replace the ABS hydraulic unit and control module component as one assembly part if the ABS hydraulic unit is malfunctioning.
