Home >> Mazda >> 2001 >> 626 ES, 2.5 D, Standard >> Repair and Diagnosis >> Brakes >> Anti-Lock/Traction Control >> Abs And TCS On-Board Diagnosis >> PID/Data Monitor Table

PID/Data Monitor Table

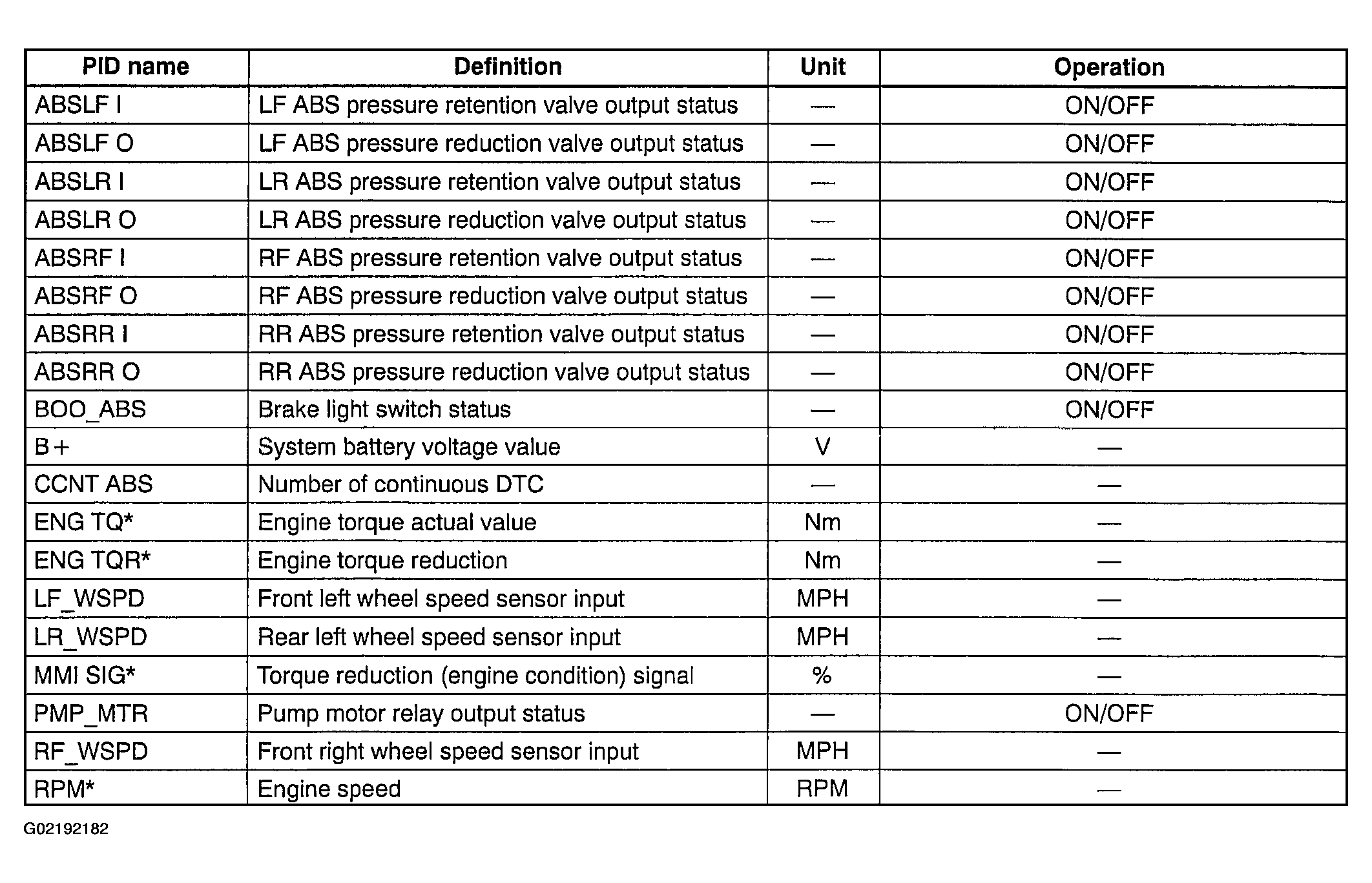

Fig 1: PID/DATA Monitor Table (1 Of 2)

G02192182

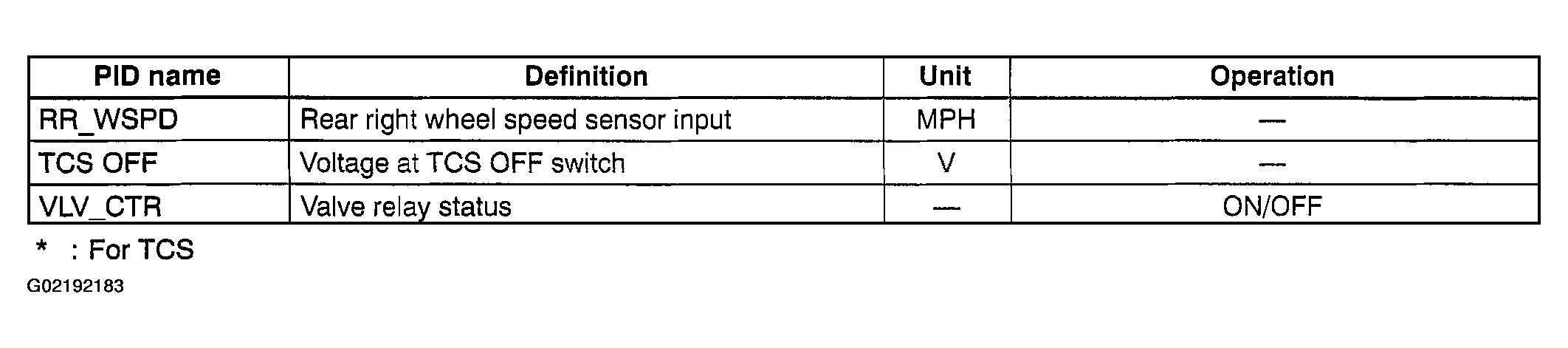

Fig 2: PID/DATA Monitor Table (2 Of 2)

G02192183
