Abs Harness And Input Signal Inspection

Disconnect the ABS CM connector with the ignition switch at OFF.
CAUTION:
- Be careful not to damage the terminals during inspection.
Insert a thin isolation plate to the short bar of the connector.
Attach a wire to the tester lead to avoid damaging the terminals then inspect voltage, resistance or continuity, referring to the table below.

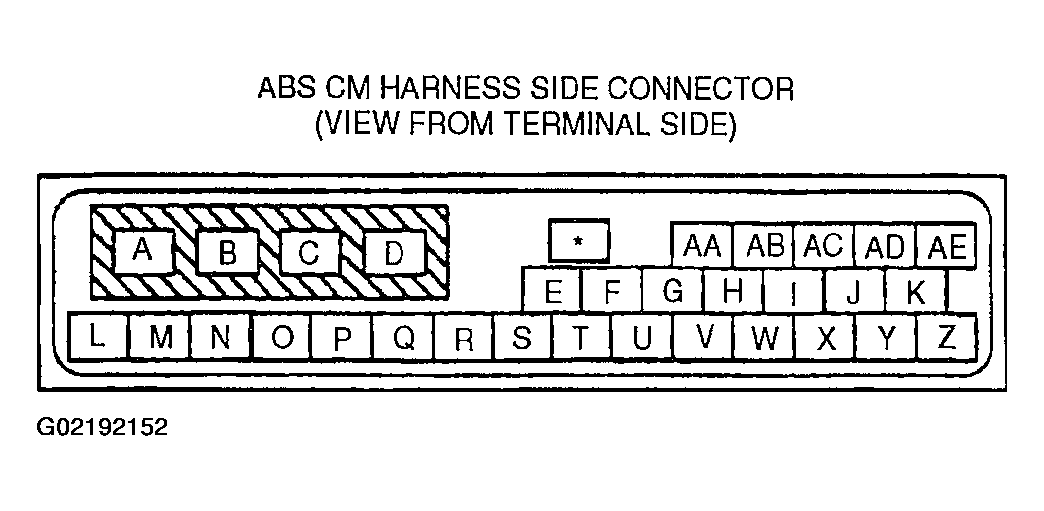

Fig 1: Terminal Side Connector View ABS Harness

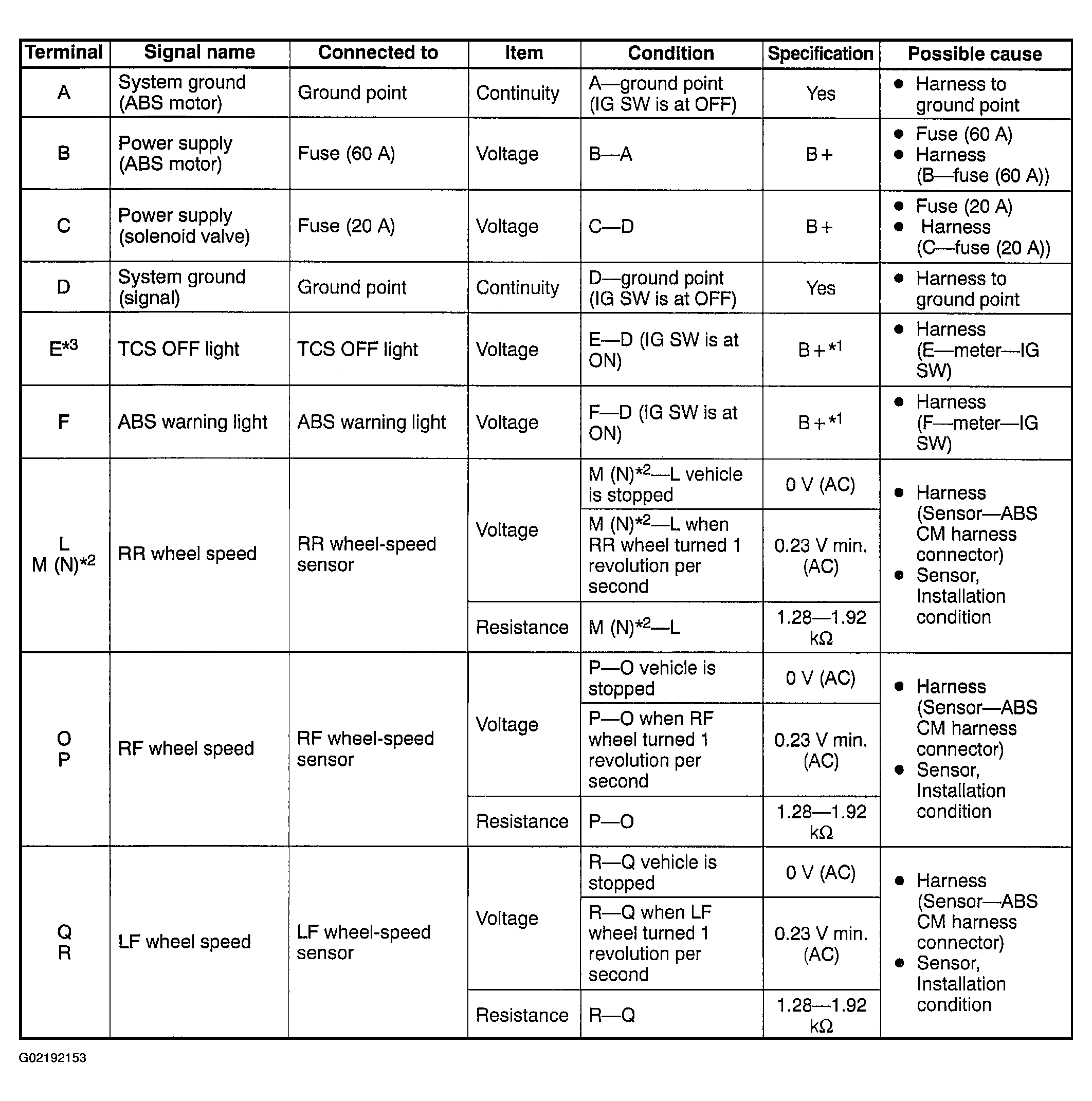

Fig 2: Testing ABS Harness Connector (1 Of 2)

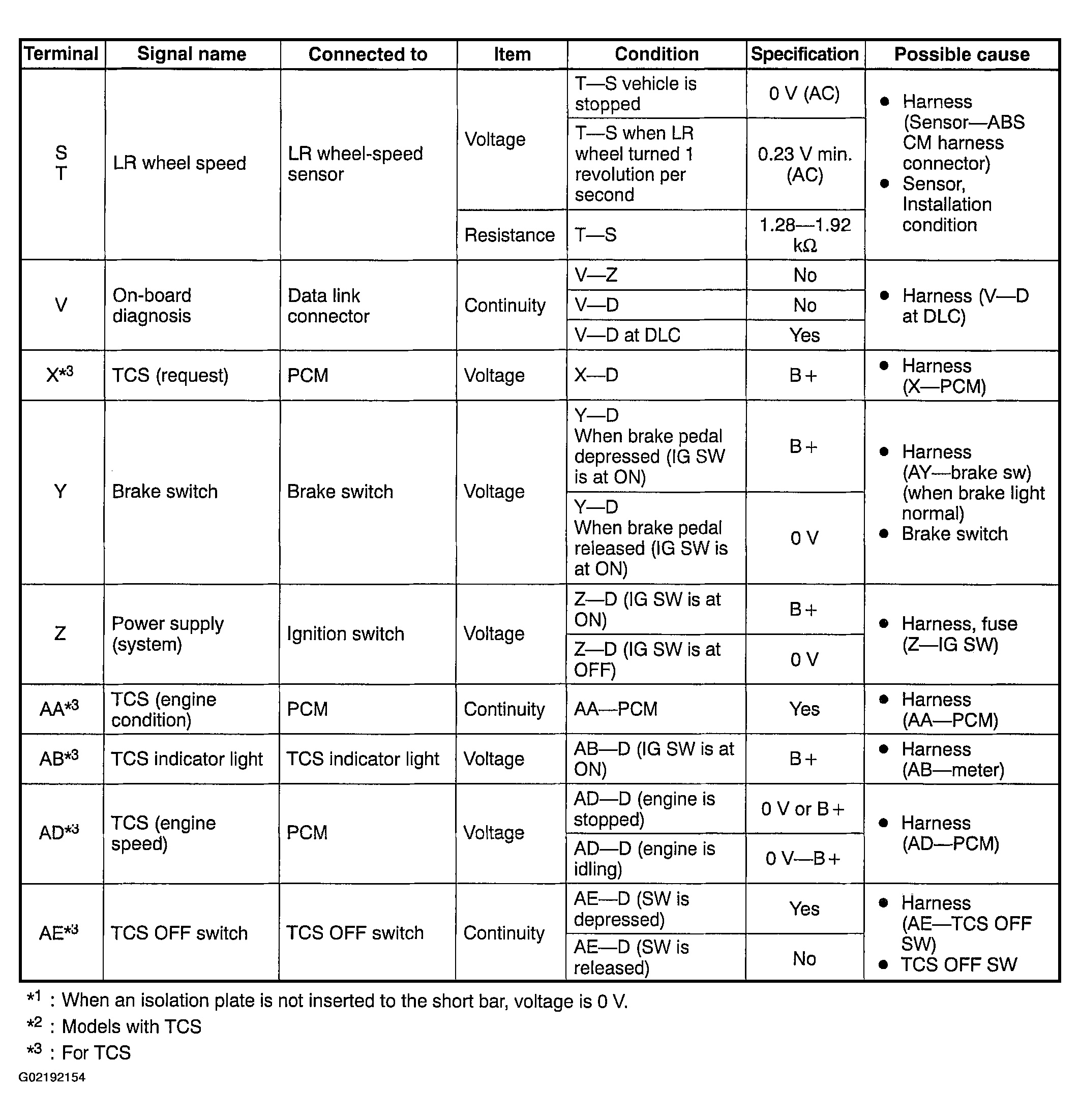

Fig 3: Testing ABS Harness Connector (2 Of 2)
