Function Diagram

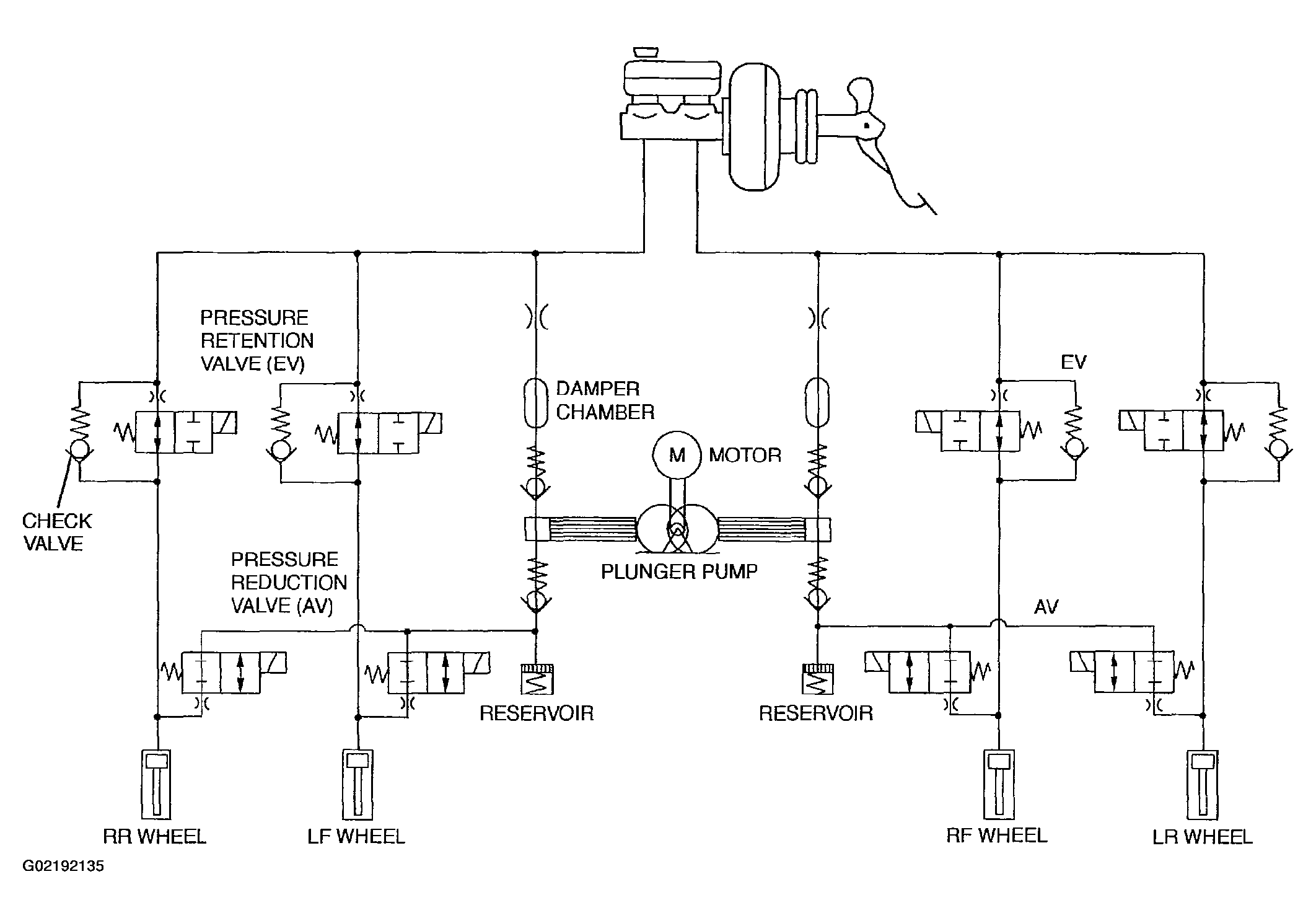

Fig 1: Function Diagram

The hydraulic unit uses signals from the ABS control module to control pressure of the brake fluid acting on the wheels.
The main components of the hydraulic unit are: solenoid valves, reservoir, pump, pump motor and damper.
