Terminal A and F Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Measure the wave pattern of panel light control switch terminals A and F using an oscilloscope.
- Oscilloscope setting:
  5 V/DIV (Y), 5 MS/div (X), DC range
Turn the light switch to the TENS or ON position.
Turn the panel light control switch to the brightest setting.

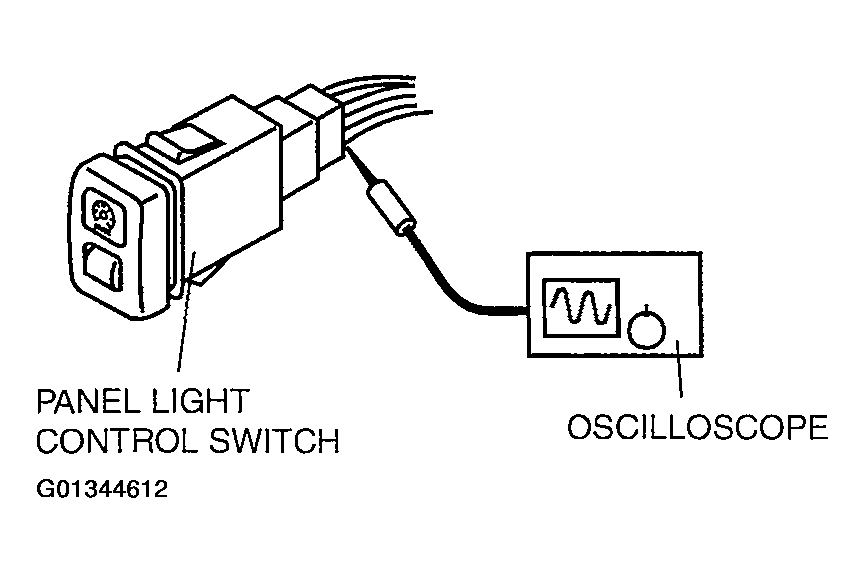

Fig 1: Measuring Wave Pattern Of Panel Light Control Switch Terminals
Courtesy of MAZDA MOTORS CORP.
Verify that the wave pattern is as shown in the figure.

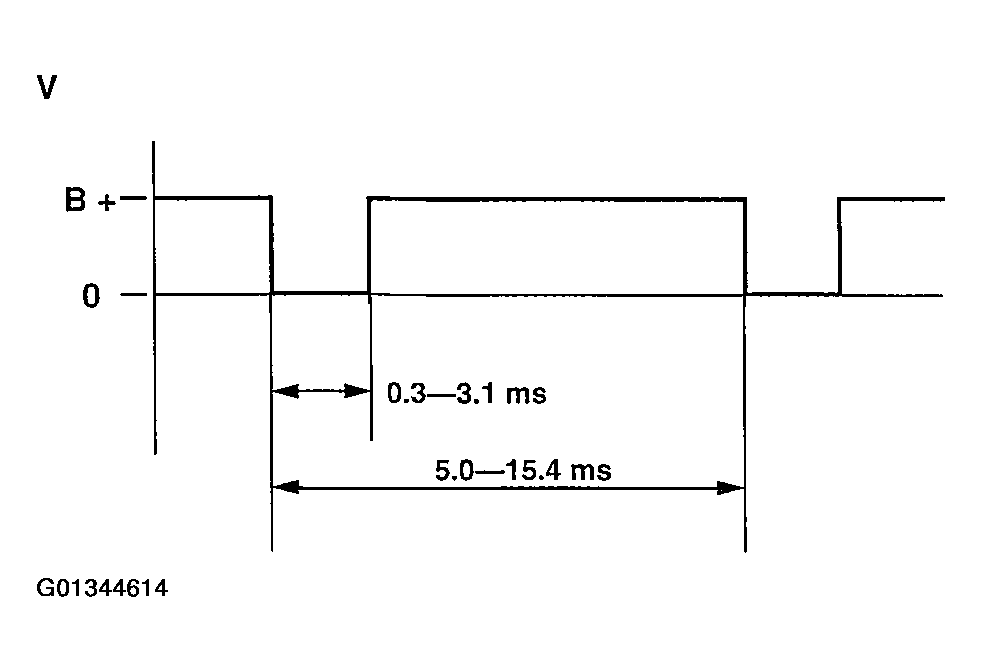

Fig 2: Verifying Wave Pattern
Courtesy of MAZDA MOTORS CORP.
Turn the panel light control switch to the darkest position and verify that the wave pattern is as shown in the figure.

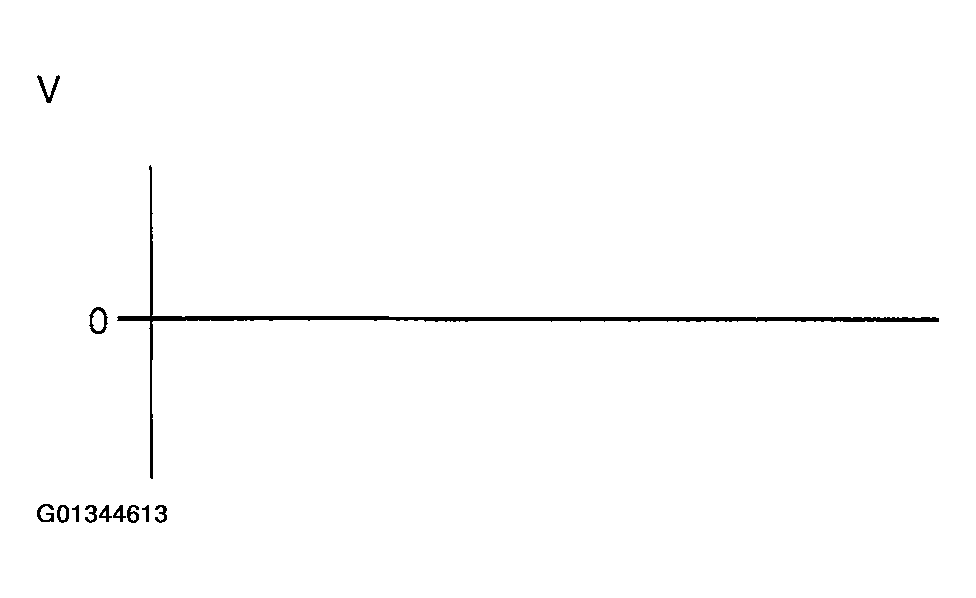

Fig 3: Verifying Wave Pattern
Courtesy of MAZDA MOTORS CORP.
