Door Lock Control Module

Locate door lock timer unit (door lock control module) behind right kick panel. See Fig 1 . Leave door lock control module connector attached. Using voltmeter, backprobe at specified terminals of door lock control module harness connector. See Fig 2 . If voltage measurements are not as specified, check component and wiring. If component and wiring are okay, replace door lock control module.

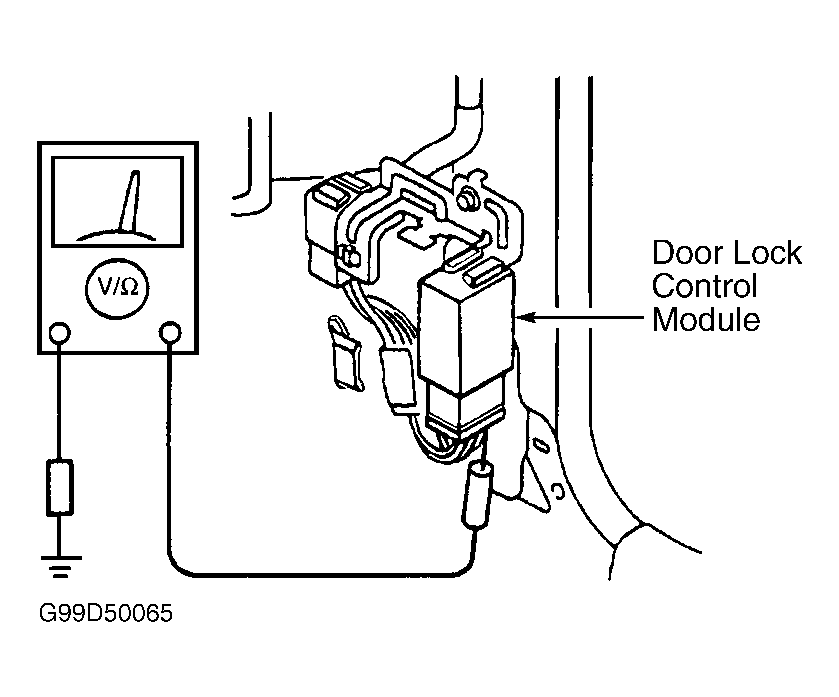

Fig 1: Locating Door Lock Control Module

Courtesy of MAZDA MOTORS CORP.

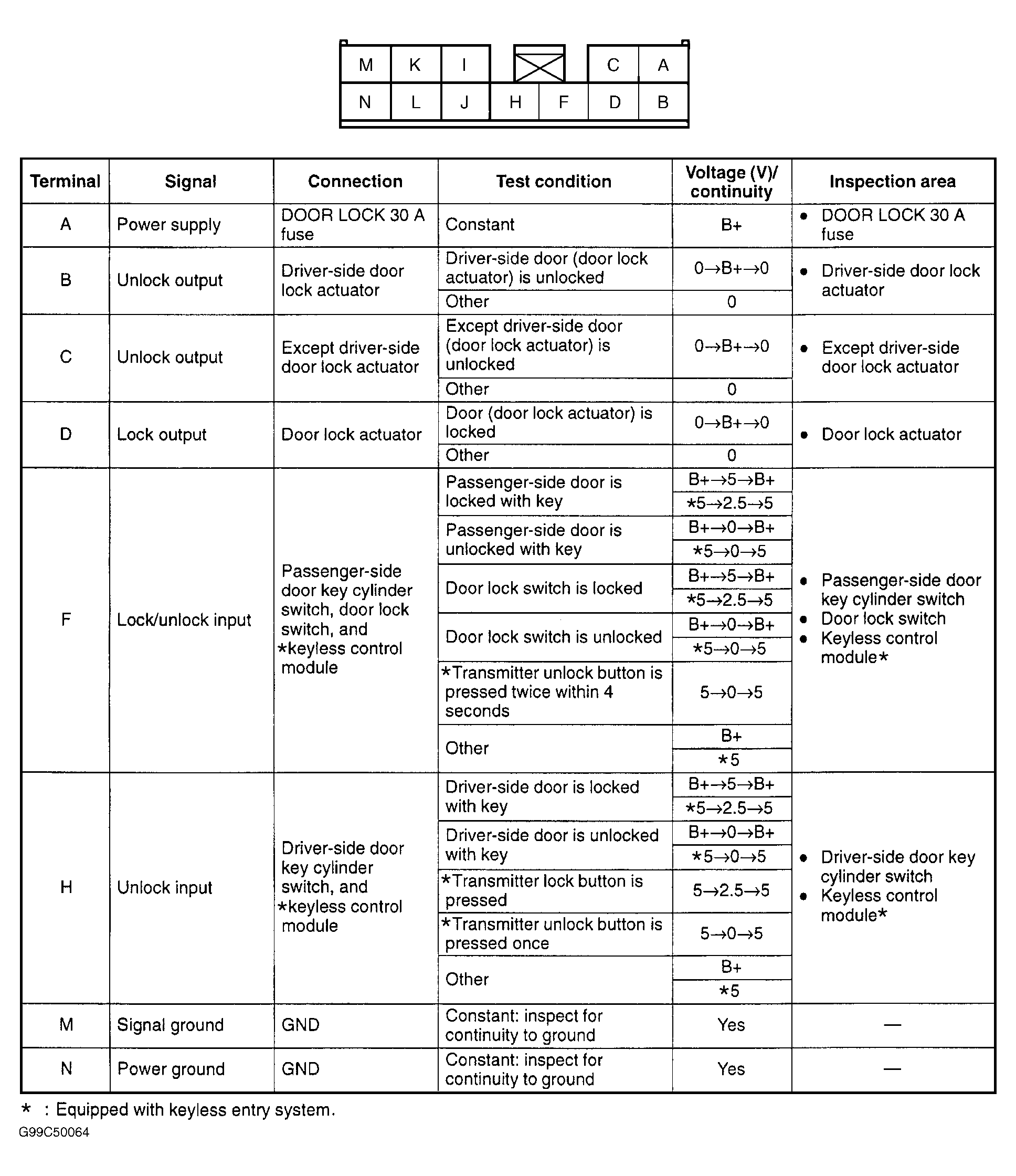

Fig 2: Testing Door Lock Control Module

Courtesy of MAZDA MOTORS CORP.
