Turn Signal Switch
WARNING: This page is about a different car, the 1999 Mazda Protege, 1999 Mazda Millenia, 1999 Mazda MX-5 Miata, and 1999 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
- Turn signal switch is part of multifunction switch assembly. Remove steering column upper and lower covers. Disconnect multifunction switch harness connectors. Remove multifunction switch (if necessary). See MULTIFUNCTION SWITCH under REMOVAL & INSTALLATION.

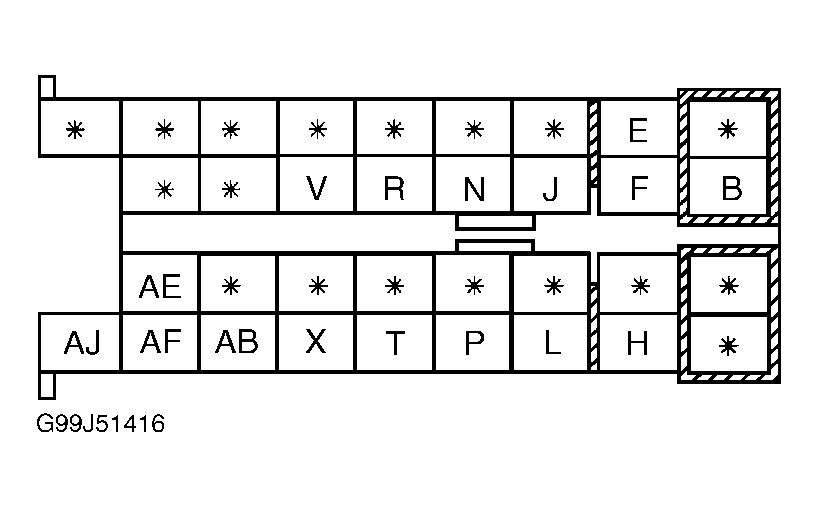

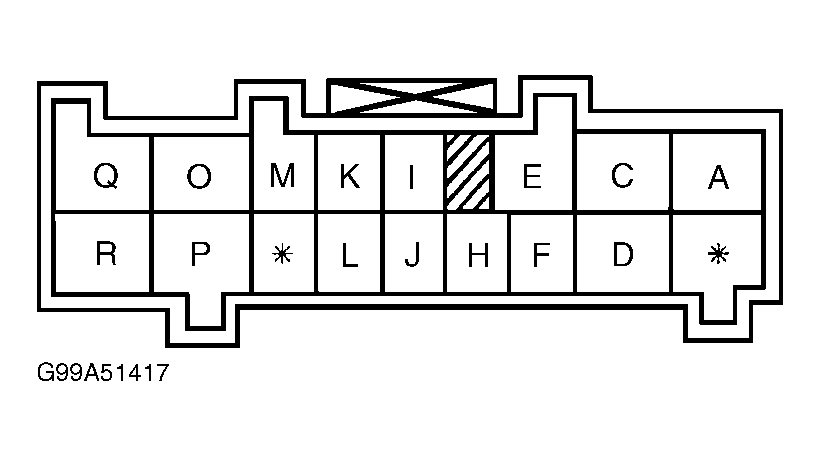

- With turn signal switch in specified position, check continuity between specified terminals of multifunction switch. See appropriate TURN SIGNAL SWITCH TEST table. See Figure, Figure, Figure or Figure
. If continuity is not as specified, replace multifunction switch.
TURN SIGNAL SWITCH TEST (MILLENIA)
| Switch Position |
Continuity Between Terminals |
| Off |
None |
| Left Turn |
"E" & "H" |
| Right Turn |
"E" & "G" |
TURN SIGNAL SWITCH TEST (MX-5 MIATA)
| Switch Position |
Continuity Between Terminals |
| Off |
None |
| Left Turn |
"H" & "P" |
| Right Turn |
"H" & "L" |
TURN SIGNAL SWITCH TEST (PROTEGE)
| Switch Position |
Continuity Between Terminals |
| Off |
None |
| Left Turn |
A & C |
| Right Turn |
C & E |
TURN SIGNAL SWITCH TEST (626)
| Switch Position |
Continuity Between Terminals |
| Off |
None |
| Left Turn |
2A & 2C |
| Right Turn |
2B & 2C |
