Power Door Lock-Link Switch

Disconnect door lock-link connector. With lock knob in locked position, check for continuity between terminals "D" and "F". See Fig 1 . Continuity should not exist. With lock knob in unlocked position, check for continuity between terminals "D" and "F". Continuity should exist. If continuity is not as specified, replace door lock-link switch.

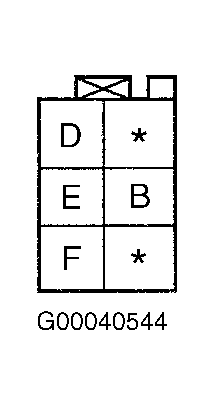

Fig 1: Identifying Door Lock Actuator & Door Lock-Link Connector Terminals

Courtesy of MAZDA MOTORS CORP.
