Washer Motor

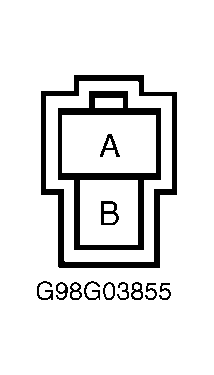

Access washer motor harness connector. See WASHER RESERVOIR under REMOVAL & INSTALLATION. Disconnect washer motor harness connector. Apply positive battery voltage to washer motor terminal "B" and ground to terminal "A". See Fig 1 . If washer motor does not operate, replace washer motor.
