Removal & Installation

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Remove the drivers side front scuff plate.
  3. Remove the drivers side front side trim.
  4. Remove in order indicated in illustration.

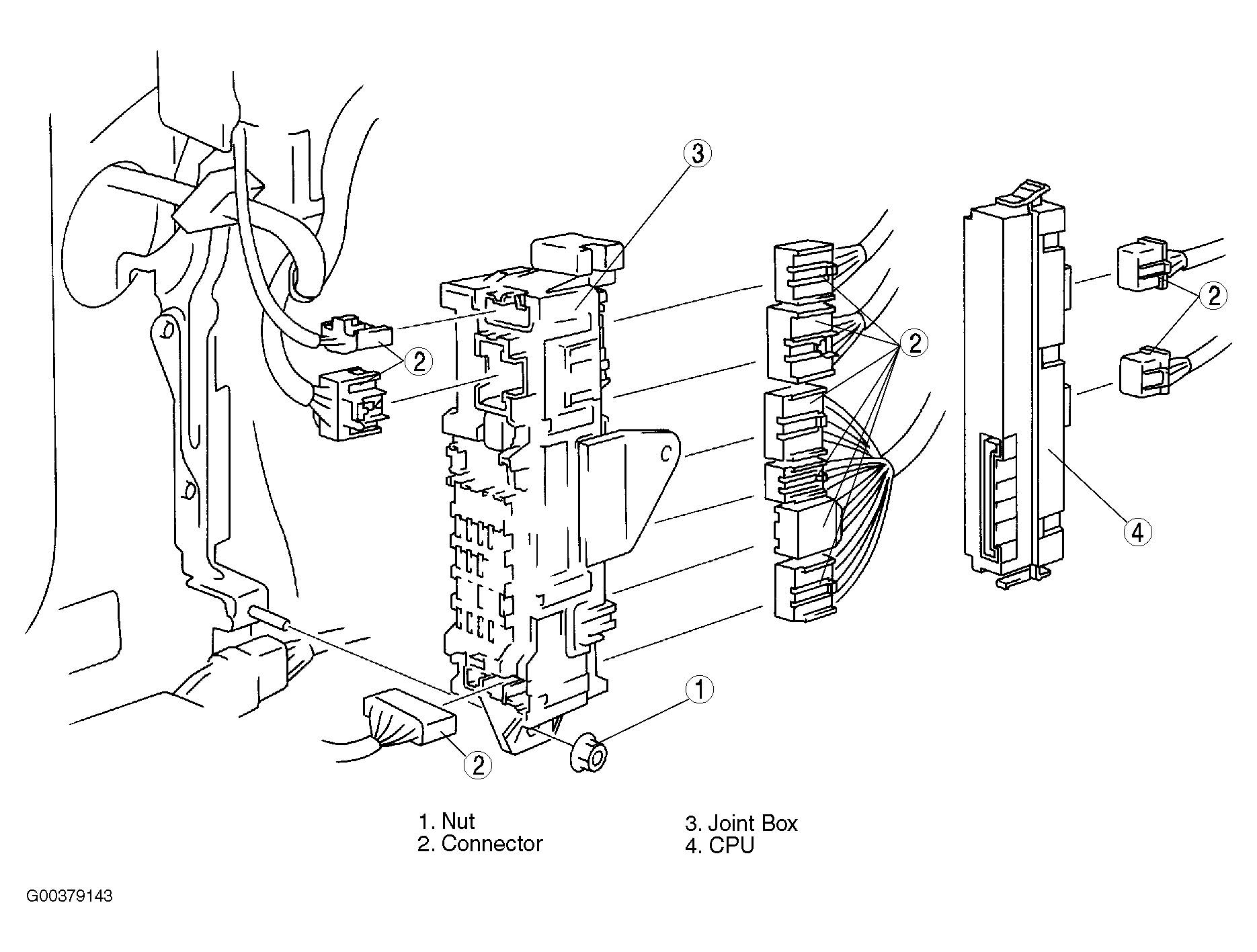

    Fig 1: Removing Central Processing Unit
    G00379143Courtesy of MAZDA MOTORS CORP.
  5. To install, reverse removal procedure.
