Rear Trailing Link (Lower) Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.
Install in the reverse order of removal.
Inspect the rear wheel alignment.
(See REAR WHEEL ALIGNMENT .)

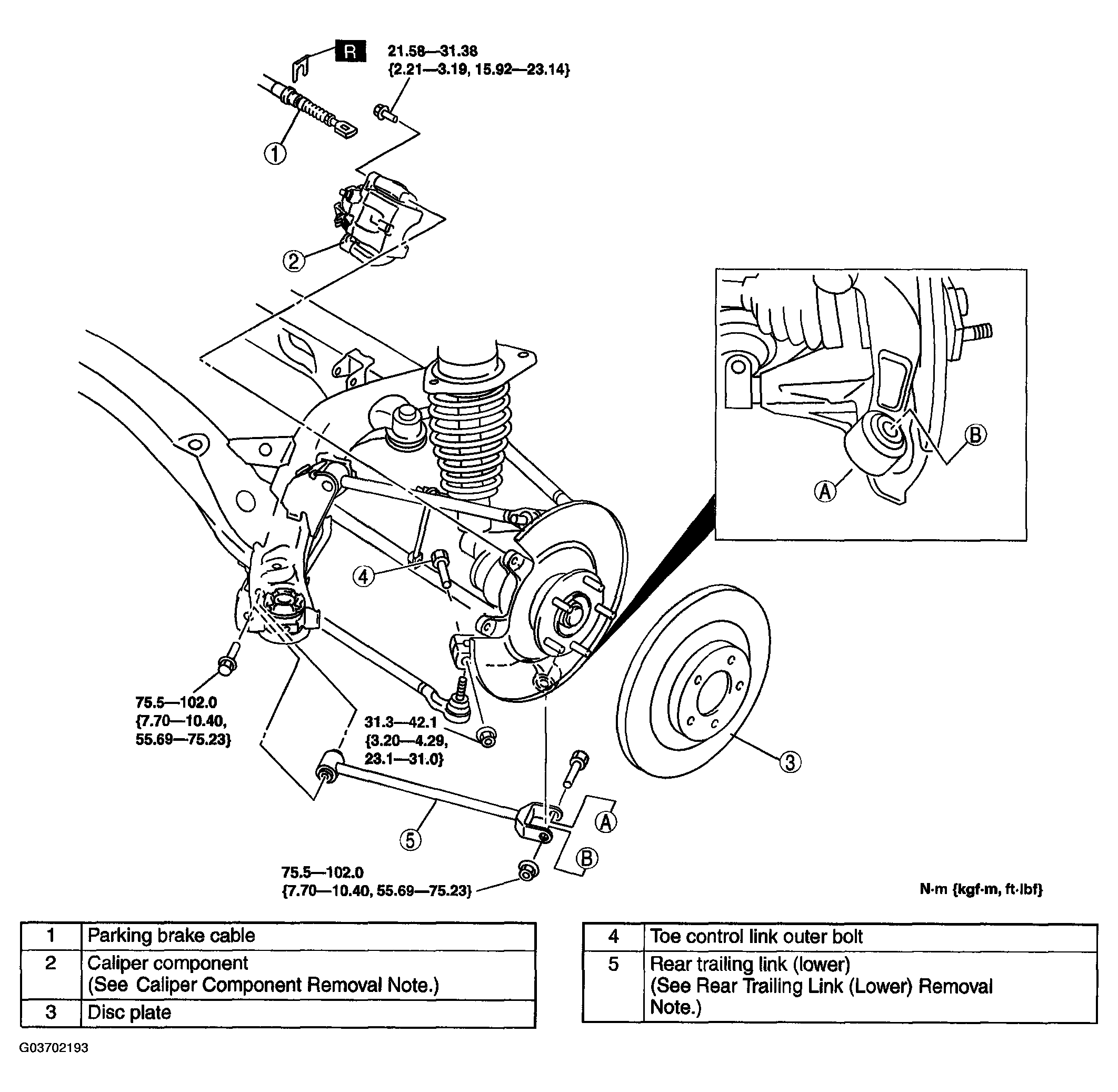

Fig 1: Rear Trailing Link Replacement Components With Torque Specifications (Lower)
Courtesy of MAZDA MOTORS CORP.
