Camber Adjustment
WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Loosen the cam nut on the lower arm.

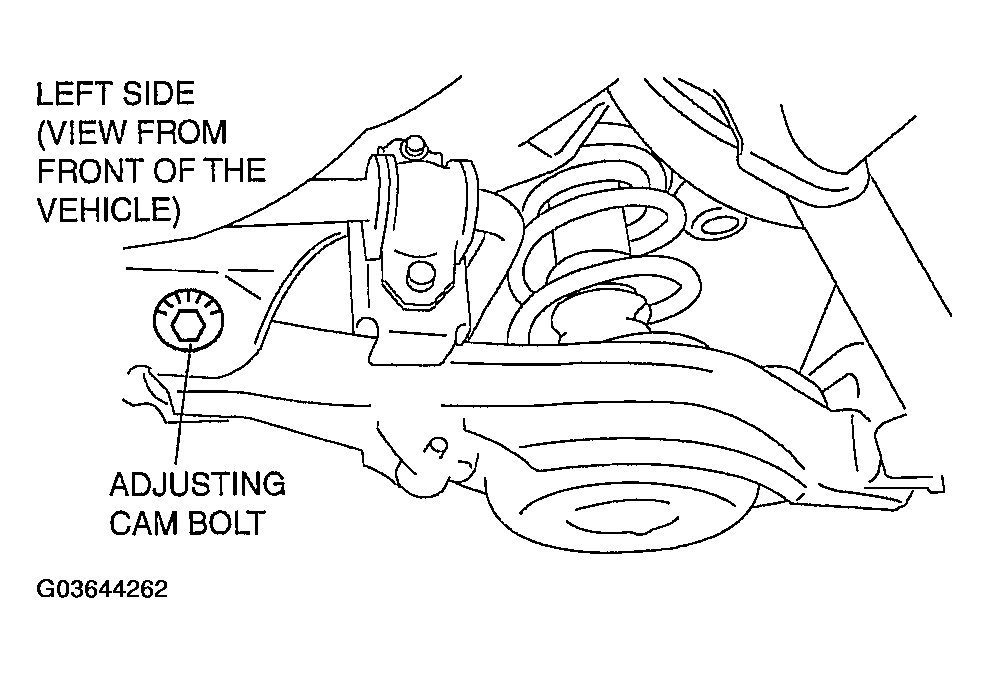

- Turn the adjusting cam bolt to provide the correct camber angles as indicated.CAMBER ADJUSTMENT
Left wheel Right wheel Positive direction Clockwise Counter-clockwise Negative direction Counter-clockwise Clockwise - Tighten the cam nut.
Tightening torque
86.2-116.6 N.m {8.79-11.88 kgf.m, 63.58-- 85.99 ft.lbf}
