Rear Scuff Plate Removal/Installation
WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear seat cushion.
- Remove the fastener.

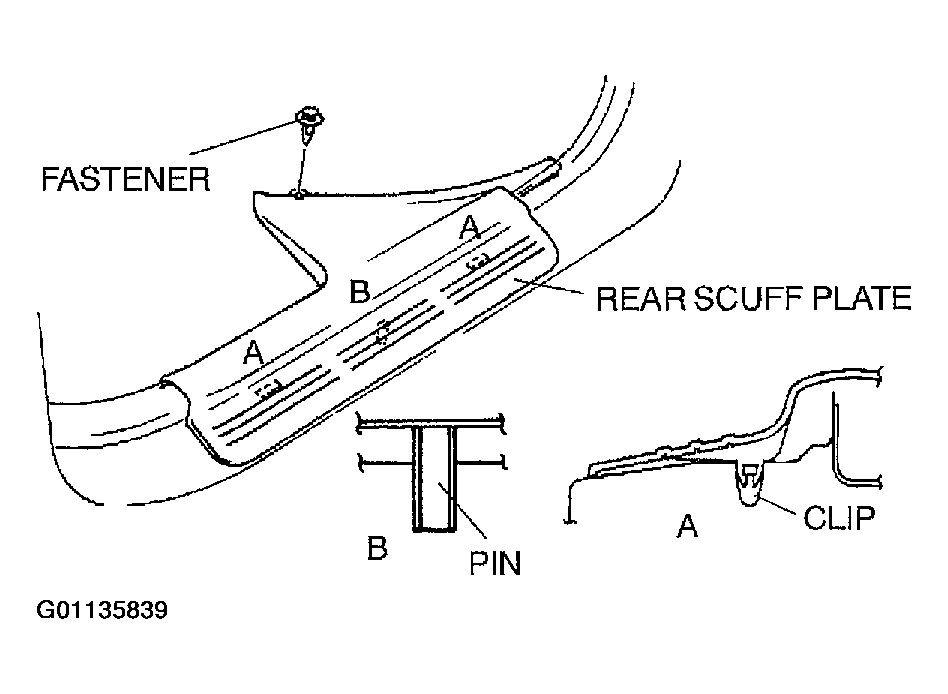

- Pull the rear scuff plate to disengage clips A and pin B from the body.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
