Valve Body Assembly: Disassembly

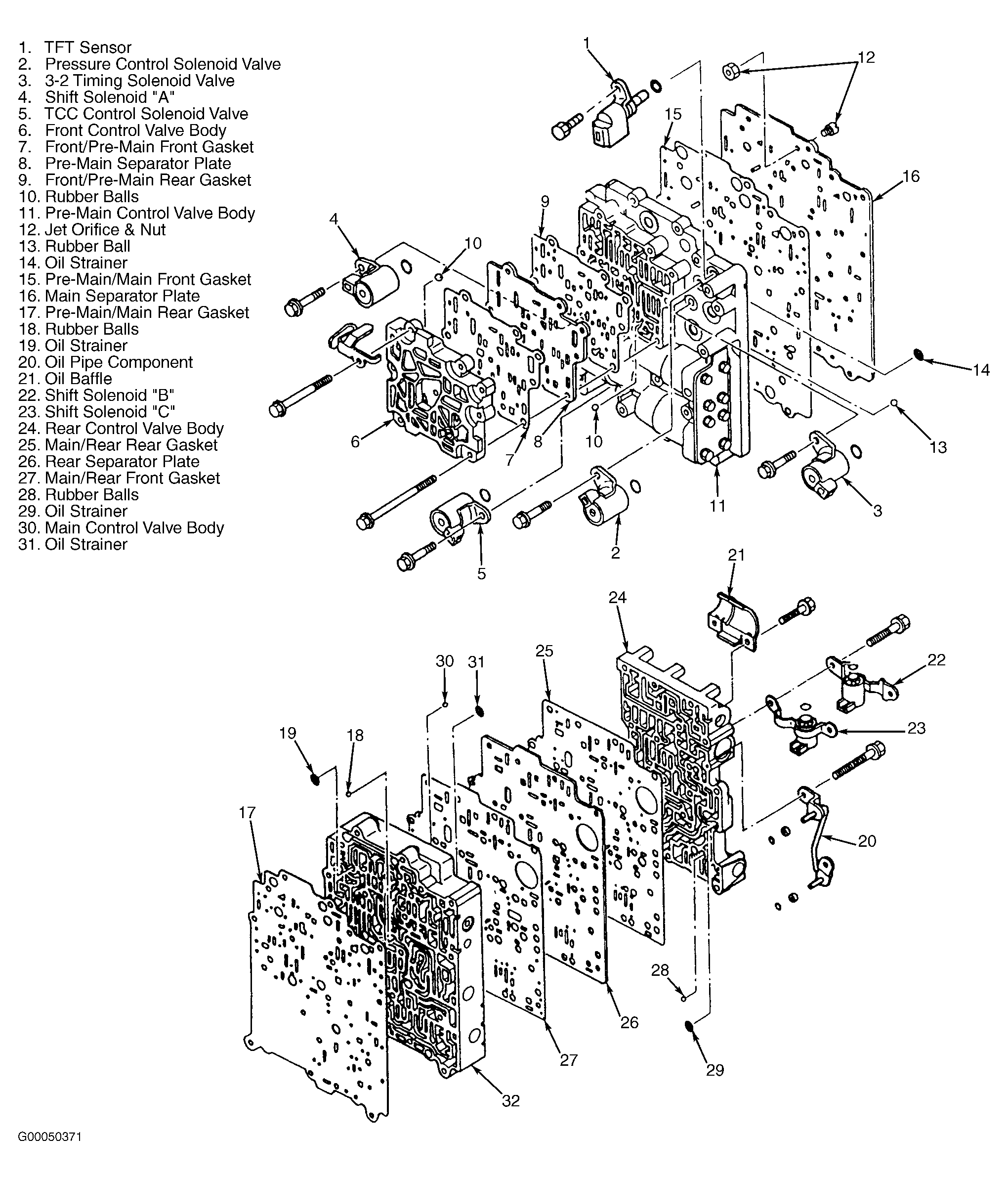

  1. Remove sensors, solenoid valves and "O" rings. Remove front valve body, pre-main separator plate and pre-main separator plate gaskets. Remove front/pre-main gaskets, pre-main separator plate and pre-main separator plate gaskets. See Figure and Figure .
  2. Locate and remove rubber balls from front and pre-main valve body. Remove pre-main valve body, main separator plate and main separator plate gaskets.
  3. Remove pre-main/main gaskets and main separator plate from pre-main valve body. Remove jet orifices and nuts from main separator plate. Locate and remove rubber balls and oil strainer from pre-main valve body.
  4. Locate and remove rubber balls and oil strainer from main valve body. Turn assembly over and remove oil pipe, baffle and shift solenoids. Remove rear separator plate and rear separator plate gaskets from main valve body.
  5. Remove main/rear gaskets and separator plate from rear valve body. Locate and remove rubber balls and oil strainer from rear valve body. Locate and remove rubber balls and oil strainer from main valve body.

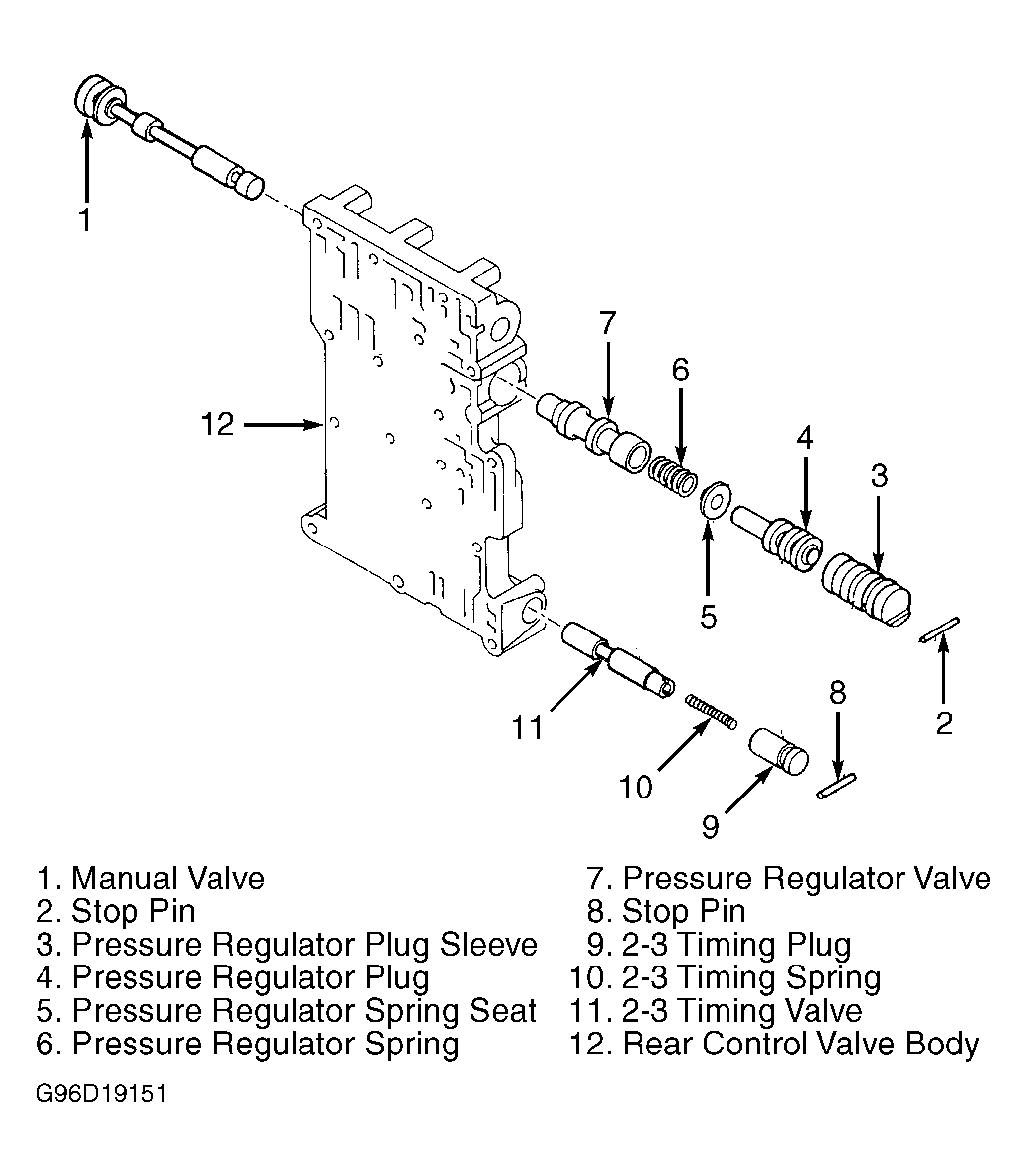

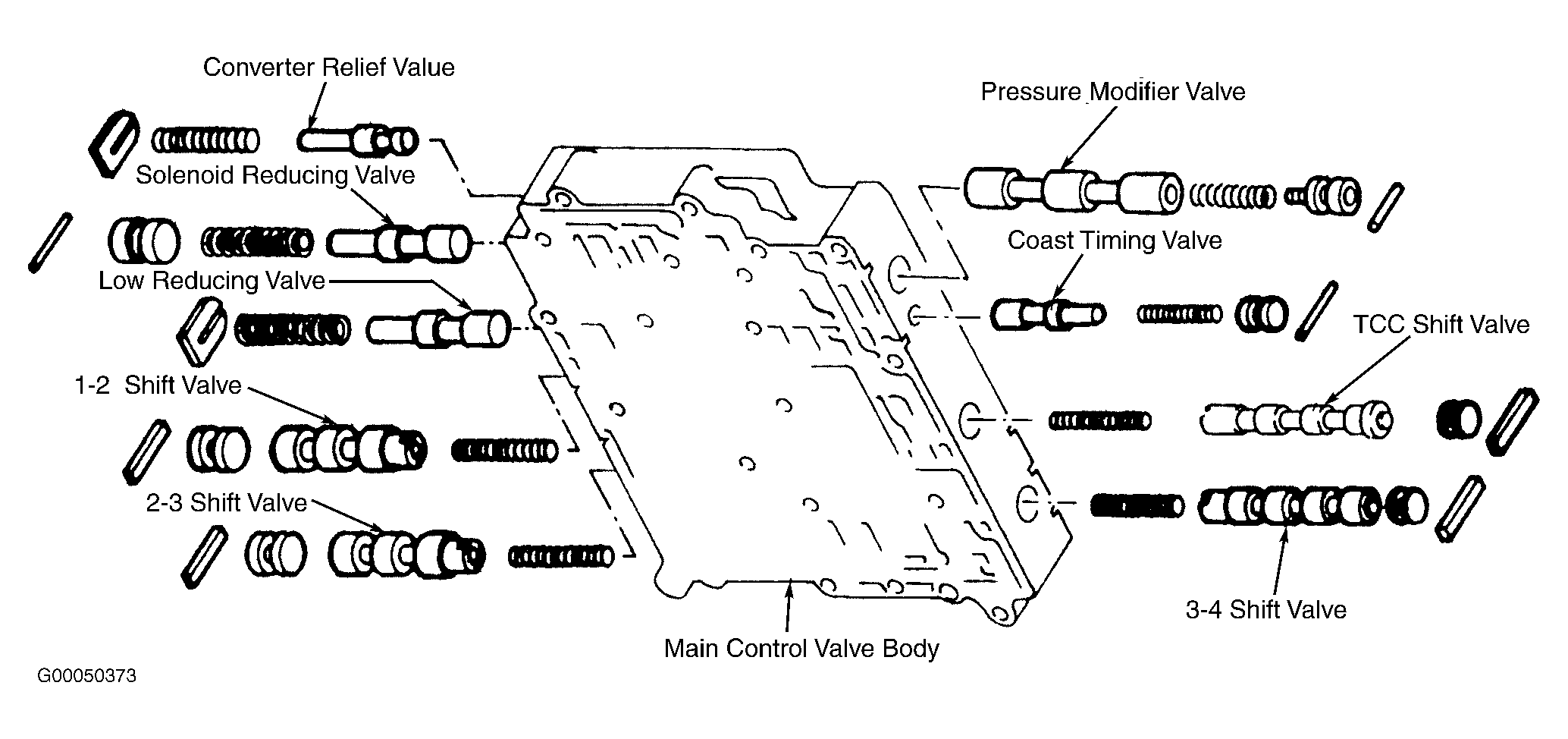

  6. Disassemble pre-main body, main body and rear body valve assemblies. See Figure , Figure and Figure .
